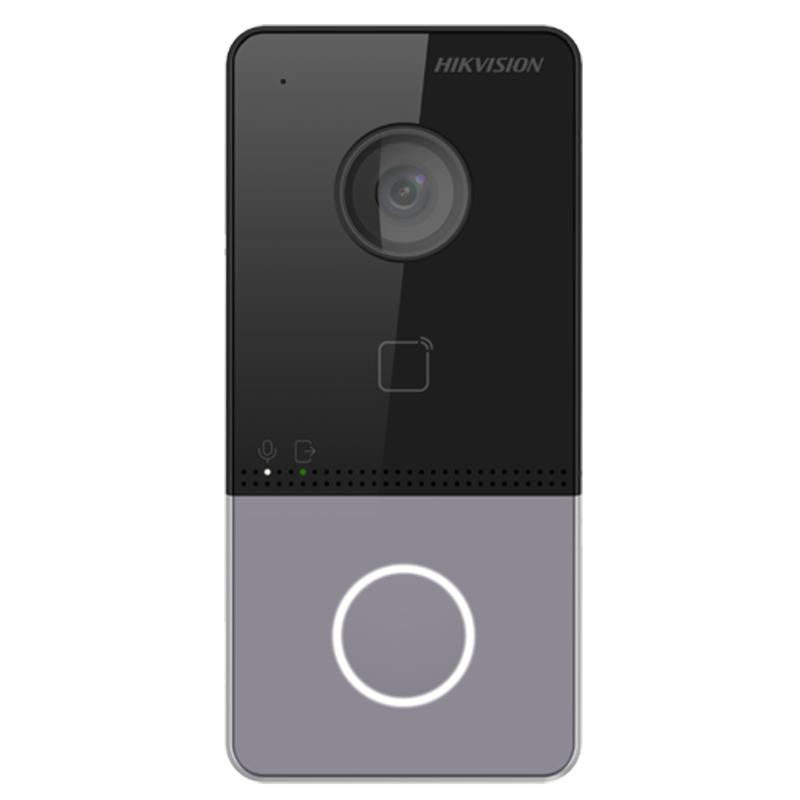

HIKVISION DS-KV6113-PE1(C) Plastic Villa Door Station

POE Villa Door Station

• 2 MP camera with IR supplement
• One-touch button calling design for easier calls
• Built-in card reader module
• Standard PoE power supply
• IP65 protection level
• Convenient Hik-Connect APP mobile control

• Specification

  • System parameters

  • Display parameters

  • Video parameters

  • Audio parameters

  • Capacity

  • Network parameters

  • Device interfaces

  • General

  • System parameters
  • Operation systemLinux
  • ROM32 MB
  • RAM256 MB
  • ProcessorEmbeded high performance processor

  • Display parameters
  • Screen size/
  • Operation method/
  • Type/
  • Resolution/

  • Video parameters
  • Lens1
  • Resolution

    Main stream: 1920 × 1080p

    Sub stream: 640 × 480p

  • FOVHorizontal: 131° Vertical: 78°
  • Wide dynamic range (WDR)Support 120 dB
  • Supplement lightIR light, up to 3 m
  • Video compression standardH.264

  • Audio parameters
  • Audio input1 built-in omnidirectional microphone
  • Audio compression standardG.711 U
  • Audio output1 built-in loudspeaker
  • Audio compression bitrate64 Kbps
  • Audio qualityNoise suppression and echo cancellation
  • Volume adjustmentAdjustable

  • Capacity
  • User capacity2000
  • Face capacity/
  • Card capacity10000

  • Network parameters
  • Network protocolTCP/IP, RSTP
  • Wi-Fi/
  • Bluetooth/
  • 3G/4G/

  • Device interfaces
  • Alarm input4
  • Network interface1 RJ-45, 10/100 Mbps self-adaptive
  • TAMPER1
  • Exit button1
  • RS-4851
  • USB/
  • Wiegand/
  • TF card/
  • Alarm output/
  • Lock control1 relay, Max. 30 VDC 2 A
  • Door contact input1

  • General
  • Button1 physical button
  • InstallationSurface mounting
  • Indicator2
  • Weight

    Net weight: 0.190 kg

    Gross weight: 0.414 kg

  • Protective levelIP65
  • Working temperature-40 °C to 55 °C(-40 °F to 131 °F)
  • Working humidity10% to 95% (no-condensing)
  • Dimension (W × H × D)138 mm × 65 mm × 27 mm (5.4″ × 2.6″ × 1.1″)
  • Battery/
  • Application environmentOutdoor
  • Power consumption＜ 10 W
  • LanguageEnglish, French, Portuguese (Brazil), Spanish, Russian, German, Italian, Polish, Arabic, Turkish, Vietnamese, Hungarian, Dutch, Romanian, Czech, Bulgarian, Ukrainian, Croatian, Serbian, Portuguese, Slovak
