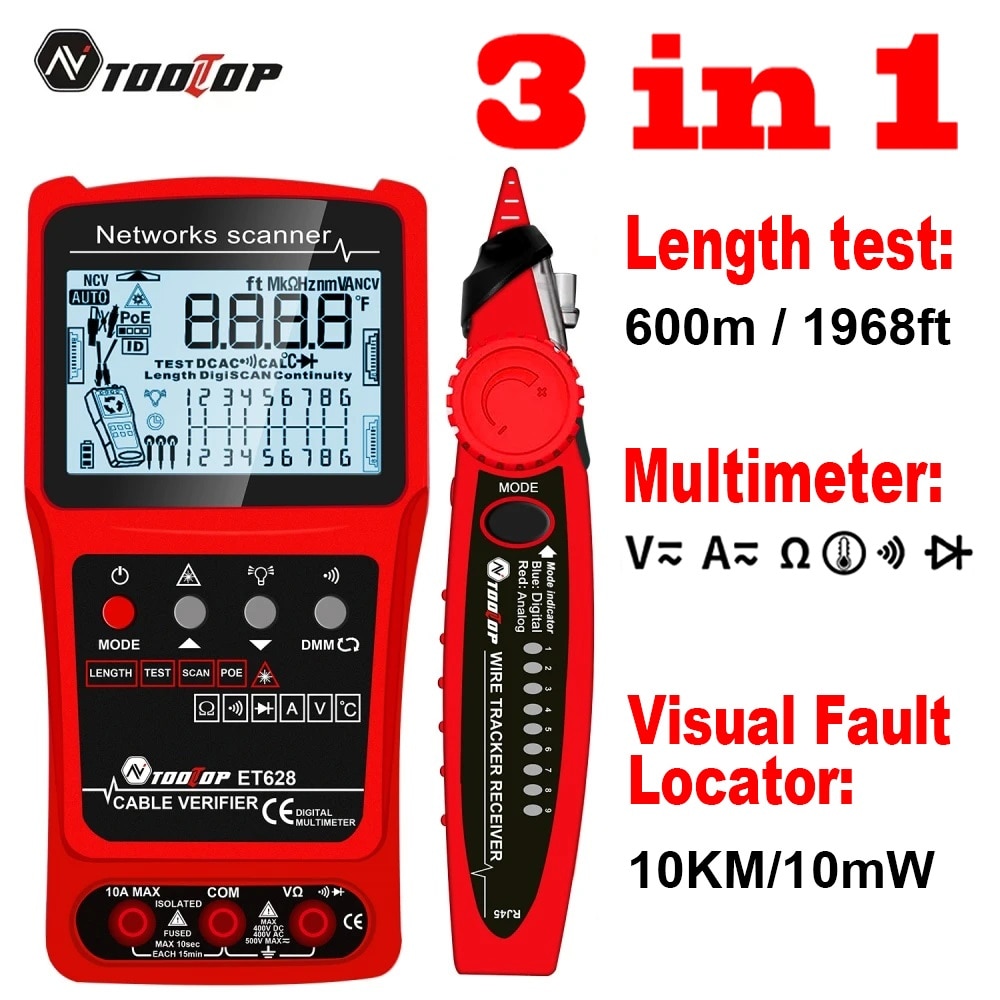

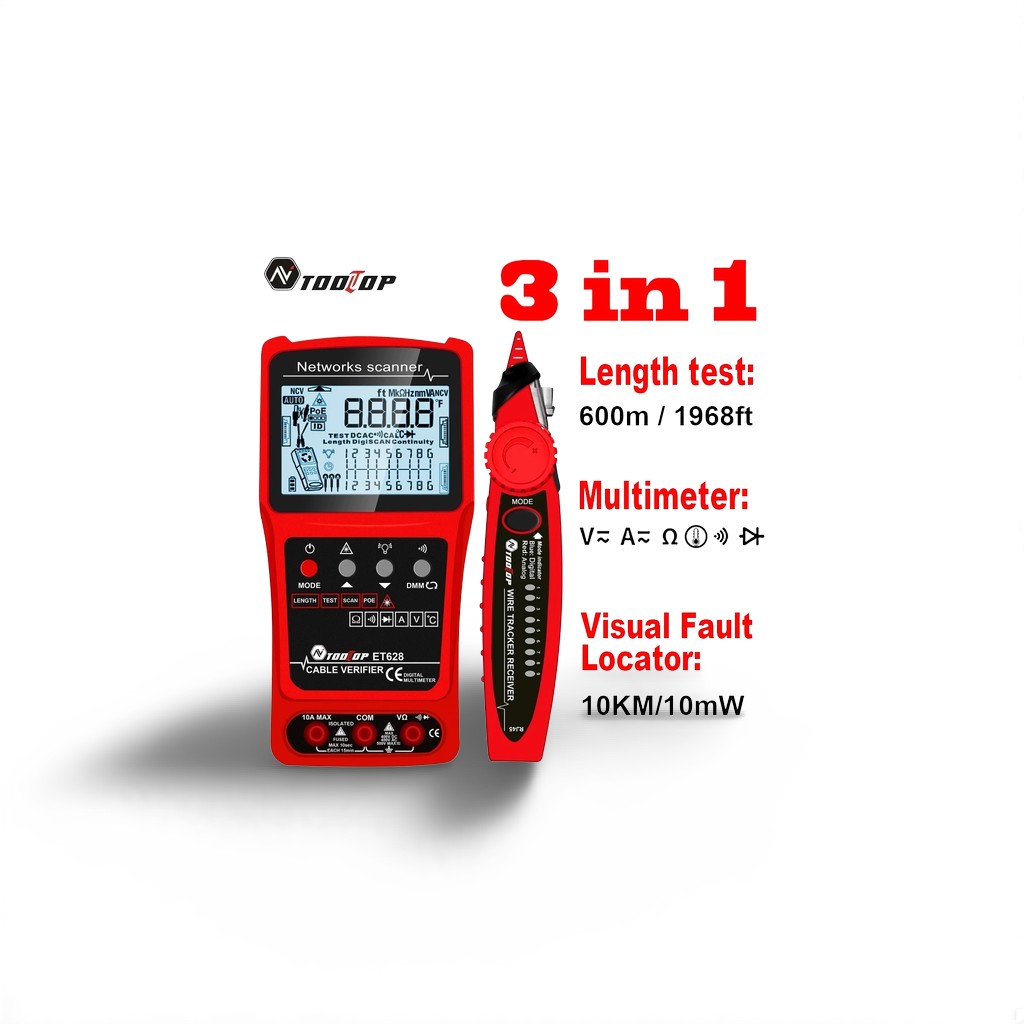

TOOLTOP Network Cable Tester 10KM Visual Fault Locator Multimeter 3 in 1 LAN Length Measure Anti-noise Line Tracker POE Test









Cable Length Measure Method:

Long press the power button to turn on the device and enter the length measurement function; Press the “V” button to select the type of Cable, which is



8-core network cable – choose 1/2 3/6 4/5 7/8

4-core network cable – choose 1/2 3/6

Telephone Line – choose 4/5

Video cable – choose 1/2



Measurement accuracy: 2% ± 1M

Measurement range: 2-600m (7ft-1968ft)

Supports cable calibration, cable length need >5m when calibration



Note: When measuring the length, the other end of the line must be suspended and cannot be connected to any equipment: connecting any powered equipment to the other end of the line may burn the product.





Forget the traditional products, this innovative device gives you 3 functions in 1 !!!



A cable tracker that can measure up to 600/1968ft of LAN length

A multimeter, a 10KM visual fault locator(RED LASER). AMAZING!!!









This will greatly improve your work efficiency and it comes with a cloth bag for easy portability.



Don’t miss it, click the store coupon above and shop now!





Features:

[Cable length measurement]: Measure and display the length and condition of network cables, telephone lines, coaxial video cables and other metal cables up to 600m/1968ft with easy calibration and operation.



[Cable Mapping]: Test the connection characteristics of network cables, telephone lines, and other multi-core metal lines. Detect open circuit, line sequence, short circuit, crossover, etc.



[Cable tracing]: Identify the target cable from lots of cables with the cable tracing (SCAN) function.



[Visual fault locator(RED LASER)]: Quickly and easily locate problem areas in fiber cables, such as bends, breaks, and bad connectors, by emitting visible red laser light that leaks out from the fiber damage.



[Noise-free tracing]: Achieve precise and noise-free cable tracing with the advanced digital technology that eliminates interference.



[Multimeter]: Perform multimeter functions with DC/AC current and voltage, resistance, continuity, diode, temperature, NVC test (only for Model ET624 ET628).



[PoE Test]:Test POE switch power network cable sequence number, positive and negative poles, voltage value with the PoE test function.



[Sensitivity and sound level adjustment]: Adjust sensitivity and sound level according to your needs. Enjoy long-lasting use with the built-in rechargeable lithium battery.

Specifications:

Basic Functions
Model	ET624	ET626	ET628
Visual fault locator	×
Network Cable Length Measure	600M	600M	600M
Analogue Tracing
Continuity	Multimeter		Multimeter
Switch Tracing(w/PoE)
Cable Mapping
Switch indicators flashing
Noisy Free Digital Tracing	Digital/Vibration	Digital	Digital/Vibration
Voltage Testing	Multimeter		Multimeter
PoE Voltage Measuring
Remote ID Mapping	Optional	Optional	Optional
Analogue Bargraph
Operation indicator
LCD Size	68*45mm	68*45mm	68*45mm
Other Functions	Main Body flashlight, multimeter input jack indicator,LCD display, white flashlight, analogue tracing sound adjustable,digital tracing sensitivity adjustable, low battery indicator, white backlight, energy saving, tracing distance 3km, analogue tracing signal selectable.
Multimeter Functions		×
DC Voltage	400mV~1000V	×	400mV~1000V
AC Voltage	4V~400V	×	4V~400V
DC Current	1.0A~10.0A	×	1.0A ~ 10.0A
AC Current	1.0A ~ 10.0A	×	1.0A ~ 10.0A
Resistance	200Ω ~20MΩ	×	200Ω ~20MΩ
Continuity	< 50Ω buzzers beeps	×	< 50Ω buzzers beeps
Diode		×
Temperature(k-type)	-20~1000°C	×	-20~1000°C
BNC Cable Length Measure
Network Cable Short/Open Circuit Test
Powered by	Main Body:1250mA/H rechargeable Lithium Battery(inlcuded)	Receiver:9V Battery(not included )
Package	Gift Box/Manual/Carrying Testleads/k-type Temperature Probe(Only ET624/ET628)



Package list :

1 x Transmisson

1 x Receiver

1 x Gift box

1 x Manual

1 x RJ45 Cable

1 x Carrying Bag

1 x Testieads k-type Temperature Probe(only ET624 / ET628)
