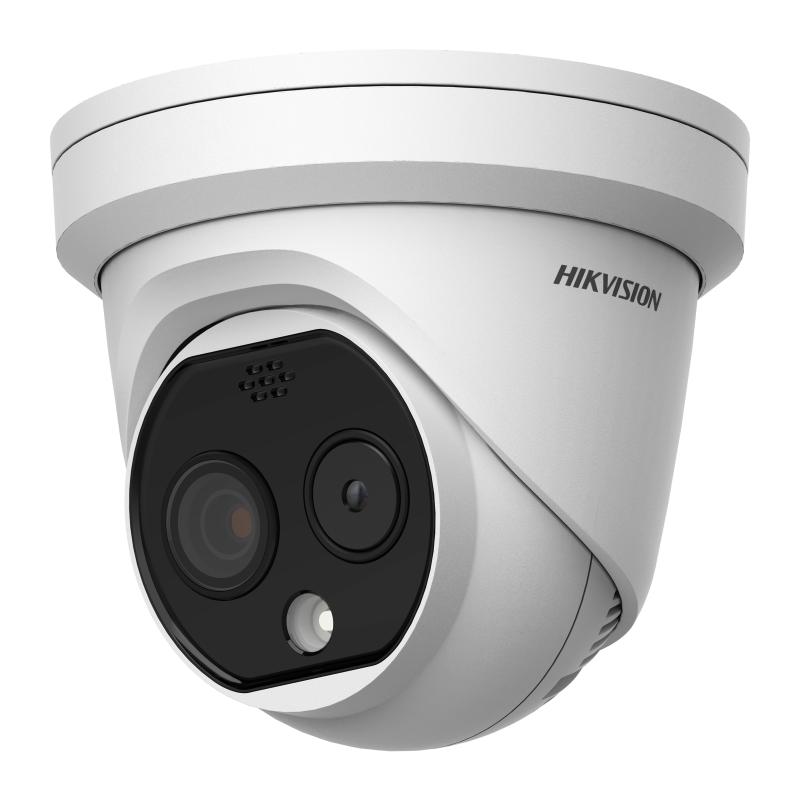

Thermal & Optical Bi-Spectrum Network Turret Camera DS-2TD1217-3/QA Hikvision

Thermal & Optical Bi-Spectrum Network Turret Camera

• 160 × 120 resolution, 17 μm, VOx UFPA, NETD < 40 mK (25 °C, F# = 1.1)
• High accuracy temperature exception alarm, -20 °C to 150 °C (-4 °F to 302 °F) ± 8 °C (±14.4 °F)
• Image processing technology: linear, histogram, self-adaptive thermal AGC mode, DDE, 3D DNR
• Support smoking detection algorithm
• Support sun-reflection filter
• High quality detector with 10 years guarantee

•

  Specification

  • Thermal Module

  • Optical Module

  • Image Effect

  • Illuminator

  • Audible and Visual Alarm

  • Smart Function

  • Video and Audio

  • Network

  • Interface

  • General

  • Detection Range Table/Smart Function Range

  • Thermal Module
  • Image SensorVanadium Oxide Uncooled Focal Plane Arrays
  • Resolution160 × 120
  • Pixel Pitch17 μm
  • Spectral Range8 μm to 14 μm
  • NETD< 40 mK (@ 25 °C, F# = 1.1)
  • Focal Length3.1 mm
  • IFOV5.48 mrad
  • Field of View50.0° × 37.2° (H × V)
  • Min. Focusing Distance0.2 m
  • ApertureF1.1
  • Digital Zoom× 2, × 4

  • Optical Module
  • Image Sensor1/2.7″ Progressive Scan CMOS
  • Resolution2688 × 1520
  • Min. Illumination0.0089Lux @(F1.6,AGC ON) ,0 Lux with IR
  • Shutter Speed1 s to 1/100,000 s
  • Focal Length4 mm
  • Field of View84.0° × 44.8° (H × V)
  • Aperture (Range)F1.6
  • WDR120 dB

  • Image Effect
  • Target ColorationYes. Supported in white hot and black hot mode.

  • Illuminator
  • IR DistanceUp to 15 m
  • IR Intensity and AngleAutomatically adjusted

  • Audible and Visual Alarm
  • White Light RangeUp to 30 m
  • Visual AlarmYes. White light alarm with adjustable flashing frequencies
  • Audio alarm

    Yes, for two types of audible alarm (VCA, Temperature)

    2 preset voice alerts (one for each)

    6 importable user-defined voice alerts (4 options shared in the two types)

  • Smart Function
  • VCA4 VCA rule types (line crossing, intrusion, region entrance, and region exiting), up to 8 VCA rules in total.
  • Temperature Measurement3 temperature measurement rule types, 21 rules in total (10 points, 10 areas, and 1 line)
  • Temperature Range– 20 °C to 150 °C (- 4 °F to 302 °F)
  • Temperature Accuracy± 8 °C (± 14.4 °F)
  • General FunctionFire detection, smoking detection, sun-reflection filter,

  • Video and Audio
  • Main Stream

    Thermal:

    25 fps (1280 × 720, 704 × 576, 640 × 480, 352 × 288, 320 × 240)

    Optical:

    50 Hz: 25 fps (2688 × 1520, 1920 × 1080, 1280 × 720)

    60Hz: 30 fps (2688 × 1520, 1920 × 1080, 1280 × 720)

  • Sub-stream

    Thermal:

    25 fps (704 × 576, 352 × 288, 320 × 240)

    Optical:

    50 Hz: 25 fps (704 × 576, 352 × 288)

    60 Hz: 30 fps (704 × 480, 352 × 240)

  • Video Compression

    Main Stream: H.265/H.264

    Sub-Stream: H.265/H.264/MJPEG

  • Audio CompressionG.722.1/G.711ulaw/G.711alaw/MP2L2/G.726/PCM

  • Network
  • ProtocolsIPv4/IPv6, HTTP, HTTPS, 802.1x, QoS, FTP, SMTP, UPnP, SNMP, DNS, DDNS, NTP, RTSP, RTCP, RTP, TCP, UDP, IGMP, ICMP, DHCP, PPPoE,TLS
  • Network StorageMicroSD/SDHC/SDXC card (up to 256 G) local storage, NAS (NFS, SMB/CIFS), Auto Network Replenishment (ANR)
  • APIISAPI, HIKVISION SDK,ISUP, and third-party management platform, Open Network Video Interface,ONVIF (Profile S, Profile G, Profile T)
  • Simultaneous Live ViewUp to 20 channels
  • User/Host levelUp to 32 users, 3 levels: Administrator, Operator, User
  • SecurityUser authentication (ID and PW), MAC address binding, HTTPS encryption, IEEE 802.1x(EAP-MD5, EAP-TLS), access control, IP address filtering
  • ClientiVMS-4200, Hik-Connect
  • Web Browser

    Live view (plug-in allowed) : Internet Explorer 11

    Live view (plug-in free) : Chrome 57.0 +, Firefox 52.0 +

    Local service : Chrome 57.0 +, Firefox 52.0 +

  • Interface
  • Alarm Input1, alarm input (0-5 VDC)
  • Alarm Output1, alarm output (alarm response actions configurable)
  • Alarm ActionSD recording/Relay output/Smart capture/FTP upload/Email linkage
  • Audio Input

    1, 3.5 mm Mic in/Line in interface

    Line input: 2 – 2.4 V [p-p], output impedance: 1 KΩ ± 10%

  • Audio OutputLinear level, impedance: 600 Ω
  • Communication Interface

    1, RJ45 10 M/100 M Self-adaptive Ethernet interface.

    1, RS-485 interface (half duplex)

  • General
  • Web Client Language32 languages English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chinese, Thai, Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil)
  • Power Supply

    12 VDC ± 25%, φ 5.5 mm coaxial power plug

    PoE (802.3af, class 3)

  • Power Consumption

    12 VDC ± 25%: 0.5 A, Max 6 W

    PoE (802.3af, class 3): 42.5 V to 57 V, 0.14 A to 0.22 A, Max 6.5 W

  • Working Temperature/Humidity

    Temperature: – 40 °C to 65 °C (- 40 °F to 149 °F)

    Humidity: 95% or less

  • Protection Level

    IP67 Standard

    TVS 6000V lightning protection, surge protection, voltage transient protection

  • Dimensions138.3 mm × 138.3 mm × 123.1 mm (5.45″ × 5.45″ × 4.85 “)
  • Weight940 g (2.07 lb)

  • Detection Range Table/Smart Function Range
  • VCA Range for Humans15 m
  • VCA Range for Vehicles45 m
