TandemVu 8-inch Panoramic 4 MP 42X DarkFighter Network Speed Dome Hikvision DS-2SF8C442MXS-DLW(24F0)(P3)

EOL

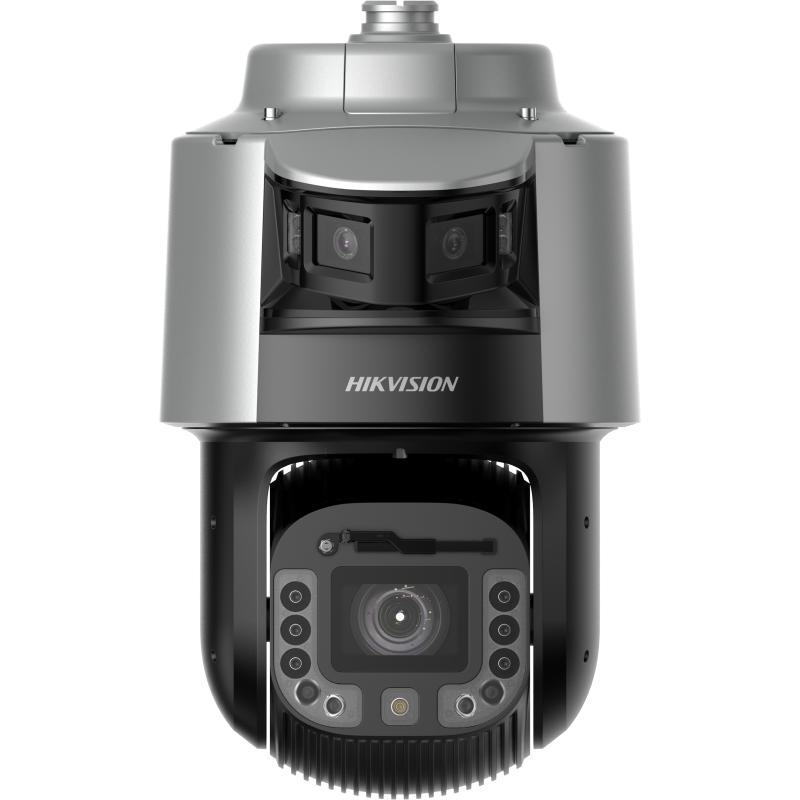

TandemVu 8-inch Panoramic 4 MP 42X DarkFighter Network Speed Dome

• Captures a large area and great details at the same time
• High quality imaging with 4 MP resolution for both bullet channel and PTZ channel
• 24/7 colorful imaging and excellent low-light performance with DarkFighter technology
• Bullet channel tilt adjustable from 7° to 17°
• Secures an expansive area with 42 × optical zoom and 16 × digital zoom
• Expansive night view with up to 30 m white light distance and 300 m IR distance
• Supports deep learning functions
• Water and dust resistant (IP67) and vandal resistant (IK10)

•

  Specification

  • Camera

  • Lens

  • Illuminator

  • PTZ

  • Video

  • Audio

  • Network

  • Image

  • Supplement Detection

  • Interface

  • Event

  • Deep Learning Function

  • General

  • Approval

  • Camera
  • Image Sensor[Bullet channel] 1/1.8″ Progressive Scan CMOS, [PTZ channel] 1/1.8″ Progressive Scan CMOS
  • Min. Illumination

    [Bullet channel] Color: 0.0005 Lux @ (F1.0, AGC ON), B/W: 0.0001 Lux @ (F1.0, AGC ON), 0 Lux with light,

    [PTZ channel] Color: 0.0005 Lux @ (F1.2, AGC ON), B/W: 0.0001 Lux @ (F1.2, AGC ON), 0 lux with IR

  • Shutter Speed1/1 s to 1/30000 s
  • Slow ShutterYes
  • Day & Night[Bullet channel] Color, [PTZ channel] IR cut filter
  • Zoom[PTZ channel] 42 × optical, 16 × digital
  • Max. Resolution[Bullet channel] 3840 × 1080, [PTZ channel] 2560 × 1440

  • Lens
  • FocusAuto,semi-auto,manual
  • Focal Length[Bullet channel] 2.8 mm, [PTZ channel] 5.9 to 247.8 mm
  • Zoom Speed[Bullet channel] No, [PTZ channel] approx. 5.5 s
  • FOV[Bullet channel] horizontal field of view: 190° ± 5°, vertical field of view: 50° ± 5°, diagonal field of view: 198° ± 5°, [PTZ channel] horizontal field of view: 56.6° to 3.1°, vertical field of view: 34.2° to 1.1°, diagonal field of view: 67.1° to 2.3°
  • Aperture[Bullet channel] F1.0, [PTZ channel] F1.2

  • Illuminator
  • Supplement Light Range[Bullet channel] white light: up to 30 m, [PTZ channel] IR: up to 300 m
  • Smart Supplement LightYes

  • PTZ
  • Movement Range (Pan)[PTZ channel] 0° to 360°
  • Movement Range (Tilt)[Bullet channel] 7° to 17°, [PTZ channel] -20° to 90°
  • Pan Speed[PTZ channel] pan speed: configurable from 0.1° to 160°/s, preset speed: 240°/s
  • Tilt Speed[Bullet channel] tilt speed configurable,[PTZ channel] tilt speed: configurable from 0.1° to 120°/s, preset speed 200°/s
  • Proportional Pan[Bullet channel] No, [PTZ channel] Yes
  • Presets300
  • Patrol Scan8 patrols, up to 32 presets for each patrol
  • Pattern Scan4 pattern scans, record time over 10 minutes for each scan
  • Power-off MemoryYes
  • Park ActionPreset,pattern scan,patrol scan,auto scan,tilt scan,random scan,frame scan,panorama scan
  • 3D PositioningYes
  • PTZ Status DisplayYes
  • Preset FreezingYes
  • Scheduled TaskPreset,pattern scan,patrol scan,auto scan,tilt scan,random scan,frame scan,panorama scan,dome reboot,dome adjust,aux output

  • Video
  • Main Stream[Bullet channel] 50 Hz: 25 fps (3840 × 1080), 60 Hz: 24 fps (3840 × 1080),[PTZ channel] 50 Hz: 25 fps (2560 × 1440, 1920 × 1080, 1280 × 960, 1280 × 720), 60 Hz: 30 fps (2560 × 1440, 1920 × 1080, 1280 × 960, 1280 × 720)
  • Sub-Stream[Bullet channel] 50 Hz: 25 fps (1920 × 536), 60 Hz: 24 fps (1920 × 536),[PTZ channel] 50 Hz: 25 fps (704 × 576, 640 × 480, 352 × 288), 60 Hz: 30 fps (704 × 480, 640 × 480, 352 × 240)
  • Third Stream[Bullet channel] No,[PTZ channel] 50 Hz: 25 fps (1920 × 1080, 1280 × 960, 1280 × 720, 704 × 576, 640 × 480, 352 × 288), 60 Hz: 30 fps (1920 × 1080, 1280 × 960, 1280 × 720, 704 × 480, 640 × 480, 352 × 240)
  • Video Compression

    Main stream: H.265+/H.265/H.264+/H.264,

    Sub-stream: H.265/H.264/MJPEG,

    Third stream: H.265/H.264/MJPEG

  • Video Bit Rate32 Kbps to 16 Mbps
  • H.264 TypeBaseline profile,Main profile,High profile
  • H.265 TypeMain profile
  • Scalable Video Coding (SVC)H.264 and H.265 encoding
  • Region of Interest (ROI)8 fixed regions for each stream

  • Audio
  • Audio CompressionG.711,G.722.1,G.726,MP2L2,PCM,AAC
  • Audio Bit Rate32 to 192 Kbps (MP2L2),16 to 64 Kbps (AAC)
  • Audio Sampling Rate8 kHz,16 kHz,32 kHz,48 kHz
  • Environment Noise FilteringYes

  • Network
  • APIISUP,ISAPI,SDK,Open Network Video Interface (Profile S, Profile G, Profile T)
  • Network StorageNAS (NFS, SMB/CIFS),auto network replenishment (ANR)
  • ProtocolsIPv4/IPv6,HTTP,HTTPS,802.1X,QoS,SMTP,UPnP,SNMP,DNS,DDNS,NTP,RTSP,RTCP,RTP,TCP/IP,UDP,IGMP,ICMP,DHCP,PPPoE,Bonjour,FTP
  • Simultaneous Live ViewUp to 20 channels
  • User/HostUp to 32 users. 3 user levels: administrator, operator, and user
  • SecurityPassword protection,complicated password,IP address filter,HTTPS encryption,802.1X authentication (EAP-TLS, EAP-LEAP, EAP-MD5),host authentication (MAC address),watermark
  • ClientiVMS-4200,HikCentral Pro,Hik-Connect
  • Web BrowserIE 10+, Chrome 57+, Firefox 52+, Safari 12+

  • Image
  • Day/Night SwitchDay,night,auto,schedule
  • Image EnhancementHLC,3D DNR
  • Wide Dynamic Range (WDR)[Bullet channel] No, [PTZ channel] 120 dB
  • DefogOptical defog
  • Image StabilizationEIS
  • Regional ExposureYes
  • Regional Focus[Bullet channel] No, [PTZ channel] Yes
  • Image SettingsSaturation, brightness, contrast, sharpness, gain, and white balance adjustable by client software or web browser
  • Image Parameters SwitchYes
  • Privacy Mask[Bullet channel] No, [PTZ channel] 24 programmable polygon privacy masks; mask color or mosaic configurable
  • SNR≥ 52 dB

  • Supplement Detection
  • Satellite PositioningNo
  • GyroscopeYes
  • CompassNo

  • Interface
  • Ethernet Interface1 RJ45 100M self-adaptive Ethernet port
  • On-board StorageBuilt-in memory card slot, support microSD/microSDHC/microSDXC card, up to 256 GB
  • Alarm7 input(s), 2 output(s)
  • Audio

    1 input (line in), max. input amplitude: 2-2.4 vpp, input impedance: 1 KΩ ± 10%,

    1 output (line out), line level, output impedance: 600 Ω

  • RS-4851 RS-485 (Half duplex, HIKVISION, Pelco-P, Pelco-D, self-adaptive)
  • ResetYes

  • Event
  • Basic Event[PTZ channel] video tampering alarm,[PTZ channel & bullet channel] alarm input and output, exception
  • Smart Event[PTZ channel & bullet channel] audio exception detection,[PTZ channel] line crossing detection, intrusion detection, region entrance detection, region exiting detection
  • Alarm Linkage[Bullet channel] no,[PTZ channel] Upload to FTP/NAS/memory card, notify surveillance center, send email, trigger alarm output, trigger recording, audible warning, white light flashing, and PTZ actions (such as preset, patrol scan, pattern scan)
  • Smart Tracking[PTZ channel] yes
  • Smart Linkage3D positioning

  • Deep Learning Function
  • Multi-Target-Type Detection[Bullet channel] no,[PTZ channel] Supports simultaneous detection and capture of human body, face and vehicle

  • General
  • General Functionmirror,password protection
  • Power36 VDC ± 25%, max. 70 W,including max. 6 W for heater and max. 6 W for supplement light of bullet channel, and max. 6 W for heater and max. 15 W for supplement light of PTZ channel
  • Operating Condition-40 °C to 70 °C (-40 °F to 158 °F). Humidity 95% or less (non-condensing),For speaker: -30 °C to 55°C (-22°F to 131°F)
  • WiperYes
  • DemistYes
  • MaterialADC12
  • DimensionØ290 mm × 453.2 mm (Ø11.42″ × 17.84″)
  • WeightApprox. 11.5 kg (25.35 lb.)
  • Language33 languages: English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chinese, Thai, Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil), Ukrainian

  • Approval
  • EMCFCC (47 CFR Part 15, Subpart B),CE-EMC (EN 55032: 2015, EN 61000-3-2: 2019, EN 61000-3-3: 2013 + A1: 2019, EN 50130-4: 2011 + A1: 2014),RCM (AS/NZS CISPR 32: 2015),IC (ICES-003: Issue 7),KC (KN 32: 2015, KN 35: 2015)
  • SafetyUL (UL 62368-1),CB (IEC 62368-1: 2014 + A11),CE-LVD (EN 62368-1: 2014/A11: 2017),BIS (IS 13252 (Part 1): 2010/IEC 60950-1: 2005),LOA (IEC/EN 60950-1)
  • EnvironmentCE-RoHS (2011/65/EU),WEEE (2012/19/EU),Reach (Regulation (EC) No 1907/2006)
  • ProtectionIP67 (IEC 60529-2013),TVS 6000 V lightning protection, surge protection and voltage transient protection
