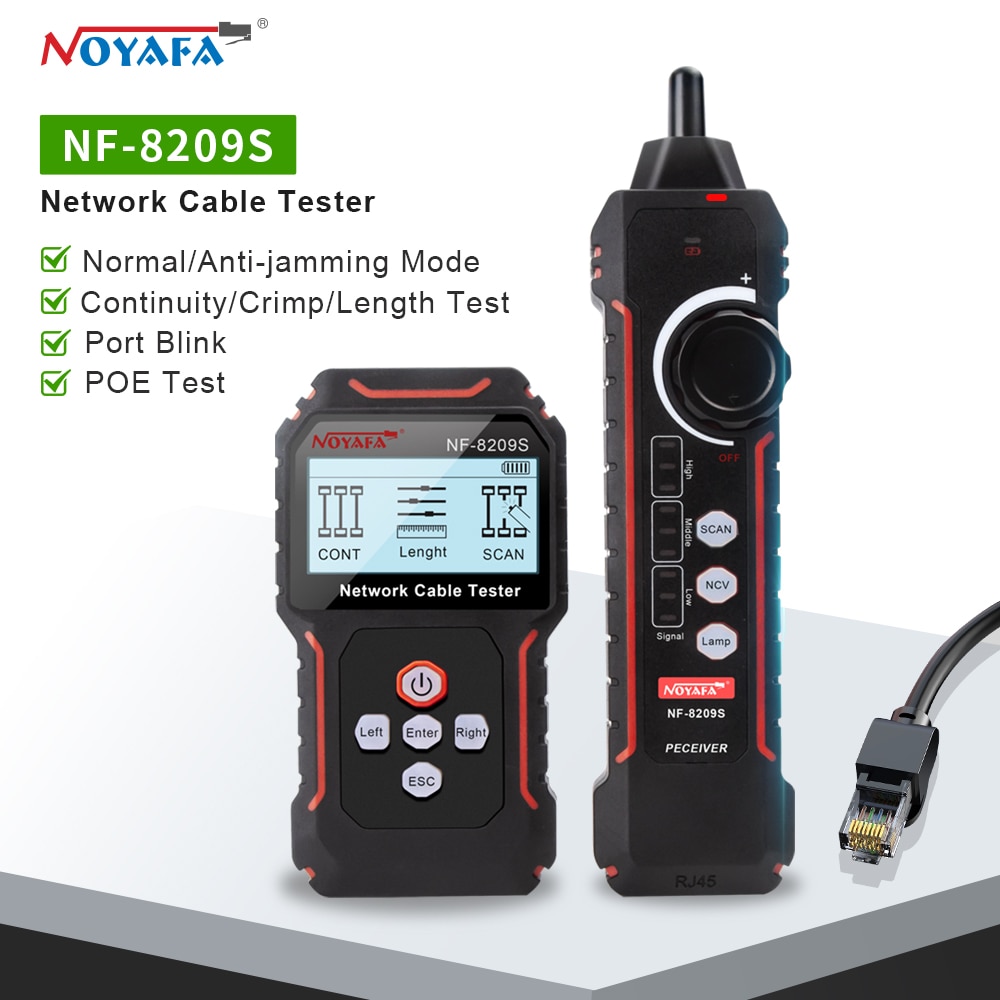

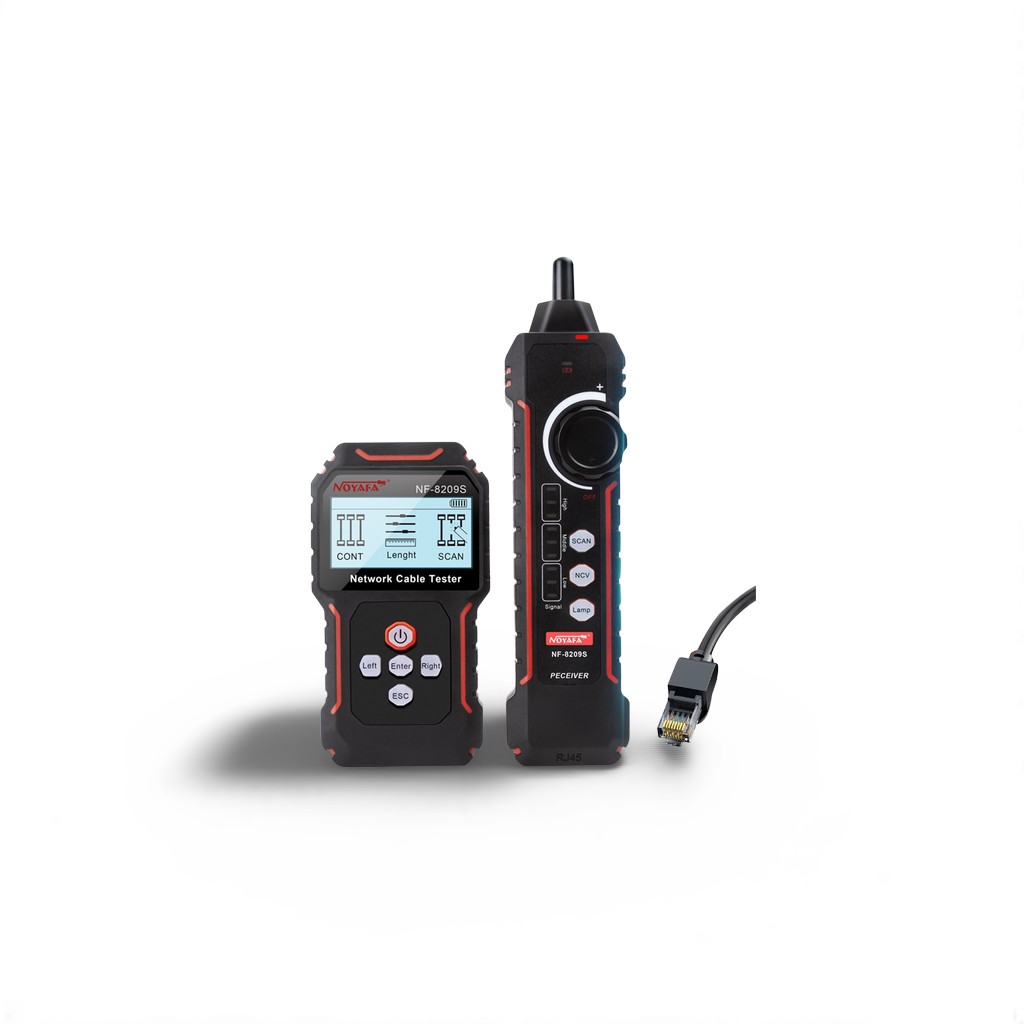

noyafa New NF-8209S LCD Network Cable Tester Wire Tracker PoECurrent Length cabl RJ45 Cable Tracker multifunctional tester Tool



Model: NF-8209S(Product Features)

1.Hunting test: normal mode/anti-jamming mode

2.Wire test: cross, open circuit, short circuit, normal, etc.

3.Length test: network cable length breakpoint test, no calibration required

4.Pressing test: test whether the crystal head is pressed well

5.PoE test: power supply core and power supply voltage detection,

6.External interface: USB interface (charging, data copying)

7.Software: Provide standard analysis software for offline analysis

8.Image format: JPEG/Mp4

9.Upgrade: Pending firmware/software upgrade Due to software upgrade: 10.Offline upgrade (computer download estimated upgrade package method)

11.standard/non-standard PoE can be tested

12.Two-color injection molding material is solid, large-capacity lithium battery, 13.long battery life

14.Anti-interference and no noise / ordinary line hunting

15.Line to line, hunting, PoE testing

16.Length test, crimping test

17.NCV induction pen. Lighting function







Trans mitter Parameters

Hunting test: normal mode/anti-jamming mode

Wire-to-wire test: wire-to-wire short circuit, open circuit, crossover, normal condition

Length test: length measurement range 2.5 meters ~ 200 meters

Hunting test: anti-interference, ordinary hunting

PoE test: equipment standard/non-standard, polarity, voltage, jumper connection, power supply core

Port flashing function: yes

Crimping test: yes

Interface description: 3 RJ45, 1 RJ11

Power supply mode: polymer lithium battery 3.7V 1400mAh (Type-C charging)

Input voltage protection





Receiver parameters

Hunting reception: anti-interference hunting reception, ordinary hunting reception

NCV pen function: yes

Lighting: LED lighting

Line interface: RJ45

Power supply mode: polymer lithium battery 3.7V 1400mAh (Type-C charging)

Input voltage protection: DC60V





Advantages:

offer digital and analog signaling all in one network toner and probe.PoE detecting and identify the type of PSE.Measure cable length and fault distance accurately by TDR theory.Built-in NCV included in the receiver.





Main Features

Wire test: cross, open circuit, short circuit, normal, etc.Length test: network cable length breakpoint test, no calibration requiredScan–Analog/Digital mode to locate lan cables.PoE– available for standard or non-standard PoE switch(5~60V), identify AT or AF standard of PSE type.Port flash–locate network port by the flashing port light onswitchl router.











Accessories

Emitter:1pc

Receiver:1pc

Earphone:1pc

able adaptors:1 set

Carry bag:1pc

User manual:1pc

Quality certificate:1pc
