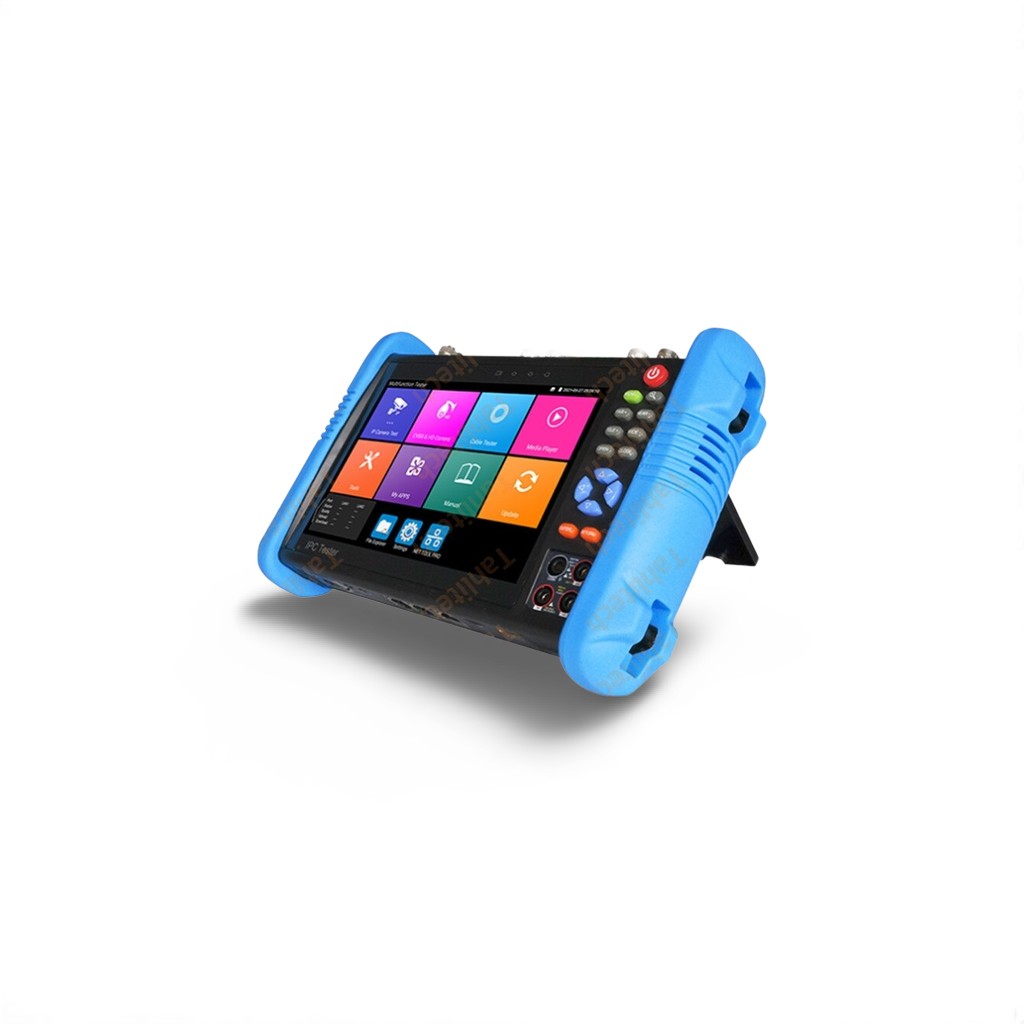

IP Camera Tester 4K 8MP CCTV IPC Tester 7 inch Monitor IPC 9800 plus H.265 4K Video Display Tester Monitor PTZ IP camera Tester

Availability:

3 in stock

GatewayPrice
PayPal$445.50

د.إ1,650.00 د.إ2,020.00

3 in stock

Compare



7″ CCTV IPC Tester cctv monitor ip camera tester 4K HD camera tester ipc tester poe testers HDMI VGA cctv tester





Optional models:



Main features:



◆ 7 inch Retina touch screen, 1920*1200 resolution

◆ 8MP CVI/ TVI/ AHD, 8MP EX-SDI, HD-SDI, 3G-SDI*◆ H.265/H.264, 4K video display via mainstream

◆ Dahua, Hikvision, Axis etc ONVIF camera test

◆ Built in WIFI, create WIFI hotspot

◆ HDMI input 4K 30FPS, HDMI output 1080p

◆ DC24V 2A, DC12V 3A, 48V PoE power, max power 25.5W

◆ Rapid ONVIF, auto view video and create testing report

◆ UTP cable tester/RJ45 cable TDR test, cable quality test

◆ TesterPlay: Tester, mobile phone, PC display at the same time



Camera test:

●7 inch Retina touch screen, 1920*1200 resolutions

● H.265 & H .264 IP, 4K video display via mainstream

● 8MP TVI test,3840 x 2160P 15 FPS, 4xzoom, video record & playback, coaxial PTZ control & call OSD menu *

● 8MP AHD test, 3840 x 2160P 15 FPS,4xzoom, video record & playback, coaxial PTZ & call OSD menu *

● 8MP CVI test, 3840 x 2160P 12.5/15 FPS, 4xzoom, video record & playback, coaxial PTZ & call OSD menu *

● 8MP EX-SDI test, 3840 x 2160P 25/30 FPS,4xzoom, video record & playback, coaxial PTZ & call OSD menu *

● HD-SDI test, 1920 x 1080P 25/30/50/60 FPS, 4xzoom, video record & playback, coaxial PTZ & call OSD menu *

● 3G-SDI test, 1920 x 1080P 50/60 FPS, 4xzoom, video record& playback, coaxial PTZ & call OSD menu *

● Rapid ONVIF, Auto log in and display image, create testing report

● AXIS, Hikvision camera test, enter ONVIF app, input username and password to test

● CVBS camera test and PTZ control

● IPC TEST (Non-ONVIF test), HIK test tool (Hikvision camera), DH test tool (Dahua camera)

● Video level meter, peak video signal level, SYNC signal level, Color bar chroma level measurement*

● DC12V/3A power output, camera can be powered from DC 12Votage

● 48V PoE power output power

● Rapid video, just by one key to detect all network cameras and auto display

● Built in Wi-Fi, display image from the wireless camera, create WIFI hotspot

● CVBS loop test, the tester can send and receive color bar generator signal, to check BNC cable

● Enhanced Color bar generator, PAL/NTSC multi-system color bar video generator



Cable test:

● Improvement cable tester, UTP cable, telephone cable etc order and connectivity test, can save testing report, if special number, need customized

● RJ45 cable TDR test, test cable pair status, length, attenuation, reflectivity, impedance, skew etc

● Upgraded Digital Cable tracer, search BNC cable, network cable and telephone cable from the mess cables, more accurately. *

● TDR cable test: BNC cable, network cable, telephone cable, RVV cable and elevator cable, cat 5/6 cable’s length and short circuit. measurement range 1.2KM*



Other functions:

● Professional WIFI Analyzer, detect the surrounding wifi signal and signal strength

● Network tool: Ping, IP scan, Port Flash, DHCP server, Trace Route

● POE & power information, DC12V& PoE power and voltage output /input measurement

● Tester Play: Tester, android version mobile phone and PC display at the same time

● Shortcut button, drop-down menu, can select Poe power, IP setting, CVBS, LAN info, HDMI IN etc

● HDMI input,720×480p /720×576p /1280×720p /1920×1080p /1024×768p/1280×1024p /1280×900p /1440×900p display, record and snapshot *

● Traffic monitoring, display network port or WIFI connection real-time upload and download speeds and other network parameters

● Self-update software, you can install apps with android version

● Media player, 4K video files and MKV/MP4 media files play

● Quick office, quick office app (support excel, word, ppt format) doc. editable

● 8GB SD card included

● Display its genuine resolution of the IP camera images

● Audio in, support record and save the audio/LED lamp, calculators, music players and other application tools

● 7.6 V /7800mAh Lithium Ion Polymer Battery, after 3.5 hours fast charging, working time lasts 16 hours

Applications:

The 7 inch Retina touch screen IP camera tester is designed for maintenance and installation of IP analog, HD coaxial cameras as well as other security equipment. The 1920×1200 resolution enables it to display network HD cameras and analog cameras in high resolution. The unit supports many ONVIF PTZ and analog PTZ control. Additionally, it with other functions TDR cable test, Digital multi-meter, UTP cable test and cable scan etc. CCTV installers often need to carry a variety of testing tools to complete their work. If take the all in one camera tester, making working conditions safer and increasing productivity.

CCTV system installation and maintenance

Network cabling project installation and maintenance

Dome camera, IP TVI CVI AHD SDI 4K H.265 camera testing

Video transmission channel testing

PTZ controller







SKU: 1005004348468040 Category:
color

Gold, Silver, White, grey, Black

Model Number

IPC9800

Maximum IR Distance(m)

10-20m

Sensor Size

1/3 inch
