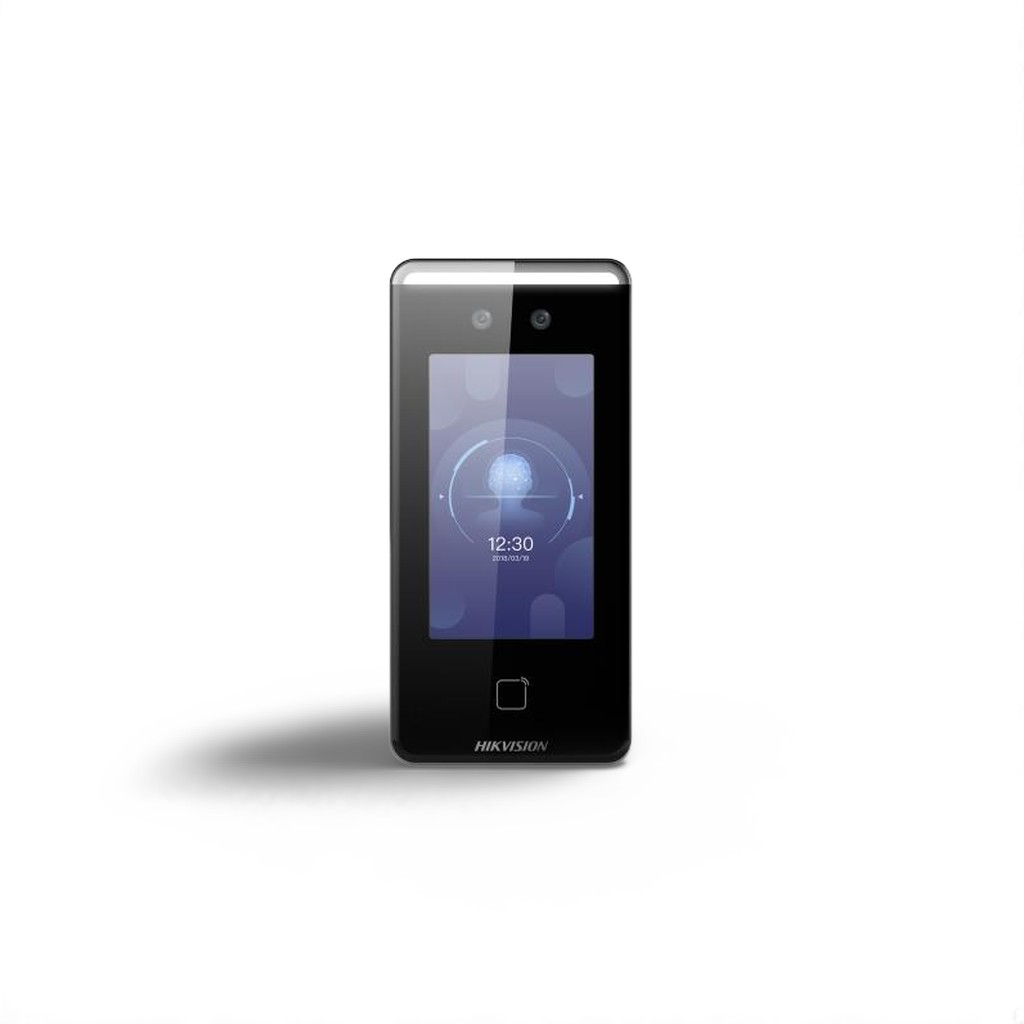

Hikvision Value Series Face Recognition Terminal 4.3-inch capacitive touch screen, 2 MP wide-angle dual-lens

Value Series Face Access Terminal

• Deep learning algorithm
• 4.3-inch capacitive touch screen, 2 MP wide-angle dual-lens
• 3,000 face capacity, 3,000 card capacity, 3,000 fingerprint capacity and 150,000 event capacity
• Multiple authentication modes, including face, fingerprint and card, etc.
• Face recognition duration < 0.2 s/User
• Supports mask wearing detection
• Connects to external access controller or Wiegand card reader via Wiegand protocol
• Connects to secure door control unit via RS-485 protocol to avoid the door opening when the terminal is destroyed
• Two-way audio with client software, door station, indoor station, and ma

• Specification

  • Display

  • Video

  • Audio

  • Network

  • Interface

  • Authentication

  • General

  • Function

  • Display
  • Screen Size4.3 inch
  • Operation MethodCapacitive touch screen
  • TypeIPS

  • Video
  • Lens2
  • Resolution2 MP (video stream: 720P)
  • FOVHFOV = 41.5°; VFOV = 75.5°; DFOV = 87°

  • Audio
  • Audio QualityNoise suppression and echo cancellation

  • Network
  • Wired NetworkSupport
  • Wi-FiSupport, 2.4 G, 802.11b/g/n

  • Interface
  • Network Interface1 RJ-45, 10/100 M self-adaptive
  • Lock Control1
  • Exit Button1
  • Door Contact Input1
  • TAMPER1
  • RS-4851,RS-485 (Half duplex,HIKVISION）
  • Wiegand1,Wiegand （Hik 26bit,Hik 34bit）
  • USB1

  • Authentication
  • Card TypeM1 card

  • General
  • Built-In Access ControllerYes
  • Power Supply12 VDC to 24 VDC, 2 A
  • Power Consumption≤ 10 W
  • Working Temperature-30 °C to 60 °C (-22 °F to 140 °F)
  • LanguageEnglish, Spanish (South America), Arabic, Thai, Indonesian, Russian, Vietnamese, Portuguese (Brazil), Korean

  • Function
  • Hik-ConnectSupport
  • QR Code RecognitionSupport
  • Face Anti-SpoofingSupport
