AX PRO Wireless Alarm System

Hikvision DS-PDMCS-EG2-WB Wireless Slim Magnet Detector

Gateway	Price
PayPal	$22.91

Add to wishlist

Detection Performance
Detection MethodPassive Infrared;Microwave
Detection Range15 m
Detection Angle90° @180° adjustable
Detection Zones92
Detectable Speed0.3～2m/s
SensitivityAuto;Low
White Light Filter10000lux
Microwave Frequency24GHz(24.15～24.25GHz)
Pet Immunity40 kg
Digital Temperature CompensationSupport
Anti-maskingSupport
Adaptable Coverage
Support,

Pattern mask included

Feature
Digital ProcessingTri-Signal Logic
Sealed OpticsSupport
Tamper ProtectionFront;Rear
Environment Temperature IndicatorSupport
Signal Strength IndicatorSupport
Anti-Sway AnalyticsSupport

Interface
Power SwitchPower up enrolling
LED IndicatorGreen(Top PIR), Red(Microwave), Orange(Bottom PIR), Green+Orange(Mask), Blue(Alarm)

Transmission
Transmission TechnologyTri-X Wireless
Transmission MethodTwo-Way RF Wireless
Transmission Frequency868MHz
Transmission SecurityAES-128 Encryption
Transmission Range(Free Space)1.6Km
Frequency HoppingSupport
Enrolling MethodPower up;Remote ID;QR Code

Electrical Characteristics
Standard Battery LifeUp to 5 years (standby time)(The battery working time can be significantly reduced at low temperatures)
Power SupplyBattery powered
Battery TypeCR123A × 5
Typical Voltage3V

General
Operation Temperature-25°C to 60°C (-13°F to 140°F)
Storage Temperature-25°C to 60°C (-13°F to 140°F)
Operation Humidity10% to 90%
IP RateIP65
Dimension(WxHxD)75 mm × 202 mm × 73 mm
Weight600 g
Mounting Height0.8 m to 1.2 m
Mounting MethodWall
Application ScenarioOutdoor

د.إ84.87

Compare

תיאור

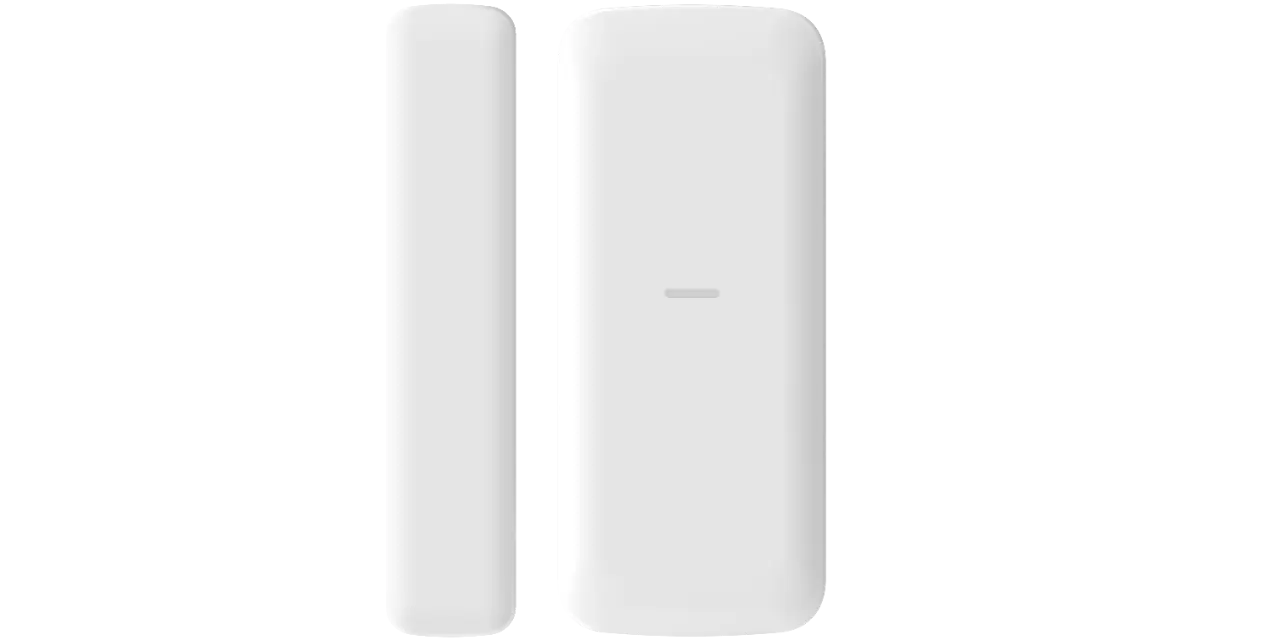

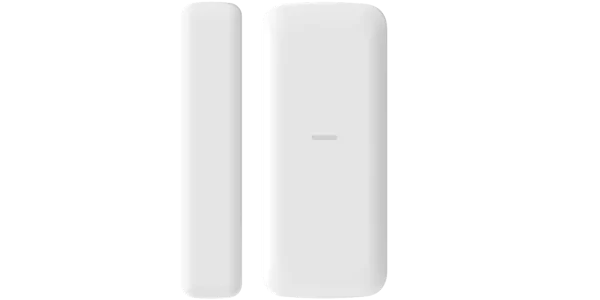

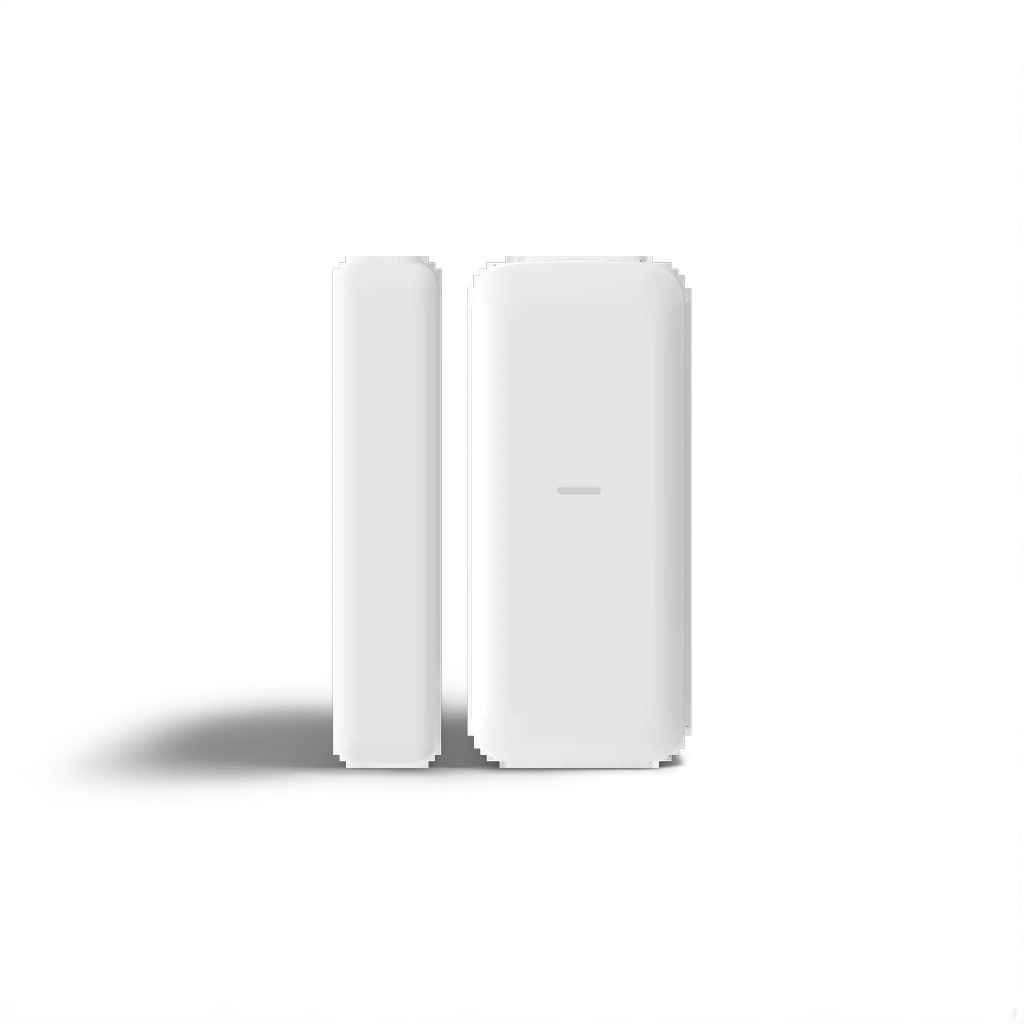

Wireless Slim Magnet Detector

Slim design for an unobtrusive (unnoticeable) installation
Fully remote configurable through App
Multiple enrollment methods and easy installation design
Frequency hopping against jamming for reliable transmission

SKU: DS-PDMCS-EG2-WB Category: AX PRO Wireless Alarm System Tag: AX PRO Kit
