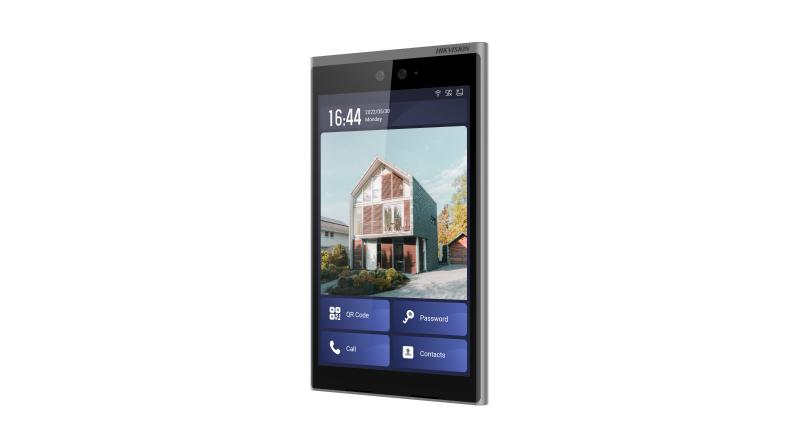

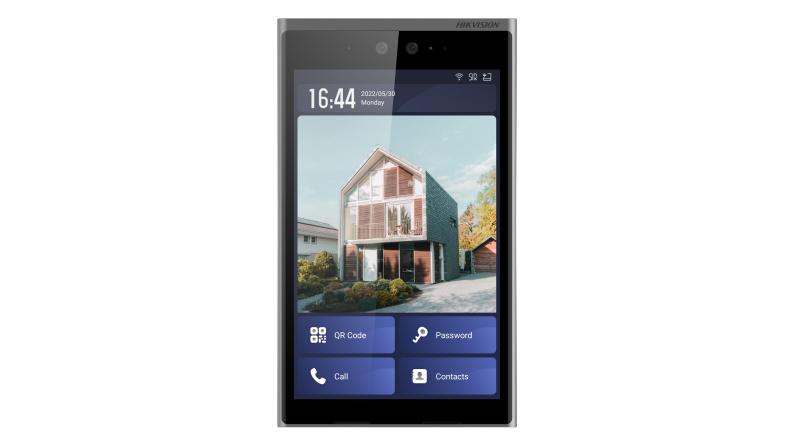

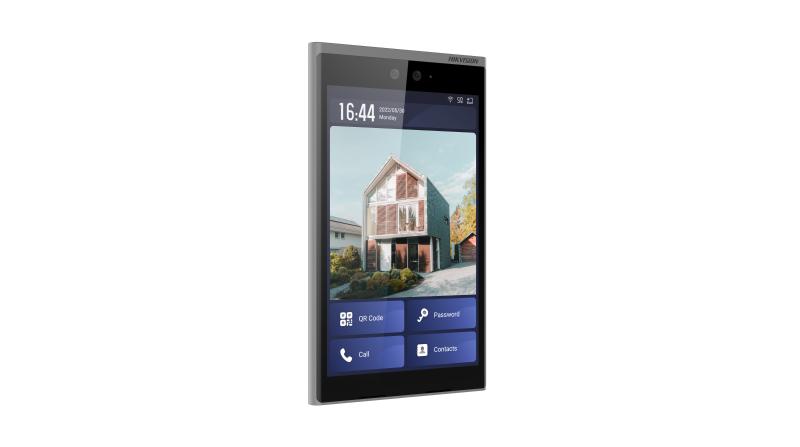

HIKVISION DS-KD9633-WBE6 Facial Door Station

GatewayPrice
PayPal$1,282.50

د.إ4,750.00

Compare

Facial Recognition Door station

  • Intuitive operation for a better user experience10.1-inch colorful LCD screen with 1280 × 880 resolution
  • Built-in Android system
  • Touch screen UI, WEB
  • Great image quality even in darkness
  • See clearly with the 2MP camera
  • Multiple intelligent authentications
  • Card, PIN code, bluetooth, QR code, fingerprint & face recognition
  • High level of protection
  • IP65

Specification

  • System parameters

  • Display parameters

  • Video parameters

  • Audio parameters

  • Capacity

  • Network parameters

  • Authentication

  • Device interfaces

  • General

  • System parameters
  • Operation systemAndroid 7.1
  • ROM4 GB
  • RAM2 GB
  • ProcessorEmbeded high performance processor
  • Display parameters
  • Screen size10.1-inch
  • Operation methodCapacitive touch screen
  • TypeColorful IPS
  • Resolution1280 × 800
  • Brightness410 cd/m²
  • Video parameters
  • Lens2 x 2 MP HD camera with low illumination
  • Resolution

    Main stream:1920 × 1080p and 1280 × 720p

    Sub stream: 1280 × 720p and 640 × 480p

  • FOVHorizontal: 88°, Vertical: 44°
  • Wide dynamic range (WDR)Digital WDR/120 dB
  • Supplement lightIR light, up to 3 m
  • Video compression standardH.264
  • Audio parameters
  • Audio input2 built-in omnidirectional microphone
  • Audio compression standardG.711 U, G.711 A
  • Audio output1 built-in loudspeaker
  • Audio compression bitrate64 Kbps
  • Audio qualityNoise suppression and echo cancellation
  • Volume adjustmentAdjustable
  • Capacity
  • User capacity20000
  • Face capacity10000
  • Fingerprint capacity/
  • Card capacity100000
  • Message capacity/
  • Linked indoor station capacity500
  • Sub door station capacity16
  • Network parameters
  • Network protocolTCP/IP, RTSP
  • Wi-FiReserved
  • BluetoothReserved
  • 3G/4G/
  • Authentication
  • Card reading frequency13.56 MHz
  • Device interfaces
  • Alarm input4 (2 exit butttons and 2 door contacts by default)
  • Network interface2 RJ-45 10/100/1000 Mbps self-adaptive (1 reserved)
  • TAMPER1
  • Exit button2 (1 for lock control and 1 for secure door control unit)
  • RS-4852 RS-485 (Half duplex, HIKVISION)
  • USB2 for internal use only
  • Wiegand/
  • TF card1 (reserved)
  • Alarm output2 (reserved)
  • Lock control2 relays, Max. 30 VDC, 2 A, lock 2 needs secure module
  • Door contact input1
  • General
  • InstallationSurface mounting and flush mounting
  • Indicator/
  • Weight

    Net weight: 1.225 kg

    Gross weight: 3.333 kg

  • Protective levelIP65 and IK07
  • Working temperature-30 °C to 60 °C (-22 °F to 140 °F)
  • Working humidity10% to 90% (no-condensing)
  • Dimension (W × H × D)271 mm × 159.2 mm × 26.5 mm (10.7″ × 6.3″ × 1″)
  • Battery/
  • Power supply12 VDC, 2 A
  • Application environmentOutdoor
  • Power consumption≤ 18 W
  • LanguageEnglish,French,Portuguese,BrazilianPortuguese,Spanish,Russian,German,Italian,Polish,Turkish,Vietnamese,Arabic,Czech,Hungarian,Dutch,Romanian,Bulgarian,Ukrainian,Croatian,Serbian,Greek,Lithuanian,Estonia,Latvian,Norwegian,Danish,Slovakia,Hebrew,Swedish,Finnish,TraChinese,Mongolian,HongKongTraChinese
SKU: DS-KD9633-WBE6 Category:
