-2%
HiKvision Hybrid SAN

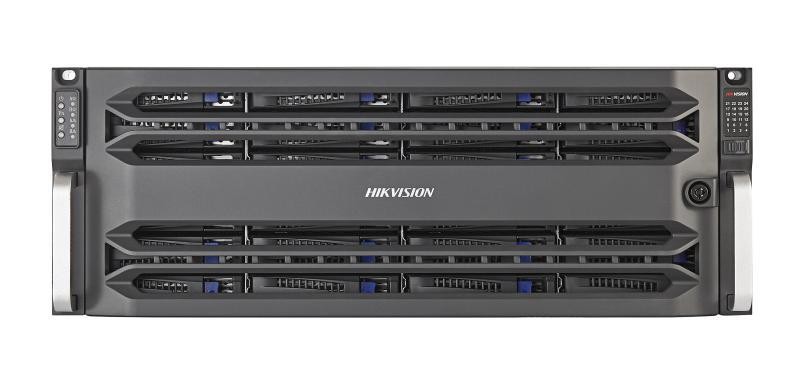

Hikvision DS-A71024R/440 Series Storage System Hybrid SAN
| Gateway | Price |
|---|---|
| PayPal | $6,615.00 |
د.إ24,500.00 د.إ24,940.00
EOL
24-slot economic Storage
- Economical and stable hardware platform
- HDD detection and repair/RAID optimization
- Surveillance-specialized direct storage (Direct Streaming mode+IP SAN mode)
- Advanced data protection (synchronous backup of key information in system disks)
- Energy efficient and user-friendly UI
- Network
- ProtocoliSCSI, RTSP, ONVIF, PSIA
- External Interface
- USB4
- Data Network Interface2, 1000M Ethernet interface(4 × GbE or 2 × 10GbE is extendable)
- MiniSAS InterfaceSupported
- COM1
- Management Network Interface1, 1000M Ethernet interface
- Storage
- HDD Slot24
- Interface/CapacitySATA/1 TB, 2 TB, 3 TB, 4 TB, 6 TB, 8 TB, 10 TB, 12 TB, 14 TB, 16 TB
- Hot-SwappingSupported
- HDD SupportSingle, RAID(Enterprise Hard Disk)
- RAIDRAID 0, 1, 3, 5, 6, 10, 50,JBOD, Hot-Spare
- Performance
- Direct Streaming Mode: Video (2 Mbps) + Picture320-ch recording + playback
- IPSAN Mode180-ch recording + playback
- Video Performance320
- Picture Performance320
- Hardware
- StructureServer Structure
- Processor64-bit multi-core processor
- Cache4 GB (extendable to 64 GB)
- Storage Management
- Disk ManagementDisk inspection, alarm and repair
- Logical Volume ManagementiSCSI volume, video volume management
- Recording Management
- Recording ModeTiming recording, manual recording, dual-stream recording, alarm recording
- Video ProtectionLock key video, N+1 service protection, ANR, video loss detection and alarm
- Searching ModeSearch by time and event
- Downloading ModeQuick download, batch download, download by segment, download by merging
- Device Maintenance
- Management ModeWeb-based GUI, serial port CLI, centralized management of multiple devices
- Alarm ModeSound, light, email, message, web page
- Log DownloadingDownload on web page
- HDD
- HDD Model
Hikvision,HK7216AH,16T;
Hikvision,HK7210AH,10T;
Hikvision,HK728TAH,8T;
Hikvision,HK726TAH,6T;
Hikvision,HK724TAH,4T;
Seagate,ST16000NM000J,16T;
Seagate,ST10000NM017B,10T;
Seagate,ST8000NM017B,8T;
Seagate,ST6000NM019B,6T;
Seagate,ST4000NM000B,4T;
- General
- Power SupplyRedundant
- Chassis4U (19-inch height)
- Consumption(With HDDs)
Working: ≤ 479(1633 BTU with 24 HDDs);Rated: ≤ 875 W
- Environment TemperatureWorking: +5 °C to +40 °C (41 °F to 104 °F);Storing: -40 °C to +55 °C (-104 °F to +131 °F)
- HumidityWorking: 20% to 80%RH (non-condensing/frozen); Storing: 5% to 90%RH (non-condensing/frozen)
- Dimensions(W × D × H)484 x 684 x 174 mm (19.1 x 26.9 x 6.9 in)
- Weight (Without HDDs)≤ 40kg
