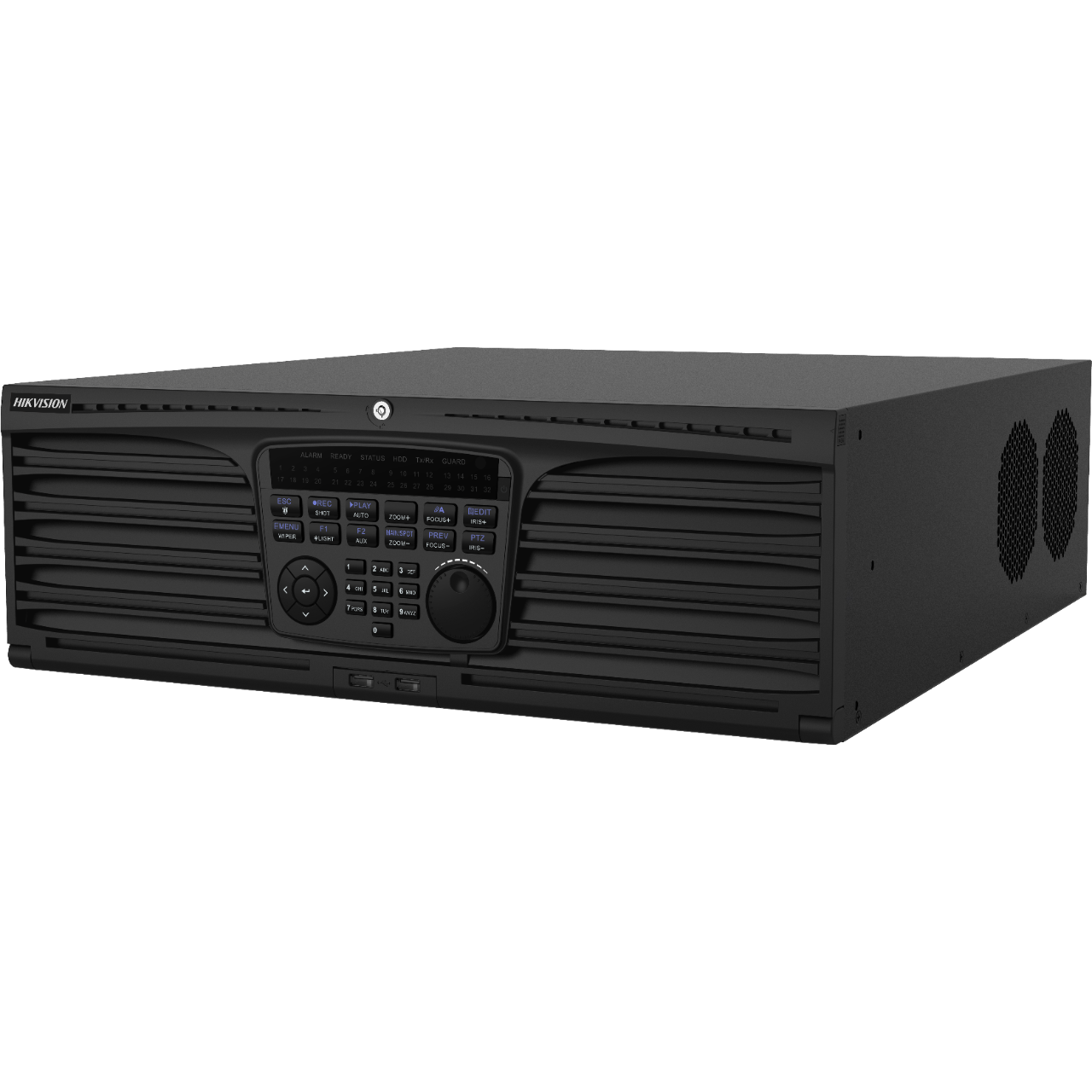

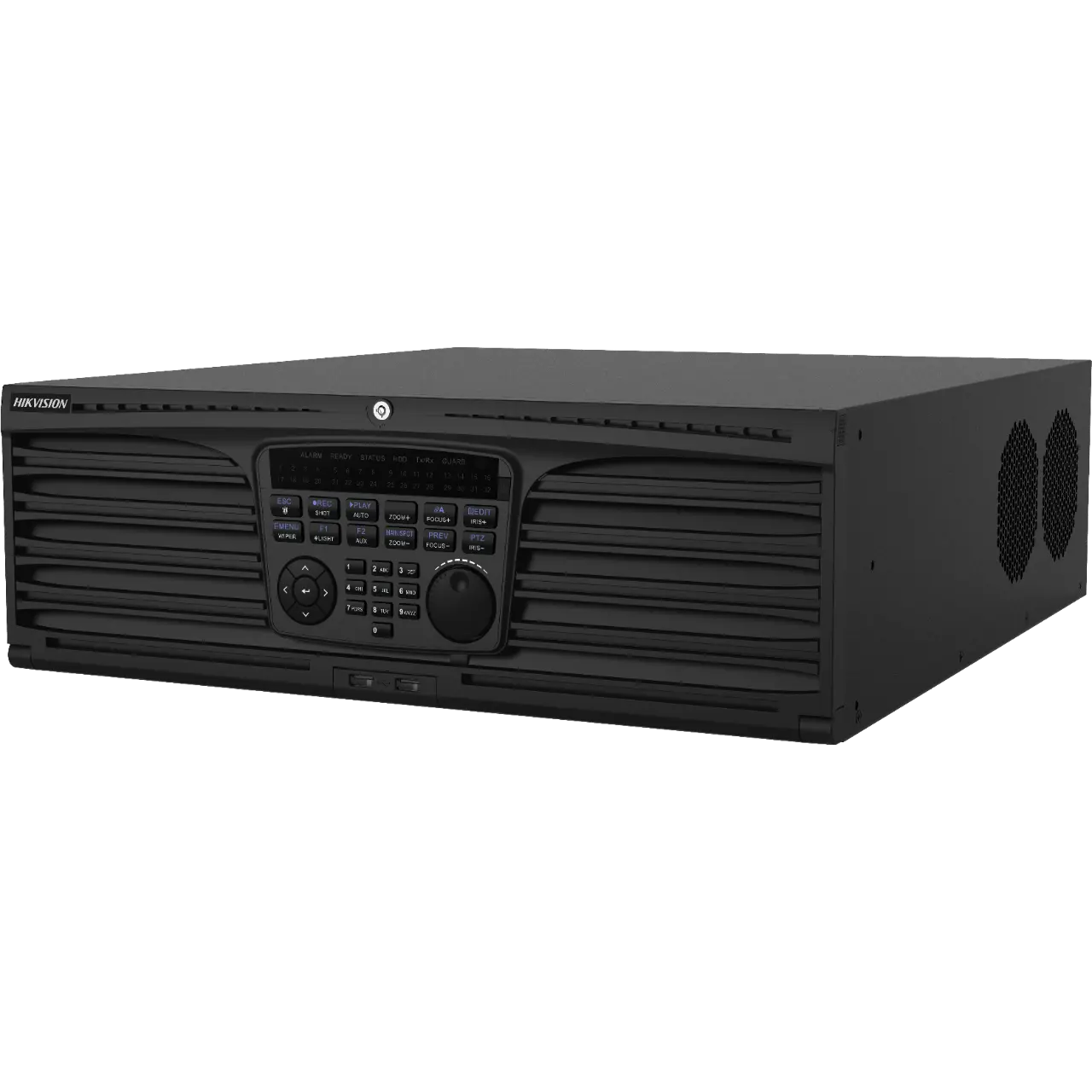

Hikvision DS-9664NI-I16 64 channel NVR, up to 32MP, 4K resolution, 1x HDD

64-ch 3U 4K NVR

• Up to 64 channel IP cameras can be connected
• Up to 320 Mbps (or 200 Mbps when RAID is enabled) high incoming bandwidth ensures IP cameras can be connected
• 2 HDMI (different source) and 2 VGA (different source) interfaces
• 16 HDD can be used for continuous video recording
• Supports some specialist cameras, including people counting camera/ANPR (automatic number plate recognition) camera/fisheye camera
• Advanced streaming technology enables smooth live view in poor network conditions
• Supports RAID 0, 1, 5, 6, 10 and N+1 hot spare for even more reliable data storage, effectively avoids data loss risks
• • Video And Audio
  • IP Video Input

    64-ch

    Up to 12 MP resolution

    *: 32 MP and 24 MP is only available for channel 1 when ultra HD resolution mode is enabled. For DS-9632NI-I16, when ultra HD resolution mode is enabled, it will reduce the IP video input to 24-ch.

  • Incoming Bandwidth320 Mbps
  • Outgoing Bandwidth256 Mbps
  • Incoming Bandwidth (RAID Mode)200 Mbps
  • Outgoing Bandwidth (RAID Mode)200 Mbps
  • HDMI 1 Output4K (3840 × 2160)/60Hz, 4K (3840 × 2160)/30Hz, 1920 × 1080p/60Hz, 1600 × 1200/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz
  • HDMI 2 Output1920 × 1080p/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz
  • VGA 1 Output1920 × 1080p/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz
  • VGA 2 Output1920 × 1080p/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz
  • Video Output Mode

    HDMI 1 and VGA 1 provide simultaneous video output, and work as the main output;

    HDMI 2 and VGA 2 provide simultaneous video output, and work as the auxiliary output

  • CVBS Output1-ch, BNC (1.0 Vp-p, 75 Ω), resolution: PAL: 704 × 576, NTSC: 704 × 480
  • Audio Input1-ch, RCA (2.0 Vp-p, 1 KΩ)
  • Audio Output2-ch, RCA (Linear, 1 KΩ)
  • Two-Way Audio1-ch, RCA (2.0 Vp-p, 1 k Ω)

  • Decoding
  • Decoding FormatH.265/H.265+/H.264/H.264+/MPEG4
  • Recording Resolution

    32 MP/24 MP/12 MP/8 MP/6 MP/5 MP/4 MP/3 MP/1080p/UXGA/720p/VGA/4CIF/DCIF /2CIF/CIF/QCIF

    *: 32 MP and 24 MP is only available for channel 1 when ultra HD resolution mode is enabled. For DS-9632NI-I16, when ultra HD resolution mode is enabled, it will reduce the IP video input to 24-ch.

  • Synchronous Playback16-ch
  • Decoding Capability1-ch@32 MP (30 fps)/2-ch@12 MP (20fps)/4-ch@8 MP (25fps)/8-ch@4 MP (30fps)/16-ch@1080p (30fps)
  • Dual-Stream RecordingSupport
  • Stream TypeVideo, Video & Audio
  • Audio CompressionG.711ulaw/G.711alaw/G.722/G.726/AAC/MP2L2/PCM

  • Network
  • Remote Connection128
  • Network ProtocolTCP/IP, DHCP, IPv4, IPv6, DNS, DDNS, NTP, RTSP, SADP, SMTP, SNMP, NFS, iSCSI, ISUP, UPnP™, HTTP, HTTPS
  • Network Interface2, RJ-45 10/100/1000 Mbps self-adaptive Ethernet interface

  • RAID
  • RAID TypeRAID0, RAID1, RAID5, RAID6, and RAID10 (at least 4 TB for each HDD)

  • Auxiliary Interface
  • Serial Interface1 RS-485 (full-duplex), 1 RS-232, 1 keyboard
  • SATA16 SATA interfaces supporting hot-plug
  • ESATA1 eSATA interface
  • CapacityUp to 10TB capacity for each disk
  • Alarm In/Out16/8
  • USB InterfaceFront panel: 2 × USB 2.0; Rear panel: 1 × USB 3.0

  • General
  • Power Supply100 to 240 VAC, 50 to 60 Hz
  • Consumption≤ 45 W
  • Working Temperature-10 °C to 55 °C (14 °F to 131 °F)
  • Working Humidity10 to 90 %
  • Chassis3U chassis
  • Dimension (W × D × H)445 × 496 × 146 mm (17.5″ × 19.5″ × 5.7″)
  • Weight≤ 12.5 kg (27.6 lb)

  • Certification
  • FCCPart 15 Subpart B, ANSI C63.4-2014
  • CEEN 55032:2015, EN 61000-3-2, EN 61000-3-3, EN 50130-4
