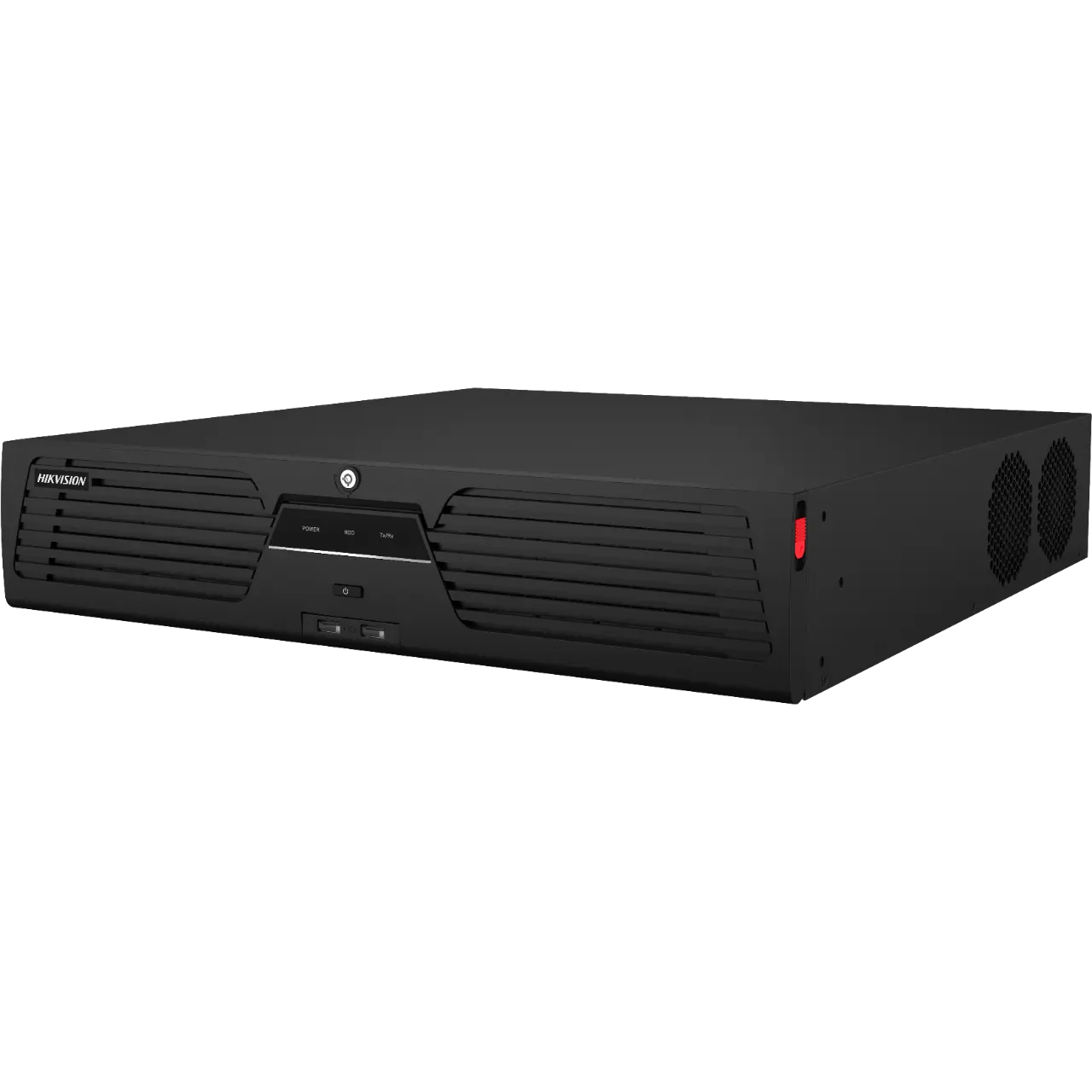

Hikvision DS-96128NI-M16/R 128-ch 2U 8K NVR Dual Power

128-ch 2U 4K NVR

• Up to 128 channel IP cameras can be connected
• Up to 2-ch@32 MP or 2-ch@24 MP or 4-ch@12 MP or 8-ch@8MP or 16-ch@4MP or 32-ch@1080P decoding capacity
• Up to 400 Mbps incoming and 400 Mbps Outgoing Bandwidth
• 2 HDMI (different source) and 2 VGA (different source) interfaces,Support 8K or dual 4K video output
• Supports special cameras, including people counting camera, ANPR (automatic number plate recognition) camera, and fisheye camera
• Advanced streaming technology enables smooth live view in poor network conditions
• Supports RAID 0, 1, 5, 6, 10 and N+M hot spare for even more reliable data storage, effectively avoids data loss risks
• Redundant power supply

•

• • Video And Audio
  • IP Video Input128-ch
  • Incoming Bandwidth400 Mbps
  • Outgoing Bandwidth400 Mbps
  • HDMI 1 Output8K (7680 × 4320)/30Hz, 4K (3840 × 2160)/60Hz, 4K (3840 × 2160)/30Hz, 2K (2560 × 1440)/60Hz, 1920 × 1080/60Hz, 1600 × 1200/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz
  • HDMI 2 Output

    4K (3840 × 2160)/60Hz, 4K (3840 × 2160)/30Hz, 2K (2560 × 1440)/60Hz, 1920 × 1080/60Hz, 1600 × 1200/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz

    *: When HDMI 1 output resolution is 8K, the maximum HDMI 2 output resolution is 1080p.

  • VGA 1 Output1920 × 1080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz
  • VGA 2 Output1920 × 1080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz
  • Video Output Mode

    HDMI 1 and VGA 1 provide simultaneous video output, and work as the main output;

    HDMI 2 and VGA 2 provide simultaneous video output, and work as the auxiliary output

  • CVBS Output1-ch, BNC (1.0 Vp-p, 75 Ω), resolution: PAL: 704 × 576, NTSC: 704 × 480
  • Audio Output2-ch, RCA (Linear, 1 KΩ)
  • Two-Way Audio1-ch, RCA (2.0 Vp-p, 1 KΩ, using the audio input)

  • Decoding
  • Decoding FormatH.265+/H.265/H.264+/H.264
  • Recording Resolution32 MP/24 MP/12 MP/8 MP/7 MP/6 MP/5 MP/4 MP/3 MP/1080p/UXGA/720p/VGA/4CIF/DCIF/2CIF/CIF/QCIF
  • Synchronous Playback16-ch
  • Decoding Capability2-ch@32 MP (30 fps)/2-ch@24 MP (30fps)/4-ch@16 MP (30fps)/8-ch@8 MP (30fps)/16-ch@4 MP (30fps)/32-ch@2 MP (30fps)
  • Audio CompressionG.711ulaw/G.711alaw/G.722/G.726/AAC/MP2L2/PCM

  • Network
  • Network ProtocolTCP/IP, DHCP, IPv4, IPv6, DNS, DDNS, NTP, RTSP, SADP, SMTP, SNMP, NFS, iSCSI, ISUP, UPnP™, HTTP, HTTPS
  • Network Interface2, RJ-45 10/100/1000 Mbps self-adaptive Ethernet interface

  • RAID
  • RAID TypeRAID0, RAID1, RAID5, RAID6, RAID10

  • Auxiliary Interface
  • Serial Interface1 RS-485 (full-duplex), 1 RS-232
  • SATA8 SATA interfaces
  • ESATA1 eSATA interface
  • CapacityUp to 14 TB capacity for each disk
  • Alarm In/Out16/9
  • USB InterfaceFront panel: 2 × USB 2.0; Rear panel: 2 × USB 3.0
  • Ctrl 12V

    Controllable 12 VDC, 1 A power output for external alarm device; The power will be turned on when the alarm output is triggered.

    *: The Ctrl 12V power is controlled by alarm output 9.

  • DC 12V12 VDC, 1 A power output

  • General
  • Power Supply100 to 240 VAC, 50 to 60 Hz, redundant power supply
  • Consumption≤ 50 W (without HDD)
  • Working Temperature-10 °C to 55 °C (14 °F to 131 °F)
  • Working Humidity10% to 90%
  • Chassis2U chassis
  • Dimension (W × D × H)445 × 540 × 93 mm ( 17.5″× 21.3″ × 3.7″)
  • Weight≤ 10 kg (without HDD, 22 lb.)

  • Certification
  • Obtained CertificationCE, FCC
  • FCCPart 15 Subpart B, ANSI C63.4-2014
  • CEEN 55032:2015, EN 61000-3-2, EN 61000-3-3, EN 50130-4
