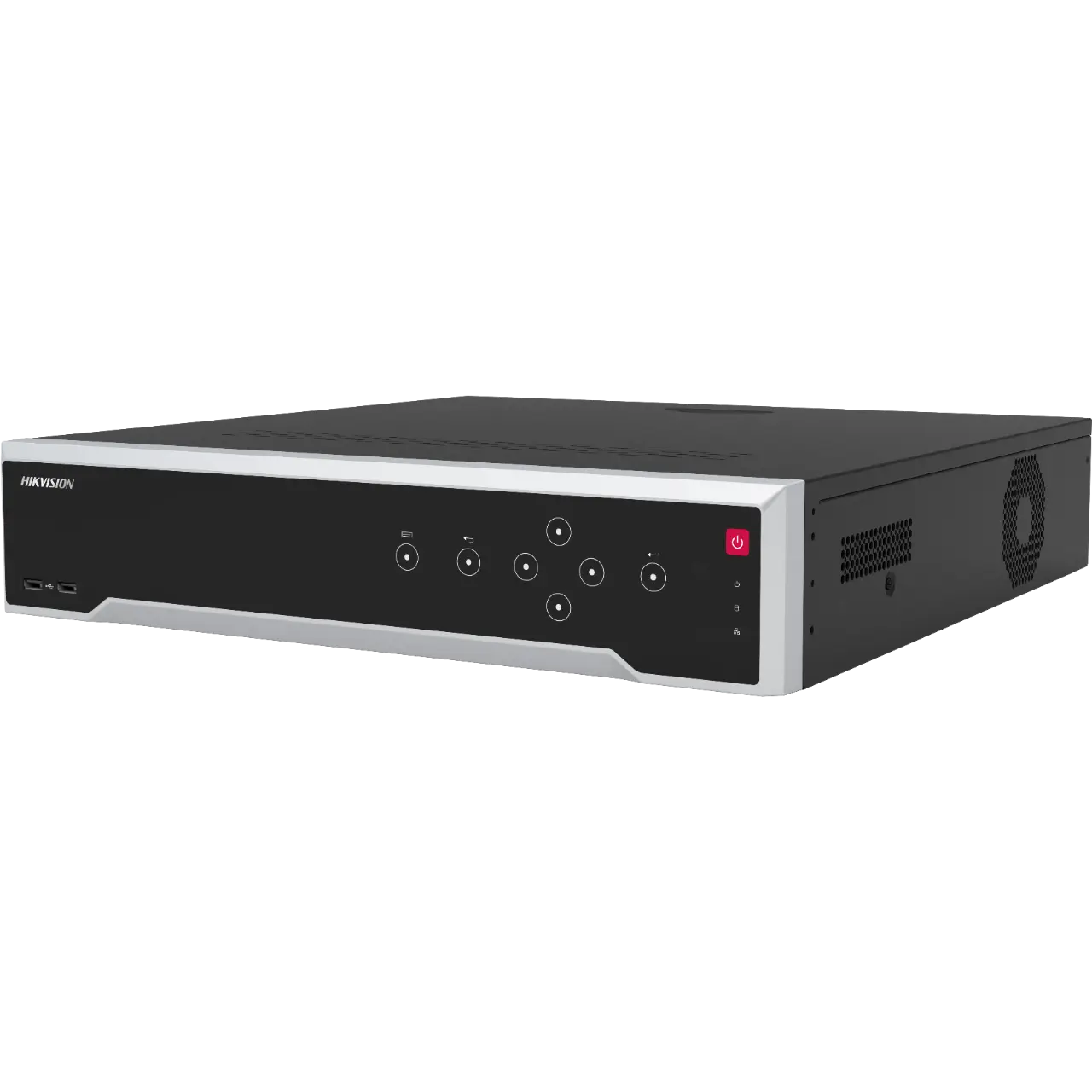

Hikvision DS-8632NI-K8 32Ch Embedded 4K NVR 8 SATA Port

32-ch 2U 4K NVR

• Up to 32 channel IP cameras can be connected
• Supports decoding H.265+/H.265/H.264+/H.264/MPEG4 video formats
• Up to 4K high-definition live view, storage and playback
• Up to 160 Mbps high incoming bandwidth ensures IP cameras can be connected
• 2 HDMI (different source) and 2 VGA (different source) interfaces
• 8 HDD can be used for continuous video recording
• Supports some specialist cameras, including people counting camera/ANPR (automatic number plate recognition) camera
• • Video And Audio
  • IP Video Input

    32-ch

    Up to 8 MP resolution

    8 MP/6 MP/5 MP/4 MP/3 MP/1080p/UXGA/720p/VGA/4CIF/DCIF/2CIF/CIF/QCIF

  • Incoming Bandwidth256 Mbps
  • Outgoing Bandwidth160 Mbps
  • HDMI 1 Output4K (3840 × 2160)/60 Hz, 4K (3840 × 2160)/30 Hz, 1920 × 1080/60 Hz, 1600 × 1200/60 Hz, 1280 × 1024/60 Hz, 1280 × 720/60 Hz, 1024 × 768/60 Hz
  • HDMI 2 Output1920 × 1080p/60 Hz, 1280 × 1024/60 Hz, 1280 × 720/60 Hz, 1024 × 768/60 Hz
  • VGA 1 Output1920 × 1080p/60 Hz, 1280 × 1024/60 Hz, 1280 × 720/60 Hz, 1024 × 768/60 Hz
  • VGA 2 Output1920 × 1080p/60 Hz, 1280 × 1024/60 Hz, 1280 × 720/60 Hz, 1024 × 768/60 Hz
  • Video Output Mode

    HDMI 1 and VGA 1 provide simultaneous video output, and work as the main output;

    HDMI 2 and VGA 2 provide simultaneous video output, and work as the auxiliary output

  • Audio Output2-ch, RCA (Linear, 1 KΩ)
  • Two-Way Audio1-ch, RCA (2.0 Vp-p, 1 KΩ, using the audio input)

  • Decoding
  • Decoding FormatH.265+/H.265/H.264+/H.264/MPEG4
  • Recording Resolution8 MP/6 MP/5 MP/4 MP/3 MP/1080p/UXGA/720p/VGA/4CIF/DCIF/2CIF/CIF/QCIF
  • Synchronous Playback16-ch
  • Decoding Capability2-ch@8 MP (25 fps)/4-ch@4 MP (30 fps)/8-ch@1080p (30 fps)
  • Stream TypeVideo, Video & Audio
  • Audio CompressionG.711ulaw/G.711alaw/G.722/G.726

  • Network
  • Remote Connection128
  • Network ProtocolTCP/IP, DHCP, IPv4, IPv6, DNS, DDNS, NTP, RTSP, SADP, SMTP, SNMP, NFS, iSCSI, ISUP, UPnP™, HTTP, HTTPS
  • Network Interface2, RJ-45 10/100/1000 Mbps self-adaptive Ethernet interface

  • Auxiliary Interface
  • Serial InterfaceRS-232, RS-485, keyboard
  • SATA8 SATA interfaces
  • ESATA1 eSATA interface
  • CapacityUp to 8 TB capacity for each disk
  • Alarm In/Out16/4
  • USB InterfaceFront panel: 2 × USB 2.0; Rear panel: 1 × USB 3.0

  • General
  • Power Supply100 to 240 VAC, 50 to 60 Hz
  • Consumption≤ 30 W (without HDD)
  • Working Temperature-10 °C to 55 °C (14 °F to 131 °F)
  • Working Humidity10 to 90 %
  • Dimension (W × D × H)445 × 470 × 94 mm (17.5″× 18.5″ × 3.7″)
  • Weight≤ 8 kg (17.6 lb)

  • Certification
  • Obtained CertificationCE, FCC, CB, IC, RCM, KCC, ICE-003
  • FCCPart 15 Subpart B, ANSI C63.4-2014
  • CEEN 55032:2015, EN 61000-3-2, EN 61000-3-3, EN 50130-4
