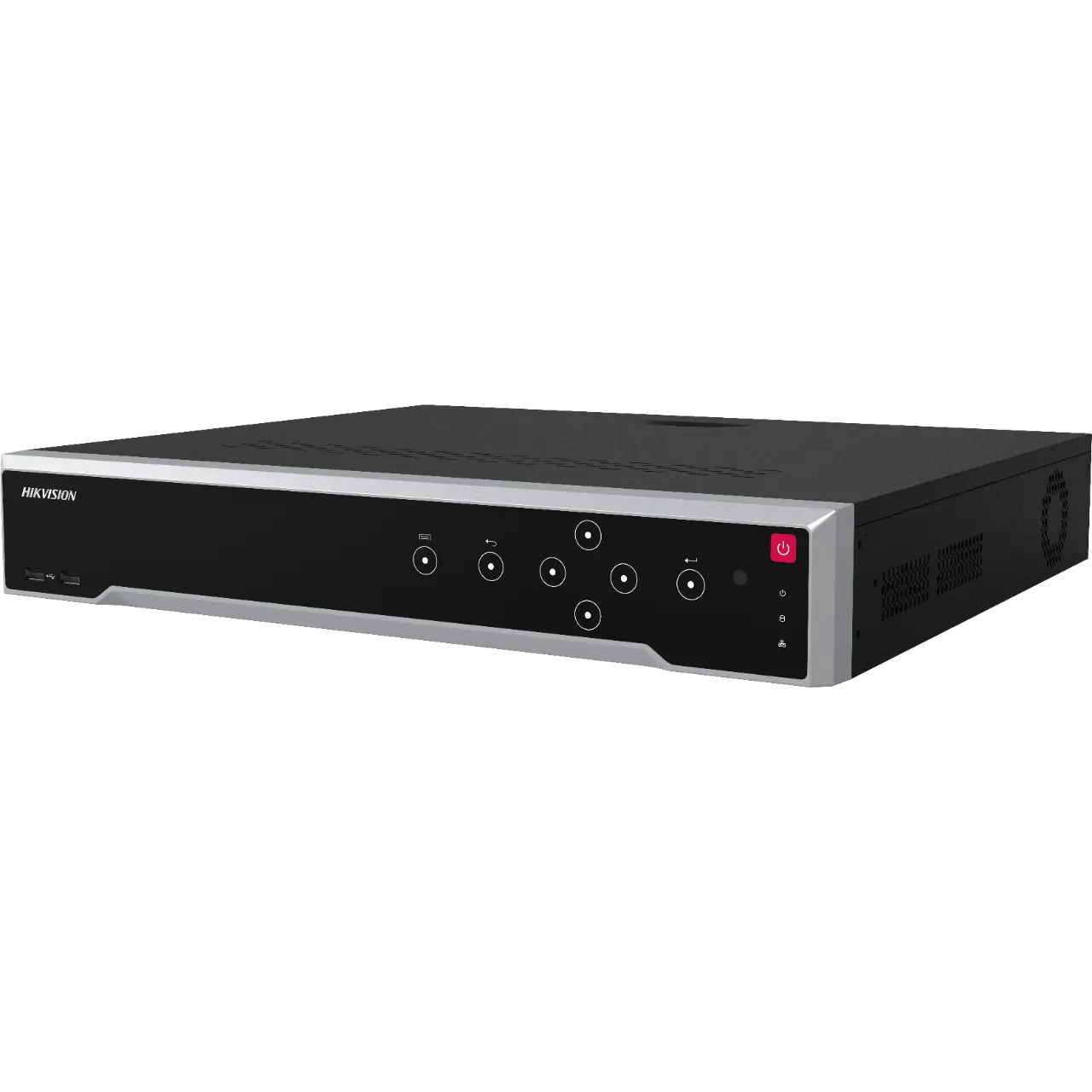

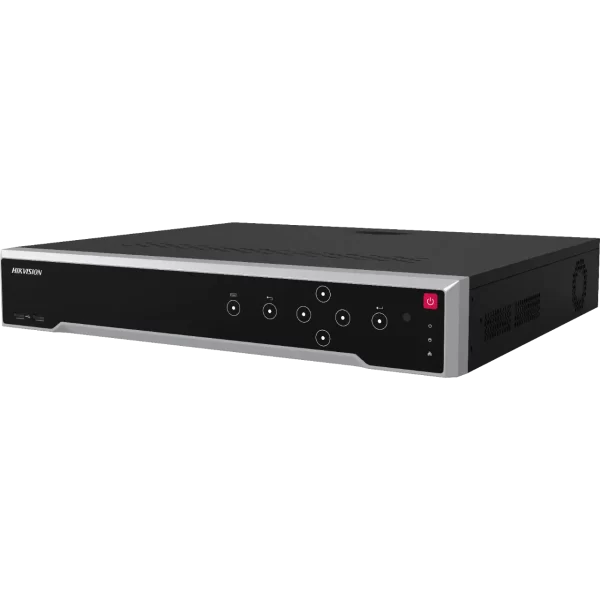

Hikvision DS-7716NI-K4/16P embedded plug & play 4K NVR with Up to 8 MP resolution

16-ch 1.5U 4K NVR

• Up to 16-ch IP camera inputs
• H.265+/H.265/H.264+/H.264 video formats
• Up to 2-ch@8 MP/4-ch@4 MP/8-ch@1080p decoding capacity
• Up to 160 Mbps incoming bandwidth

•

• • Video And Audio
  • IP Video Input16-ch
  • Incoming Bandwidth160 Mbps
  • Outgoing Bandwidth160 Mbps
  • HDMI Output1-ch, 4K (3840 × 2160)/30Hz, 2K (2560 × 1440)/60Hz, 1920 × 1080/60Hz, 1600 × 1200/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz
  • VGA Output1-ch, 1920 × 1080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz
  • Video Output ModeHDMI/VGA independent output
  • CVBS OutputN/A
  • Audio Output1-ch, RCA (Linear, 1 KΩ)
  • Audio Input1-ch, RCA (2.0 Vp-p, 1 KΩ)

  • Decoding
  • Decoding FormatH.265/H.265+/H.264+/H.264/MPEG4
  • Recording Resolution12 MP/8 MP/6 MP/5 MP/4 MP/3 MP/1080p/UXGA/ 720p/VGA/4CIF/DCIF/2CIF/CIF/QCIF
  • Synchronous Playback16-ch
  • Decoding Capability1-ch@12 MP (30 fps)/2-ch@8 MP (30 fps)/4-ch@4 MP (30 fps)/8-ch@1080p(30 fps)
  • Stream TypeVideo, Video & Audio
  • Audio CompressionG.711ulaw/G.711alaw/G.722/G.726

  • Network
  • Remote Connection128-ch
  • Network Interface2 RJ-45 10/100/1000 Mbps self-adaptive Ethernet interfaces
  • Network ProtocolTCP/IP, DHCP, IPv4, Hik-Connect, DNS, DDNS, NTP, RTSP, SADP, SMTP, SNMP, NFS, iSCSI, ISUP, UPnP™, HTTP, HTTPS

  • Auxiliary Interface
  • SATA4 SATA interfaces
  • CapacityUp to 10 TB capacity for each HDD
  • Serial Interface2 RS-485 (half-duplex), 1 RS-232
  • USB InterfaceFront panel: 2 × USB 2.0; Rear panel: 1 × USB 3.0
  • Alarm In/Out16/4 (16/9 is optional)
  • Ctrl 12VN/A (optional to support)
  • DC 12VN/A (optional to support)

  • General
  • Power Supply100 to 240 VAC, 50 to 60Hz
  • Consumption≤ 20 W (without HDD)
  • Working Temperature-10 °C to 55 °C (14 °F to 131 °F)
  • Working Humidity10 to 90 %
  • Dimension (W × D × H)445 × 400 × 75 mm ( 17.5″× 15.7″ × 3.0″)
  • Weight≤ 5 kg (without HDD, 11 lb.)

  • Certification
  • FCCPart 15 Subpart B, ANSI C63.4-2014
  • CEEN 55032: 2015, EN 61000-3-2, EN 61000-3-3, EN 50130-4, EN 55035: 2017
