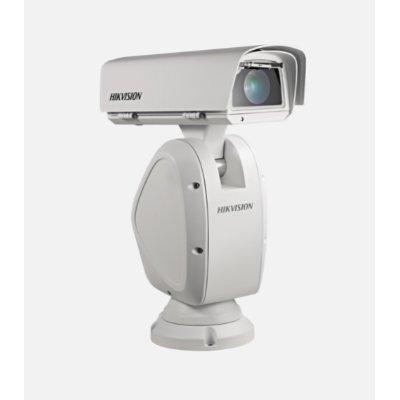

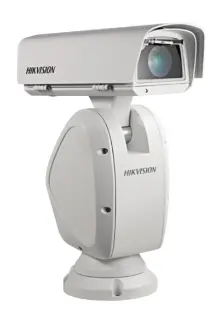

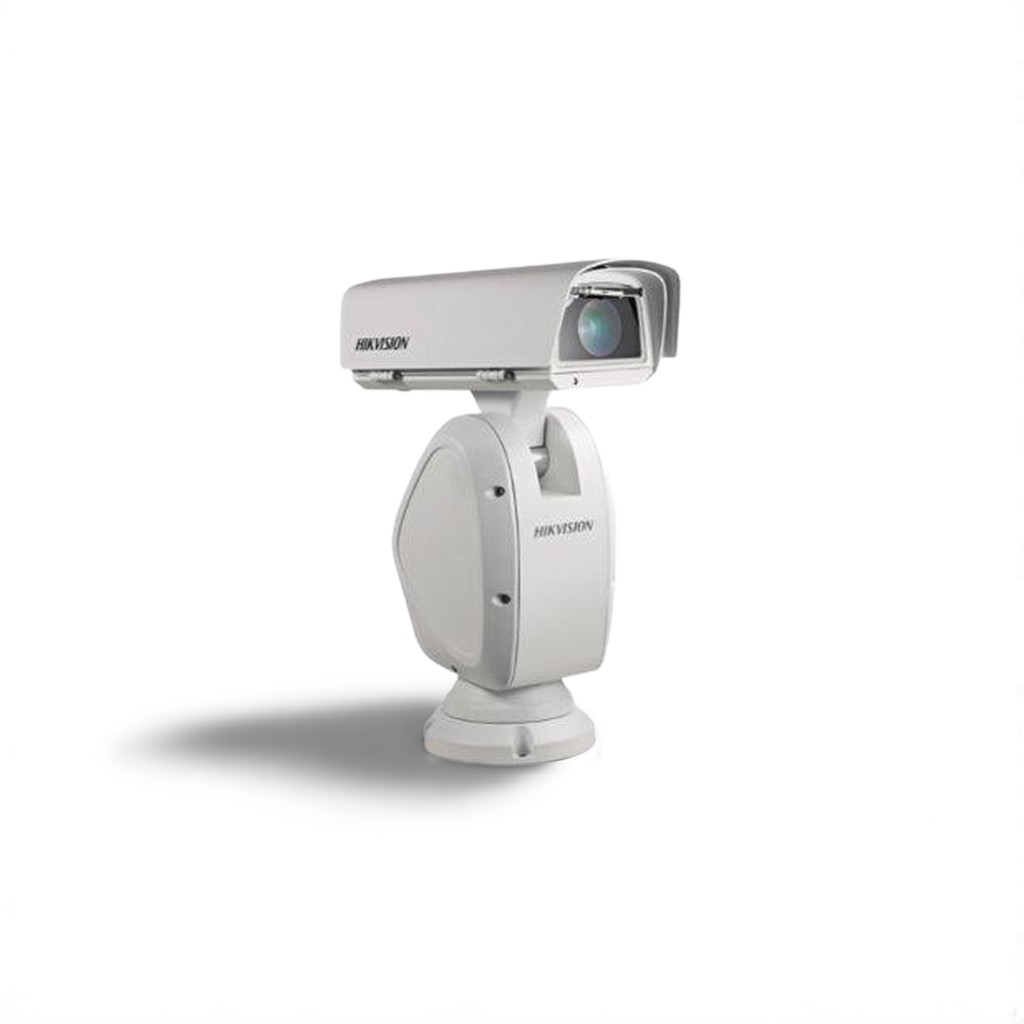

Hikvision DS-2DY9250X-A(T5) 9-inch 2 MP 50X Powered by DarkFighter Network Positioning System

GatewayPrice
PayPal$4,293.00
Add to wishlist
Compare

د.إ15,900.00 د.إ22,500.00

Compare

9-inch 2 MP 50X Powered by DarkFighter Network Positioning System

  • 1/1.8″ progressive scan CMOS
  • Up to 1920 × 1080 resolution
  • Min. illumination:Color: 0.005 Lux @(F1.2, AGC ON) ,B/W: 0.001 Lux @(F1.2, AGC ON)
  • Rain-sensing auto wiper
  • 50× optical zoom, 16×digital zoom
  • 140dB WDR, 3D DNR, HLC, BLC
  • 24 VAC
  • Support H.265+/H.265 video compression

Specification

  • Camera

  • Lens

  • PTZ

  • Video

  • Audio

  • Network

  • Image

  • Interface

  • Event

  • Deep Learning Function

  • General

  • Approval

  • Camera
  • Image Sensor1/1.8＂ progressive scan CMOS
  • Max. Resolution1920 × 1080
  • Min. IlluminationB/W: 0.001Lux@(F1.2，AGC ON)||color: 0.005Lux @ (F1.2，AGC ON)
  • Shutter Speed1/1s ~ 1/30,000s
  • Day & NightICR
  • Zoom50 × optical, 16 × digital
  • Lens
  • Focal Length6.0 mm to 300 mm, 50 × Optical
  • FOV

    Horizontal field of view: 56.6° to 1.4°(wide-tele)

    Vertical field of view: 33.7° to 0.9° (wide-tele),

    Diagonal field of view: 63.4° to 1.6° (wide-tele)

  • Focussemi-auto||manual||auto
  • ApertureF1.2
  • Zoom Speedapprox. 6.3 s
  • PTZ
  • Movement Range (Pan)360°
  • Movement Range (Tilt)+40° to -90°
  • Pan Speedpan speed: configurable from 0.1° to 120°/s; preset speed: 120°/s
  • Tilt Speedtilt speed: configurable from 0.1° to 50°/s, preset speed 50°/s
  • Proportional Panyes
  • Presets300
  • Preset Freezingyes
  • Patrol Scan8 patrols
  • Pattern Scan4 pattern scans
  • Park Actionpreset, pattern scan, patrol scan, auto scan, tilt scan, random scan, frame scan, panorama scan
  • 3D Positioningyes
  • PTZ Status Displayyes
  • Scheduled Taskpreset, pattern scan, patrol scan, auto scan, tilt scan, random scan, frame scan, panorama scan, dome reboot, dome adjust, aux output
  • Power-Off Memoryyes
  • Video
  • Main Stream

    50Hz: 25fps (1920 × 1080, 1280 × 960, 1280 × 720)

    60Hz: 30 fps (1920 × 1080, 1280 × 960, 1280 × 720)

  • Sub-Stream

    50Hz: 25fps (704 × 576, 640 × 480, 352 × 288)

    60Hz: 30fps (704 × 480, 640 × 480, 352 × 240)

  • Third Stream

    50Hz: 25fps (1920 × 1080, 1280 × 960, 1280 × 720, 704 × 576, 640 × 480, 352 × 288)

    60Hz: 30fps (1920 × 1080, 1280 × 960, 1280 × 720, 704 × 480, 640 × 480, 352 × 240)

  • Video CompressionH.265, H.264, MJPEG
  • H.264 Typebaseline profile, main profile, high profile
  • H.265 Typemain profile
  • Scalable Video Coding (SVC)yes
  • Region Of Interest (ROI)8 fixed regions for each stream
  • Audio
  • Audio CompressionG.711alaw, G.711ulaw, G.722.1, G.726, MP2L2, PCM
  • Network
  • ProtocolsIPv4/IPv6, HTTP, HTTPS, 802.1x, Qos, FTP, SMTP, UPnP, SNMP, DNS, DDNS, NTP, RTSP, RTCP, RTP, TCP/IP, UDP, IGMP, ICMP, DHCP, PPPoE, Bonjour
  • Simultaneous Live ViewUp to 20 channels
  • APIOpen-ended API, ISAPI, Hikvision SDK, Third-party management platform, Hik-Connect, ISUP, Open Network Video Interface
  • User/HostUp to 32 users. 3 levels: Administrator, Operator and User
  • SecurityAuthenticated username and password, MAC address binding, HTTPS encryption, 802.1X authenticated access, IP address filter
  • ClientiVMS-4200, iVMS-4500, iVMS-5200, Hik-Connect, HikCentral Pro
  • Web BrowserIE11, Chrome 57.0+, Firefox 52.0+, Safari 11+
  • Image
  • Wide Dynamic Range (WDR)140 dB WDR
  • Image StabilizationEIS; Built-in gyroscope to improve EIS performance.
  • Image EnhancementBLC, HLC, 3D DNR
  • Privacy Maskup to 24 masks, polygon region , mosaic mask , mask color configurable
  • Regional Focusyes
  • Regional Exposureyes
  • Interface
  • Ethernet Interface1 RJ45 10 M/100 M Ethernet Interface
  • On-Board StorageBuilt-in memory card slot, support Micro SD/Micro SDHC/Micro SDXC, up to 256 GB; NAS (NFS, SMB/ CIFS), ANR
  • Audio1 audio input, 2.0 to 2.4Vp-p, 1k Ohm±10%, 1 audio output, line level, impedance: 600 Ω
  • Alarm7 alarm inputs, 2 alarm outputs
  • RS-485Half duplex, HIKVISION, Pelco-P, Pelco-D, self-adaptive
  • Event
  • Basic Eventmotion detection, video tampering alarm, alarm input, alarm output, exception
  • Smart Eventintrusion detection, line crossing detection, region entrance detection, region exiting detection, unattended baggage detection, object removal detection
  • LinkageAlarm actions, such as Preset, Patrol Scan, Pattern Scan, Memory Card Video Record, Trigger Recording, Notify Surveillance Center, Upload to FTP/Memory Card/NAS, Send Email, etc.
  • Smart Trackingmanual tracking, event tracking
  • Deep Learning Function
  • Face CaptureSupport detecting up to 30 faces at the same time. Support detecting, tracking, capturing, grading, selecting of face in motion, and output the best face picture of the face.
  • General
  • Power24 VAC ± 25%, max. 100 W
  • Dimension180 mm × 390 mm × 491 mm (7.09″ × 15.35″ × 19.33″)
  • WeightApprox. 13 kg (28.66 lb)
  • MaterialAluminum alloy ADC12
  • Operating ConditionTemperature: -40°C to 70°C (-40°F to 158°F)，Humidity: ≤ 95%
  • General Functionmirror, password protection, watermark, IP address filter
  • Vandal-Proof Alarmyes
  • WiperYes. Rain-sensing auto control
  • Language32 languages: English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chinese, Thai, Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil)
  • Approval
  • ProtectionIP66 Standard, 6000V Lightning Protection, Surge Protection and Voltage Transient Protection
SKU: DS-2DY9250X-A(T5) Category:
