Network Positioning HiKvision

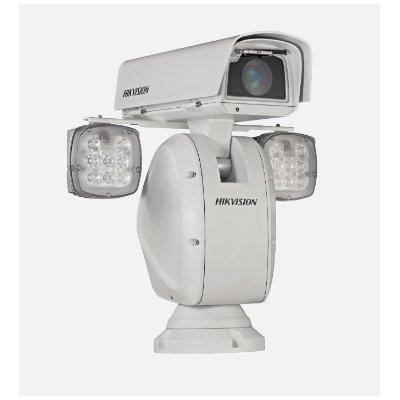

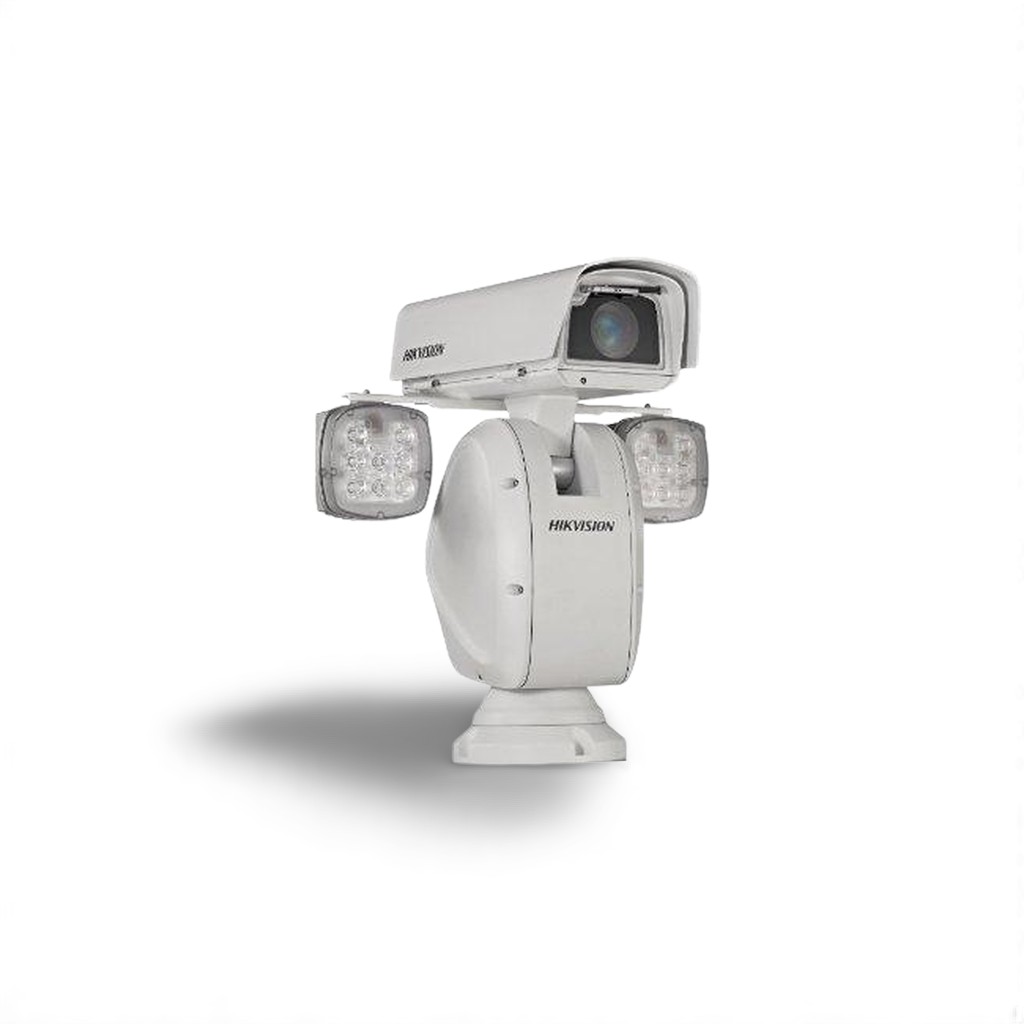

Hikvision DS-2DY9240IX-A(T5) 9-inch 2 MP 40X DarkFighter IR Network Positioning System
| Gateway | Price |
|---|---|
| PayPal | $4,185.00 |
د.إ15,500.00 د.إ15,910.00
9-inch 2 MP 40X DarkFighter IR Network Positioning System
- 1/1.8″ progressive scan CMOS
- Up to 1920 × 1080 resolution
- Min. illumination:Color: 0.005 Lux @(F1.2, AGC ON) ,B/W: 0.001 Lux @(F1.2, AGC ON),0 Lux with IR
- Rain-sensing auto wiper
- 40× optical zoom, 16×digital zoom
- 140dB WDR, 3D DNR, HLC, BLC, Smart IR
- 24 VAC
- Support H.265+/H.265 video compression
- Support up to 400 m IR distance
- Camera
- Image Sensor1/1.8＂ progressive scan CMOS
- Max. Resolution1920 × 1080
- Min. Illumination0 Lux with IR||B/W: 0.001Lux@(F1.2，AGC ON)||color: 0.005Lux @ (F1.2，AGC ON)
- Shutter Speed1/1s ~ 1/30,000s
- Day & NightICR
- Zoom40 × optical, 16 × digital
- Lens
- Focal Length6.0 mm to 240 mm, 40 × optical
- FOV
Horizontal field of view: 59.0 to 1.8° (wide-tele)
Vertical field of view: 33.7° to 1.1° (wide-tele),
Diagonal field of view: 63.4° to 2.1° (wide-tele)
- Focussemi-auto||manual||auto
- ApertureF1.2
- Zoom Speedapprox.5.6s
- Illuminator
- Supplement Light Rangeup to 400 m IR distance
- PTZ
- Movement Range (Pan)360°
- Movement Range (Tilt)+40° to -90°
- Pan Speedpan speed: configurable from 0.1° to 120°/s; preset speed: 120°/s
- Tilt Speedtilt speed: configurable from 0.1° to 50°/s, preset speed 50°/s
- Proportional Panyes
- Presets300
- Preset Freezingyes
- Patrol Scan8 patrols
- Pattern Scan4 pattern scans
- Park Actionpreset, pattern scan, patrol scan, auto scan, tilt scan, random scan, frame scan, panorama scan
- 3D Positioningyes
- PTZ Status Displayyes
- Scheduled Taskpreset, pattern scan, patrol scan, auto scan, tilt scan, random scan, frame scan, panorama scan, dome reboot, dome adjust, aux output
- Power-Off Memoryyes
- Video
- Main Stream
50Hz: 25fps (1920 × 1080, 1280 × 960, 1280 × 720)
60Hz: 30 fps (1920 × 1080, 1280 × 960, 1280 × 720)
- Sub-Stream
50Hz: 25fps (704 × 576, 640 × 480, 352 × 288)
60Hz: 30fps (704 × 480, 640 × 480, 352 × 240)
- Third Stream
50Hz: 25fps (1920 × 1080, 1280 × 960, 1280 × 720, 704 × 576, 640 × 480, 352 × 288)
60Hz: 30fps (1920 × 1080, 1280 × 960, 1280 × 720, 704 × 480, 640 × 480, 352 × 240)
- Video CompressionH.265, H.264, MJPEG
- H.264 Typebaseline profile, main profile, high profile
- H.265 Typemain profile
- Scalable Video Coding (SVC)yes
- Region Of Interest (ROI)8 fixed regions for each stream
- Audio
- Audio CompressionG.711alaw, G.711ulaw, G.722.1, G.726, MP2L2, PCM
- Network
- ProtocolsIPv4/IPv6, HTTP, HTTPS, 802.1x, Qos, FTP, SMTP, UPnP, SNMP, DNS, DDNS, NTP, RTSP, RTCP, RTP, TCP/IP, UDP, IGMP, ICMP, DHCP, PPPoE, Bonjour
- Simultaneous Live ViewUp to 20 channels
- APIOpen-ended API, ISAPI, Hikvision SDK, Third-party management platform, Hik-Connect, ISUP, Open Network Video Interface
- User/HostUp to 32 users. 3 levels: Administrator, Operator and User
- SecurityAuthenticated username and password, MAC address binding, HTTPS encryption, 802.1X authenticated access, IP address filter
- ClientiVMS-4200, iVMS-4500, iVMS-5200, Hik-Connect, HikCentral Pro
- Web BrowserIE11, Chrome 57.0+, Firefox 52.0+, Safari 11+
- Image
- Wide Dynamic Range (WDR)140 dB WDR
- Image StabilizationEIS; Built-in gyroscope to improve EIS performance.
- Image EnhancementBLC, HLC, 3D DNR
- Privacy Maskup to 24 masks, polygon region , mosaic mask , mask color configurable
- Regional Focusyes
- Regional Exposureyes
- Interface
- Ethernet Interface1 RJ45 10 M/100 M Ethernet Interface
- On-Board StorageBuilt-in memory card slot, support Micro SD/Micro SDHC/Micro SDXC, up to 256 GB; NAS (NFS, SMB/ CIFS), ANR
- Audio1 audio input, 2.0 to 2.4Vp-p, 1k Ohm±10%, 1 audio output, line level, impedance: 600 Ω
- Alarm7 alarm inputs, 2 alarm outputs
- RS-485Half duplex, HIKVISION, Pelco-P, Pelco-D, self-adaptive
- Event
- Basic Eventmotion detection, video tampering alarm, alarm input, alarm output, exception
- Smart Eventunattended baggage detection, object removal detection, Intrusion Detection, Line Crossing Detection, Region Entrance Detection, Region Exiting Detection, Audio Exception Detection
- LinkageAlarm actions, such as Preset, Patrol Scan, Pattern Scan, Memory Card Video Record, Trigger Recording, Notify Surveillance Center, Upload to FTP/Memory Card/NAS, Send Email, etc.
- Smart Trackingmanual tracking, event tracking
- Deep Learning Function
- Face CaptureSupport detecting up to 30 faces at the same time. Support detecting, tracking, capturing, grading, selecting of face in motion, and output the best face picture of the face.
- General
- Power24 VAC ± 25%, max. 100 W
- Dimension460 mm × 390 mm × 491 mm (18.11″ × 15.35″ × 19.33″)
- WeightApprox. 15 kg (33.07 lb)
- MaterialAluminum alloy ADC12
- Operating ConditionTemperature: -40°C to 70°C (-40°F to 158°F)，Humidity: ≤ 95%
- General Functionmirror, password protection, watermark, IP address filter
- Vandal-Proof Alarmyes
- WiperYes. Rain-sensing auto control
- Language32 languages: English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chinese, Thai, Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil)
- Approval
- ProtectionIP66 Standard, 6000V Lightning Protection, Surge Protection and Voltage Transient Protection
