Hikvision DS-2CD6445G1-XX 4MP Covert Pinhole IP camera PoE WDR Audio&Alarm I/O
| Gateway | Price |
|---|---|
| PayPal | $322.76 |
د.إ1,195.40

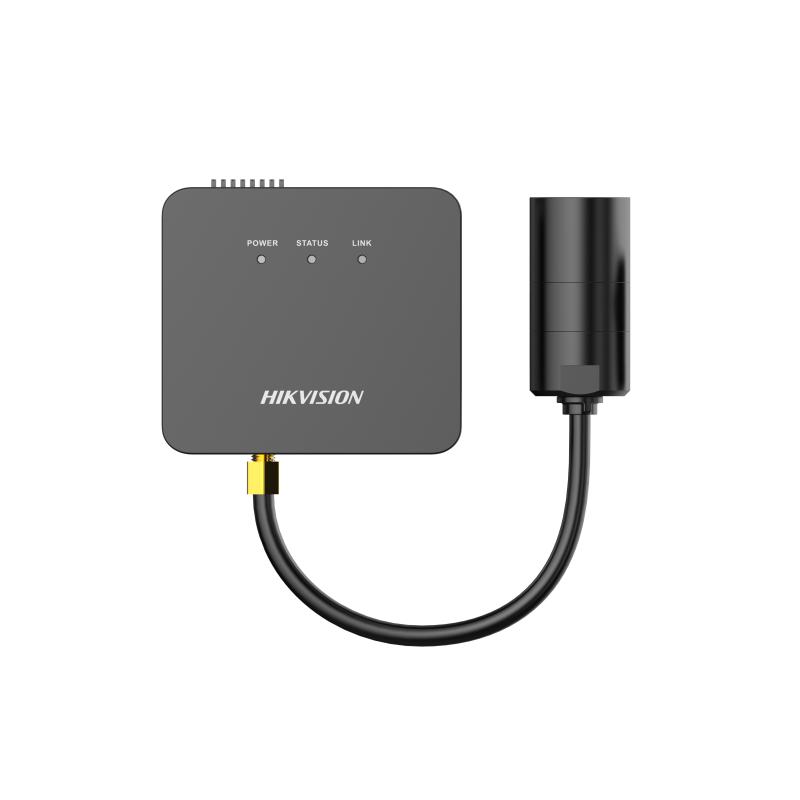

CompareSeparated Network Camera
- High quality imaging with 4 MP resolution
- Efficient H.265+ compression technology to save bandwidth and storage
- Clear imaging against strong back light due to 120 dB true WDR technology
- Audio and alarm interface available
- 3D DNR technology delivers clean and sharp images
Available models:
Specification
-
Camera
-
Lens
-
DORI
-
Video
-
Audio
-
Network
-
-
Interface
-
Event
-
General
-
Approval
- Camera
- Image Sensor1/3″ Progressive Scan CMOS
- Max. Resolution2560 × 1440
- Min. IlluminationColor: 0.005 Lux @ (F1.2, AGC ON)
- Shutter Time1/3 s to 1/100,000 s
- Lens
- Focal Length & FOV
2.8 mm: horizontal FOV: 98°, vertical FOV: 53°, diagonal FOV: 115°
4 mm: horizontal FOV: 75°, vertical FOV: 41.5°, diagonal FOV: 88°
- Lens MountM12
- Iris TypeFixed
- Aperture
2.8 mm: F2.0
4 mm: F2
- DORI
- DORI
2.8 mm: D: 62 m, O: 24.6 m, R: 12.4 m, I: 6.2 m
4 mm: D: 80 m, O: 31.7 m, R: 16 m, I: 8 m
- Video
- Main Stream
50 Hz: 25 fps (2560 × 1440, 1920 × 1080, 1280 × 720)
60 Hz: 30 fps (2560 × 1440, 1920 × 1080, 1280 × 720)
- Sub-Stream
50 Hz: 25 fps (640 × 480, 640 × 360, 320 × 240)
60 Hz: 30 fps (640 × 480, 640 × 360, 320 × 240)
- Third Stream
50 Hz: 1 fps (1280 × 720, 640 × 480, 640 × 360, 320 × 240)
60 Hz: 1 fps (1280 × 720, 640 × 480, 640 × 360, 320 × 240)
- Video Compression
Main stream: H.265/H.264
Sub-stream: H.265/H.264/MJPEG
Third stream: H.265/H.264
- H.264 TypeBaseline Profile/Main Profile/High Profile
- H.265 TypeMain Profile
- Bit Rate ControlCVR/BVR
- Scalable Video Coding (SVC)H.264 and H.265 encoding
- Region of Interest (ROI)Support 1 fixed region for main stream
- Audio
- Audio TypeMono
- Audio CompressionG.711/G.722.1/G.726/MP2L2/PCM/AAC
- Audio Bit Rate64 Kbps (G.711)/16 Kbps (G.722.1)/16 Kbps (G.726)/32 to 192 Kbps (MP2L2)/16 to 64 Kbps (AAC)
- Audio Sampling Rate8 kHz/16 kHz/32 kHz
- Environment Noise FilteringYes
- Network
- ProtocolsTCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, NTP, UPnP, SMTP, SNMP, IGMP, 802.1X, QoS, IPv6, UDP, Bonjour, SSL/TLS
- Simultaneous Live ViewUp to 15 channels
- APIOpen Network Video Interface, ISAPI, SDK, ISUP 5.0
- User/Host
Up to 32 users
3 level: administrator, operator, and user
- Network StorageNAS (NFS, SMB/CIFS)
- ClientiVMS-4200, Hik-Connect
- Web Browser
Plug-in required live view: IE10, IE11
Plug-in free live view: Chrome 57.0+, Firefox 52.0+
Local service: Chrome 57.0+, Firefox 52.0+
- Image
- Image Parameters SwitchYes
- Image SettingsSaturation, brightness, contrast, and sharpness adjustable by client software or web browser
- Day/Night SwitchDay, Night, Auto, Schedule
- Wide Dynamic Range (WDR)120 dB
- Image EnhancementBLC, HLC, defog, 3D DNR
- Privacy MaskYes
- Interface
- Ethernet Interface1 RJ45 10 M/100 M self-adaptive Ethernet port
- On-Board StorageBuilt-in memory card slot, support MicroSD/MicroSDHC/MicroSDXC card, up to 256 GB
- Audio1 input (line in), 1 output (line out)
- Alarm1 input, 1 output (max. 12 VDC, 30 mA)
- RS-4851 RS-485 (half duplex, HIKVISION, Pelco-P, Pelco-D, self-adaptive)
- Reset KeyYes
- Event
- Basic EventMotion detection, video tampering alarm, exception (HDD full, HDD error, network disconncected), video quality diagnosis
- Smart Event
Intrusion detection, line crossing detection, region entrance detection, region exiting detection, unattended baggage detection, object removal detection
Audio exception detection, defocus detection, scene change detection
- LinkageUpload to FTP/NAS/memory card, notify surveillance center, send email, trigger recording, trigger capture, audible warning
- General
- Power
12 VDC ± 20%, 0.25 A, max. 3 W, two-core terminal block
PoE: 802.3af, Type 1, Class 3, 36 V to 57 V,0.1 A to 0.07A, max. 3.65 W
- Dimension

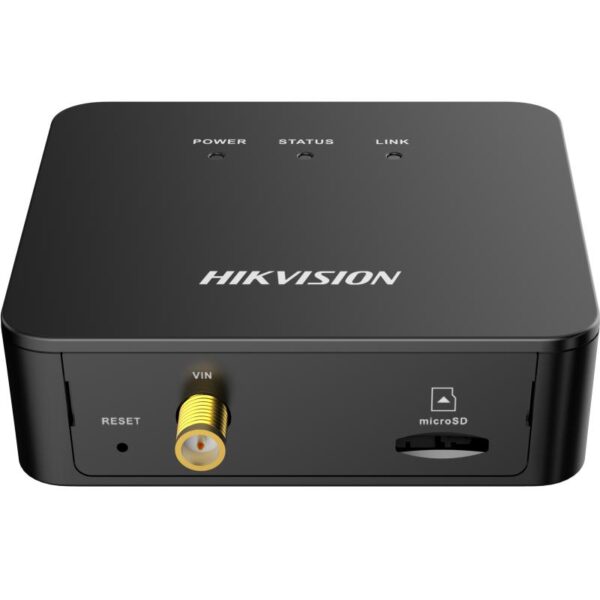

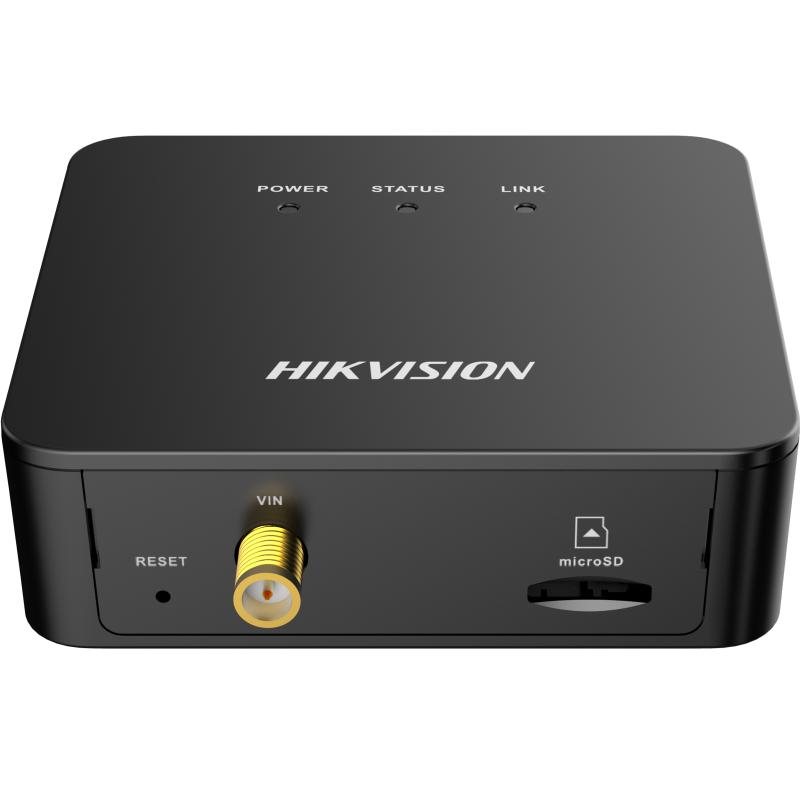

Main body: 77.5 mm × 69 mm × 26 mm (3.1″ × 2.7\” × 1.0\”)

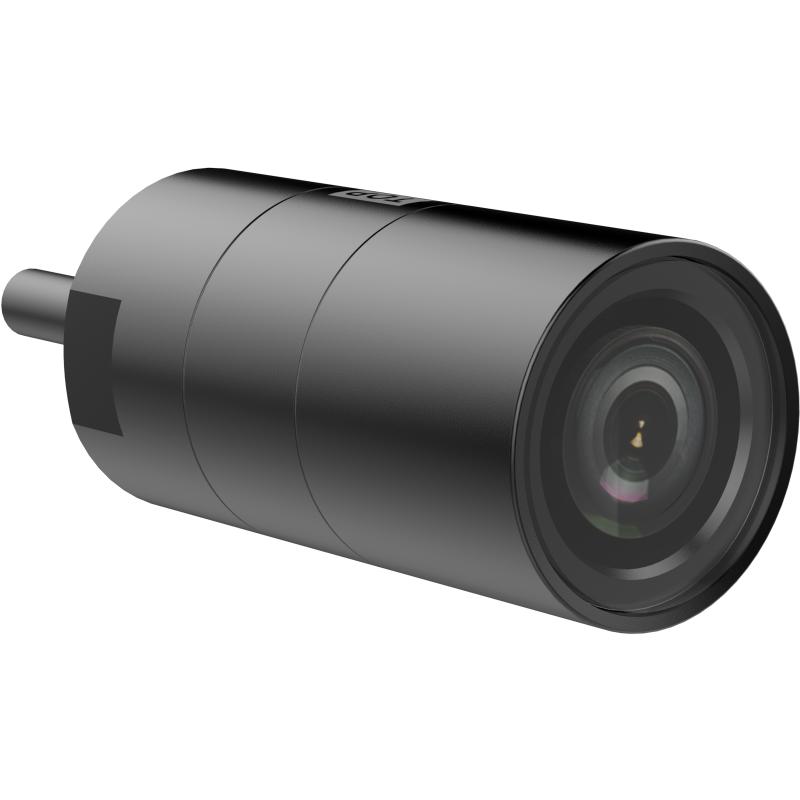

L30: Ø26 mm × 50 mm (Ø1.0 × 2.0\”)”
- Package Dimension
Kit/Main body: 254 mm × 164 mm × 130 mm (10″ × 6.5\” × 5.1\”)
Camera: 219 mm × 139 mm × 100 mm (8.6 × 5.5\” × 3.9\”)”
- Weight
Main body: approx. 90 g (0.2 lb.)
Camera: approx. 90 g (0.2 lb.)
- With Package Weight
Main body: approx. 456 g (1.0 lb.)
Package (with 8 m cable): approx. 991 g (2.2 lb.)
Package (with 2 m cable): approx. 776 g (1.7 lb.)
Camera (with 8 m cable): approx. 676 g (1.5 lb.)
Camear (with 2 m cable): approx. 451 g (1.0 lb.)
- Storage Conditions-30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)
- Startup and Operating Conditions-30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)
- Language18 languages: English, Traditional Chinese, Russian, Turkish, Japanese, Korean, Thai, Vietnamese, Estonian, Bulgarian, Hungarian, Czech, Slovak, French, Italian, German, Spanish, Portuguese
- General FunctionOne-key reset, heartbeat, mirror, password protection, privacy mask, rotate, watermark, IP address filter
- Length of Lens Cable2 m (6.6 ft.) and 8 m (26.2 ft.) optional
- Approval
- EMC
FCC (47 CFR Part 15, Subpart B);
CE-EMC (EN 55032: 2015, EN 61000-3-2:2019, EEN 61000-3-3:2013+A1:2019, EN 50130-4: 2011+A1: 2014);
RCM (AS/NZS CISPR 32: 2015);
IC (ICES-003: Issue 7);
KC (KN 32: 2015, KN 35: 2015)
- Safety
UL (UL 62368-1);
CB (IEC 62368-1:2014+A11);
CE-LVD (EN 62368-1:2014/A11:2017);
BIS (IS 13252(Part 1):2010/ IEC 60950-1 : 2005);
LOA (IEC/EN 60950-1)
- Environment
CE-RoHS (2011/65/EU);
WEEE (2012/19/EU);
Reach (Regulation (EC) No 1907/2006)
