-15%
Network Positioning HiKvision

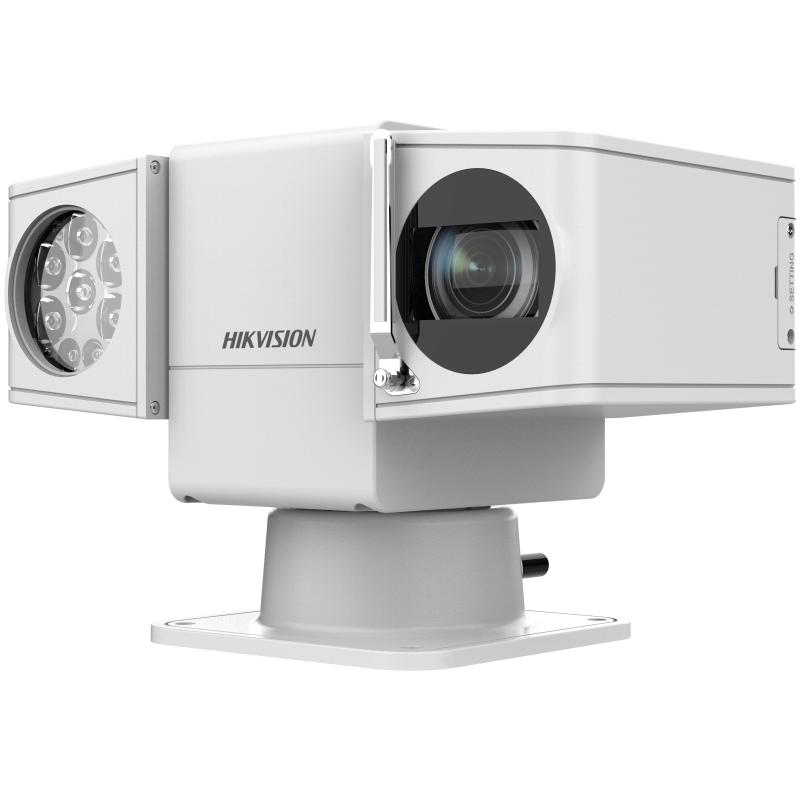

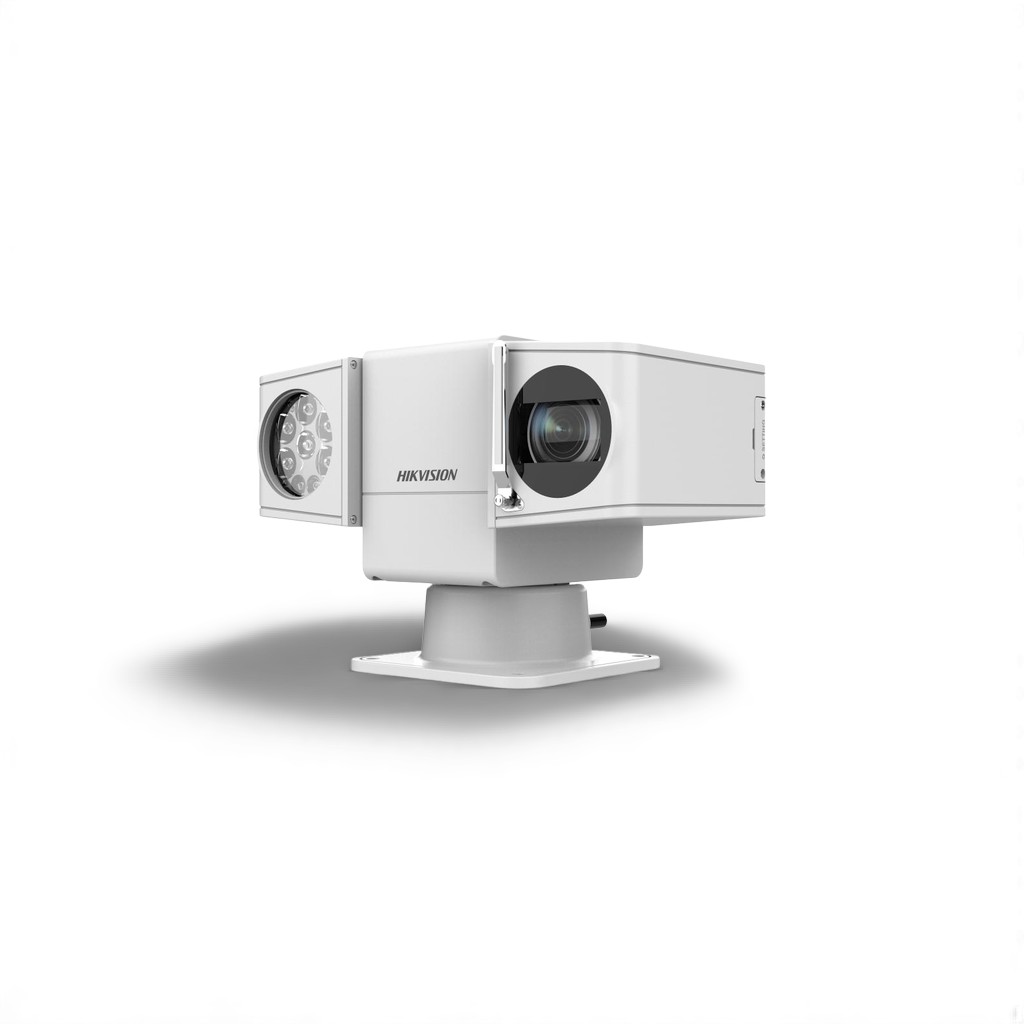

Hikvision DS-2DY5225IX-AE 2MP Outdoor PTZ Network Positioning Camera with Night Vision, Heater & Wiper
| Gateway | Price |
|---|---|
| PayPal | $1,957.50 |
د.إ7,250.00 د.إ8,500.00
5-inch 2 MP 25X DarkFighter IR Network Positioning System
- 1/1.8″ progressive scan CMOS
- Up to 1920 × 1080 @ 30 fps resolution
- Min. illumination: Color: 0.005 Lux @ (F1.5, AGC ON), B/W: 0.001 Lux @(F1.5, AGC ON), 0 Lux with IR
- 25 × optical zoom, 16 × digital zoom
- Low bit rate, true WDR, Defog, Smart IR
- Power-off memory, proportional zoom
- Up to 250 m IR distance
- Support Hi-PoE
Specification
-
Camera
-
Lens
-
Illuminator
-
PTZ
-
Video
-
Audio
-
Network
-
-
Interface
-
Event
-
Deep Learning Function
-
General
-
Approval
- Camera
- Image Sensor1/1.8＂ progressive scan CMOS
- Max. Resolution1920 × 1080
- Min. Illuminationcolor: 0.005 Lux @ (F1.5, AGC ON), B/W: 0.001 Lux @ (F1.5, AGC ON), 0 Lux with IR
- Shutter Speed1/1s~1/30000 s
- Day & NightICR
- Zoom25 × optical, 16 × digital
- Slow ShutterYes
- Lens
- Focal Length5.9~147.5 mm，25 × optical
- FOV
Horizontal FOV: 55.4° to 2.1° (wide-tele),
Vertical FOV: 32.4° to1.2° (wide-tele),
Diagonal FOV: 62° to 3.3° (wide-tele)
- FocusAuto/Semi-automatic/Manual
- ApertureF1.5
- Zoom Speedapprox. 4.8 s
- Illuminator
- Supplement Light TypeIR
- Supplement Light Range250 m
- Smart Supplement LightYes
- PTZ
- Movement Range (Pan)360° endless
- Movement Range (Tilt)From +90° to -90° (auto flip)
- Pan Speed
Configurable, from 0.1°/s to 150°/s,
Preset speed: 150°/s
- Tilt Speed
Configurable, from 0.1°/s to 80°/s
Preset Speed: 80°/s
- Proportional PanYes
- Presets300
- Preset FreezingYes
- Patrol Scan8 patrols, up to 32 presets for each patrol
- Pattern Scan4 pattern scans, record time over 10 minutes for each scan
- Park ActionPreset/Pattern Scan/Patrol Scan/Auto Scan/Tilt Scan/Random Scan/Frame Scan/Panorama Scan
- 3D PositioningYes
- PTZ Status DisplayYes
- Scheduled TaskPreset/Pattern Scan/Patrol Scan/Auto Scan/Tilt Scan/Random Scan/Frame Scan/Panorama Scan/Dome Reboot/Dome Adjust/Aux Output
- Power-Off MemoryYes
- Video
- Main Stream
50 Hz: 25 fps (1920 × 1080, 1280 × 960, 1280 × 720)
60 Hz: 30 fps (1920 × 1080, 1280 × 960, 1280 × 720)
- Sub-Stream
50 Hz: 25 fps (704 × 576, 640 × 480, 352 × 288)
60 Hz: 30 fps (704 × 480, 640 × 480, 352 × 240)
- Third Stream
50 Hz: 25 fps (1920 × 1080, 1280 × 960, 1280 × 720, 704 × 576, 640 × 480, 352 × 288)
60 Hz: 30 fps (1920 × 1080, 1280 × 960, 1280 × 720, 704 × 480, 640 × 480, 352 × 240)
- Video Compression
Main Stream: H.265+/H.265/H.264+/H.264
Sub-stream: H.265/H.264/MJPEG
Third Stream: H.265/H.264/MJPEG
- Video Bit Rate32 Kbps to 16384 Kbps
- H.264 TypeBaseline Profile/Main Profile/High Profile
- H.265 TypeMain Profile
- Scalable Video Coding (SVC)Support
- Region Of Interest (ROI)8 fixed regions for each stream
- Audio
- Audio CompressionG.711alaw, G.711ulaw, G.722.1, G.726, MP2L2, PCM
- Audio Bit Rate64 Kbps (G.711)/16 Kbps (G.722.1)/16 Kbps (G.726)/32-192 Kbps (MP2L2)
- Audio Sampling Rate8 kHz/16 kHz/32 kHz/48 kHz
- Environment Noise FilteringYes
- Network
- ProtocolsIPv4/IPv6, HTTP, HTTPS, 802.1x, QoS, FTP, SMTP, UPnP, SNMP, DNS, DDNS, NTP, RTSP, RTCP, RTP, TCP/IP, UDP, IGMP, ICMP, DHCP, PPPoE, Bonjour
- Simultaneous Live ViewUp to 20 channels
- APIOpen Network Video Interface (Version 19.12, Profile S, Profile G, Profile T), ISAPI, SDK, ISUP
- User/HostUp to 32 users, 3 user levels: administrator, operator, and user
- SecurityPassword protection, complicated password, HTTPS encryption, 802.1X authentication (EAP-TLS, EAP-LEAP, EAP-MD5), watermark, IP address filter, basic and digest authentication for HTTP/HTTPS, RTP/RTSP over HTTPS, control timeout settings, security audit log, TLS 1.2, TLS 1.3, host authentication (MAC address)
- Network StorageNAS (NFS, SMB/CIFS), auto network replenishment (ANR)
- ClientiVMS-4200, HikCentral Pro, Hik-Connect
- Web BrowserIE11, Chrome 57+, Firefox 52+, Safari 11+
- Image
- Image Parameters SwitchYes
- Image SettingsSaturation, brightness, contrast, sharpness, gain, and white balance adjustable by client software or web browser
- Day/Night SwitchDay, Night, Auto, Schedule
- Wide Dynamic Range (WDR)120 dB WDR
- SNR≥52dB
- DefogDigital defog
- Image StabilizationEIS
- Image EnhancementBLC, HLC, 3D DNR
- Privacy Mask24 programmable polygon privacy masks, mask color or mosaic configurable
- Regional FocusYes
- Regional ExposureYes
- Interface
- Ethernet Interface1 RJ45 10 M/100 M Ethernet
- On-Board Storagesupport microSD/microSDHC/microSDXC cards, up to 256 GB
- Audio1-ch audio input and 1-ch audio output
- Alarm7-ch alarm input and 2-ch alarm output
- RS-4851 RS-485 (Half duplex, HIKVISION, Pelco-P, Pelco-D, self-adaptive)
- ResetYes
- Event
- Basic EventMotion detection, video tampering alarm, exception, alarm input and output
- Smart EventLine crossing detection, intrusion detection, region entrance detection, region exiting detection, unattended baggage detection, object removal detection, audio exception detection
- LinkageUpload to FTP/NAS/memory card, notify surveillance center, send email, trigger alarm output, trigger recording, and PTZ actions (such as preset, patrol scan, pattern scan)
- Smart TrackingManual tracking, Event tracking
- Deep Learning Function
- Face CaptureSupport detecting up to 10 faces at the same time. Support detecting, tracking, capturing, grading, selecting of face in motion, and output the best face picture of the face.
- General
- Power
24 VAC, 3 A, max. 45 W, including max. 1.6 W for heater and 10 W for IR
36 VDC
Hi-POE, 42.5~57 V| 1.41 A
- DimensionØ332 mm × 182 mm × 222 mm (Ø 13.07″ × 7.17″ × 8.74″)
- WeightApprox. 7.7 kg (16.98 lb.)
- MaterialADC12
- Operating ConditionTemperature: Outdoor: -40°C to 70°C (-40°F to 158°F), Humidity: ≤ 90%
- WiperYes
- Approval
- ProtectionIP66, TVS 6000V Lightning Protection, Surge Protection and Voltage Transient Protection
