Specifications
-
Hign-concerned ChemicalNoneModel NumberMT-HD0808
-
DIY SuppliesELECTRICALOriginMainland China
-
Private MoldYesBrand NameMT-ViKI
-
Place of OriginGuangdong, ChinaProduct name4K HDMI matrix switch
-
Input interface8xhdmioutput interface8xhdmi
-
FeatureSupport 3D, deep color 48/36/30/24-bitResolution4K@30Hz, 1080P@60Hz
-
Warranty1 YearProduct Size448*250*45mm
-
MaterialMetal HousingPower supplyDC5V
Description
Series Available





Product Description
About this item

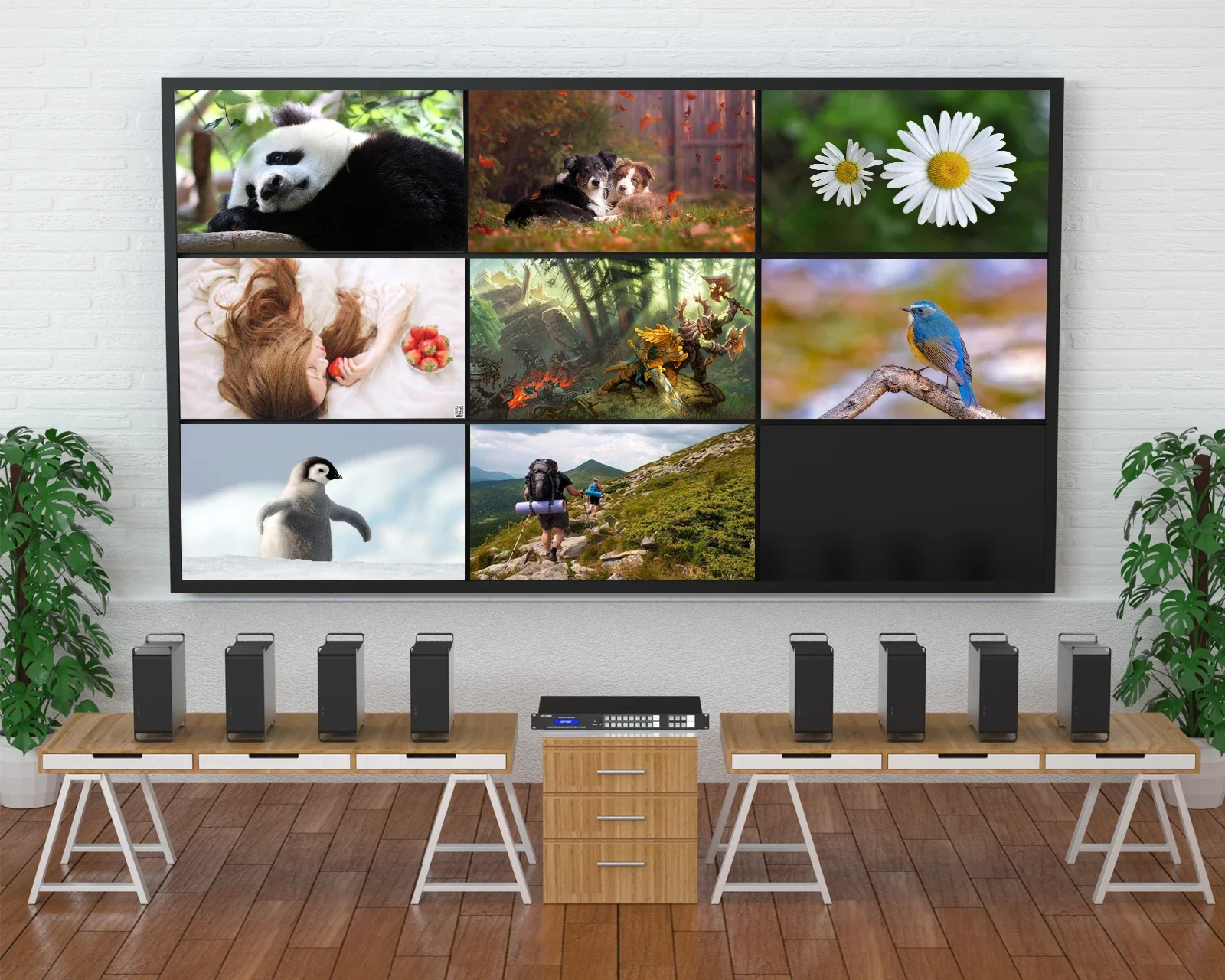

This 8 in 8 out HDMI matrix switch is a high-perfomance professional switching device with embedded intelligent control, which is used to switch each audio and video input signal to any output channel. Support switch via Pane; button, IR, RS232 and Web.
Noted: The factory setting does not contain a web card, and the web control function needs to be requested, and there is an additional cost requirement.
Product Features
*The whole hardware architecture has no CPU and operating system, and the operation response is faster;
*Modular design of all boards, support hot plug, stable and reliable system;
*Using the original 12.75G high-bandwidth imported switching chip from the United States, so that all signals can be switched
synchronously;
*The signal of each port supports HDCP decoding, Blu-ray, 3D;
*Support signal timing reconfiguration, 36-bit true color technology;
*Support fast channel switching, one-to-one correspondence, and quick save and recall of scene modes;
*Support maximum resolution: 4K x 2K @ 30Hz, 1080P 3D @ 60Hz;

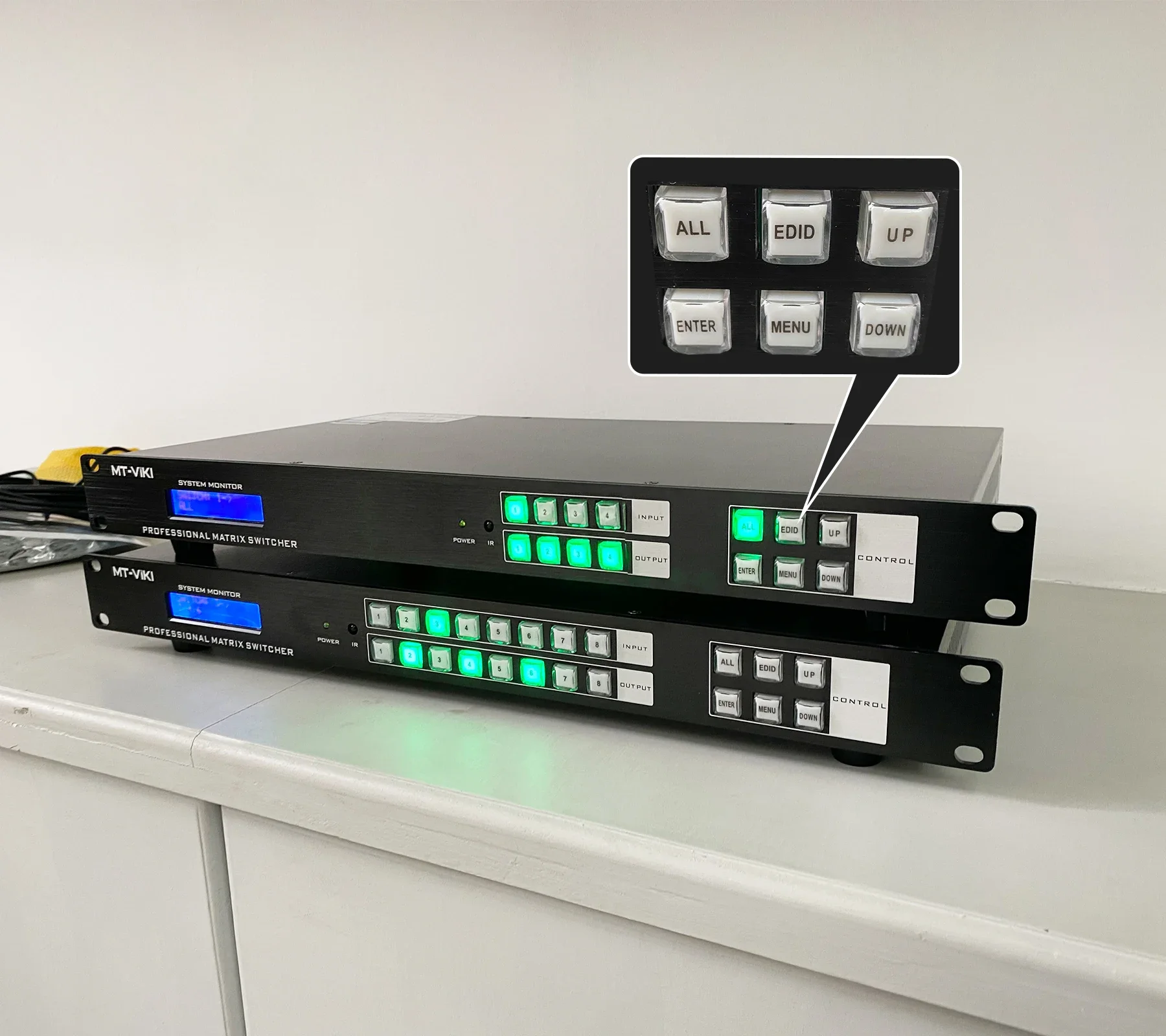

*Visual operation buttons, the status of input and output channels can be visualized through the button indicator;
* Radio and television-level exchange chip, image switching can be completed by a single chip, and the integration is higher;
*Supports multiple control methods such as buttons, infrared remote control, RS232 serial port, and optional WEB control;
*Support EDID rewritable and EDID self-adaptive function, better adapt to on-site diversified display equipment, improve
compatibility;
*Long-line drive capability: The input has automatic equalization, which effectively reduces the deterministic jitter caused by line transmission
*Output adjustable gain mode, so that the receiver can still receive signals after long-distance transmission. Use high-quality HDMI 1.4 cable, input transmission distance up to 20 meters, output transmission distance up to 25 meters;
*The input supports receiving delay and effectively responds to time compensation when the differential pairs are not of equal length;
*Power-off memory on-site protection function, automatically save the current scene state
*The host display adopts English high-resolution display, which supports LOGO and model programming customization.
*Modular design of all boards, support hot plug, stable and reliable system;
*Using the original 12.75G high-bandwidth imported switching chip from the United States, so that all signals can be switched
synchronously;
*The signal of each port supports HDCP decoding, Blu-ray, 3D;
*Support signal timing reconfiguration, 36-bit true color technology;
*Support fast channel switching, one-to-one correspondence, and quick save and recall of scene modes;
*Support maximum resolution: 4K x 2K @ 30Hz, 1080P 3D @ 60Hz;
*Visual operation buttons, the status of input and output channels can be visualized through the button indicator;
* Radio and television-level exchange chip, image switching can be completed by a single chip, and the integration is higher;
*Supports multiple control methods such as buttons, infrared remote control, RS232 serial port, and optional WEB control;
*Support EDID rewritable and EDID self-adaptive function, better adapt to on-site diversified display equipment, improve
compatibility;
*Long-line drive capability: The input has automatic equalization, which effectively reduces the deterministic jitter caused by line transmission
*Output adjustable gain mode, so that the receiver can still receive signals after long-distance transmission. Use high-quality HDMI 1.4 cable, input transmission distance up to 20 meters, output transmission distance up to 25 meters;
*The input supports receiving delay and effectively responds to time compensation when the differential pairs are not of equal length;
*Power-off memory on-site protection function, automatically save the current scene state
*The host display adopts English high-resolution display, which supports LOGO and model programming customization.

Product Specifics
Product name
|
4K HDMI matrix switch 8X8
|
Input
|
8* HDMI
|
Ouput
|
8* HDMI
|
Device height
|
2U
|
Support resolution
|
480i, 576i, 480p, 576p, 720p ,1080i, 1080p@24/30/50/60/120Hz, 1080P 3D@60Hz, 4K*2K@30Hz
|
Control interface
|
1* RS-232 IN, 1* RS-232 OUT, 1* RJ-45(optical)
|
Protocol standard
|
Support EDID management and rewritable, HDCP decoding
|
Color space
|
Support RGB444, YUV444, YUV422 color space, support x.v.Color extended color gamut standard
|
Electrostatic protection
|
Human discharge mode: ± 8kV (air gap discharge) ± 4kV (contact discharge)
|
Control method
|
Standard button, RS232, IR control switching; optional WEB
|
Power adapter
|
AC:110V-240V 50/60Hz DC:12V/3A
|
Input voltage
|
Power AC 100V ~ 260VAC, 50/60 Hz
|
Power consumption
|
30W(max)
|
Dimension(mm)
|
480mm × 252mm × 57mm
|
Weight
|
3.2Kg
|
Operating temperature
|
0 ºC~40 ºC/32 ºF~104 ºF
|
Storage temperature
|
−20 ºC~60 ºC/−4 ºF~140 ºF
|
Packing & Delivery

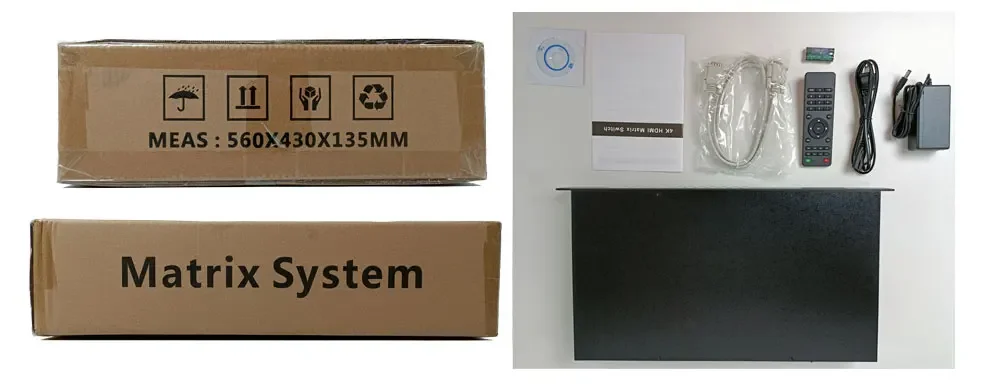

Packing Contents:
1* HDMI matrix switch
1* Power adapter
1* CD
1* User manual
1* IR remote
1* RS232 cable
Delivery time:
About 7 days if product in stock
About 25 days if OEM
