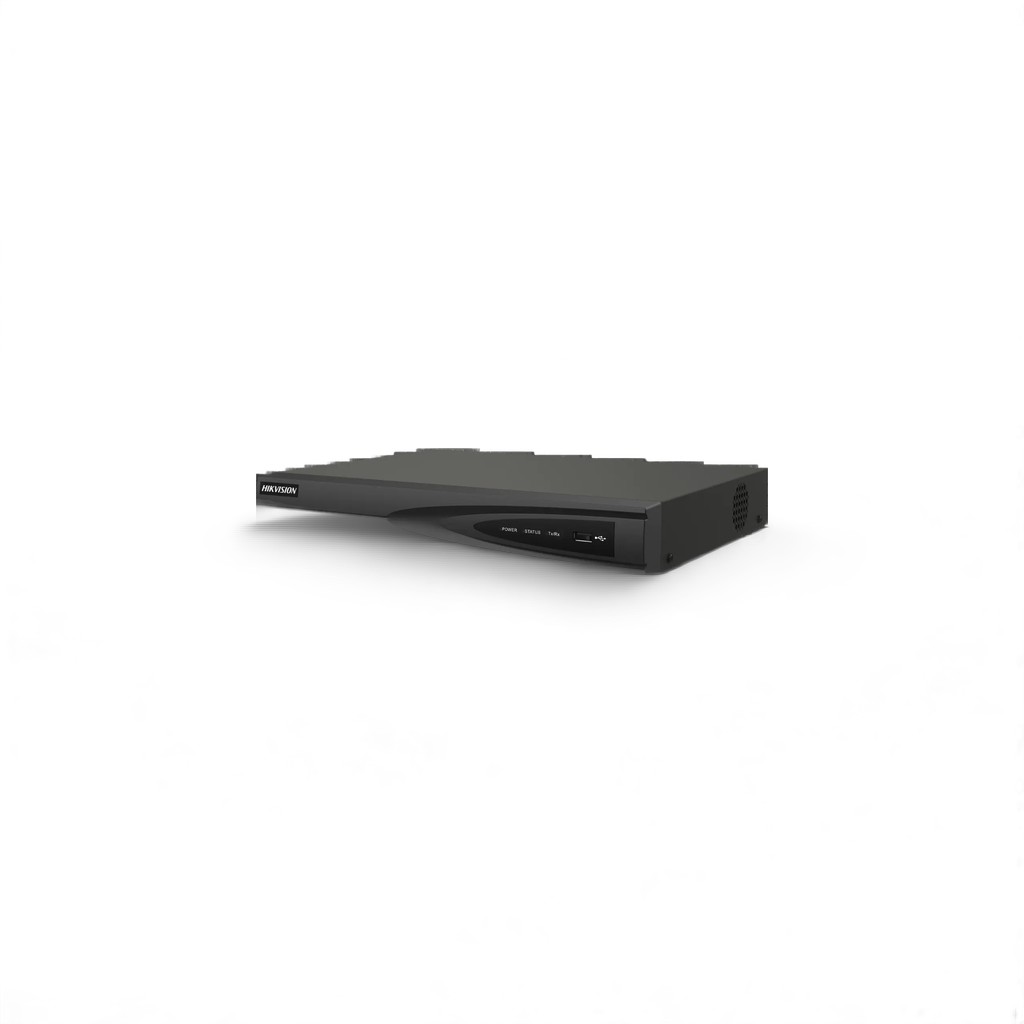

NVR 4CH Hikvision IP NO POE DS-7604NI-K1

4-ch 1U 4K NVR

• Up to 4-ch IP camera inputs
• H.265+/H.265/H.264+/H.264 video formats
• Up to 1-ch@8 MP/3-ch@4 MP/6-ch@1080p decoding capacity
• Up to 40 Mbps incoming bandwidth
• • Motion Detection 2.0
  • Human/Vehicle Analysis1-ch;4-ch
  • Recording
  • Stream TypeVideo, Video & Audio
  • Audio Compression

    G.711ulaw/G.711alaw/G.722/G.726

  • Video And Audio
  • IP Video Input4-ch
  • Incoming Bandwidth40 Mbps
  • Outgoing Bandwidth80 Mbps
  • HDMI Output1-ch, 4K (4096 x 2160)/30 Hz, 4K (3840 x 2160)/30 Hz, 2K (2560 x 1440)/60 Hz, 1920 x 1080/60 Hz, 1600 x 1200/60 Hz, 1280 x 1024/60 Hz, 1280 x 720/60 Hz
  • VGA Output1-ch, 1920 × 1080/60 Hz, 1280 × 1024/60 Hz, 1280 × 720/60 Hz
  • Video Output ModeHDMI/VGA simultaneous output
  • Audio Output1-ch, RCA (Linear, 1 KΩ)
  • Two-Way Audio1-ch, RCA (2.0 Vp-p, 1kΩ)
  • Decoding
  • Decoding FormatH.265+/H.265/H.264+/H.264
  • Recording Resolution8 MP/6 MP/5 MP/4 MP/3 MP/1080p/UXGA/ 720p/VGA/4CIF/DCIF/2CIF/CIF/QCIF
  • Synchronous Playback4-ch
  • Decoding Capability1-ch@8 MP (30 fps)/5-ch@1080p (30 fps)
  • Network
  • Remote Connection32
  • Network ProtocolTCP/IP, DHCP, IPv4, IPv6, DNS, DDNS, NTP, RTSP, SADP, SMTP, SNMP, NFS, iSCSI, ISUP, UPnP™, HTTP, HTTPS
  • Network Interface1 RJ-45 10 /100 Mbps self-adaptive Ethernet interface
  • Auxiliary Interface
  • SATA1 SATA interface
  • CapacityUp to 8 TB capacity for each disk
  • USB Interface2 × USB 2.0
  • Alarm In/OutN/A (4/1 is optional)
  • General
  • Power Supply12 VDC, 1.5 A
  • Consumption≤ 10 W (without HDD)
  • Working Temperature-10 °C to 55 °C (14 °F to 131 °F)
  • Working Humidity10% to 90%
  • Dimension (W × D × H)320 × 240 × 48 mm (12.4″ × 9.4″ × 1.9″)
  • Weight≤ 1 kg (without HDD, 2.2 lb.)
  • Certification
  • FCCPart 15 Subpart B, ANSI C63.4-2014
  • CEEN 55032: 2015, EN 61000-3-2, EN 61000-3-3, EN 50130-4, EN 55035: 2017
