LPR Hikvision DS-2CD3646G2-IZS 2.7-13.5mm H/eF/O-STD Bullet Smart IP

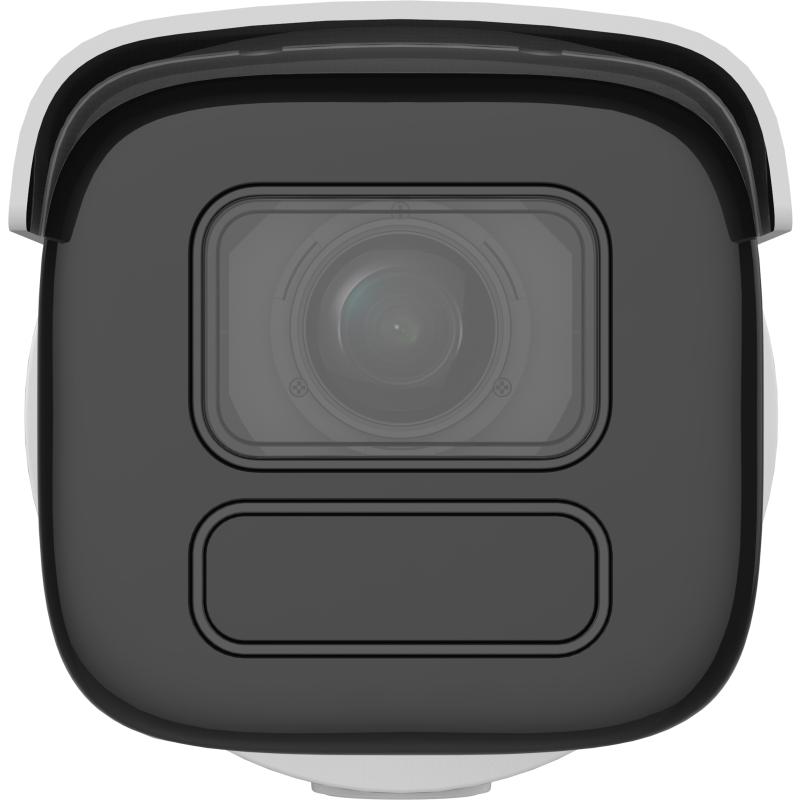

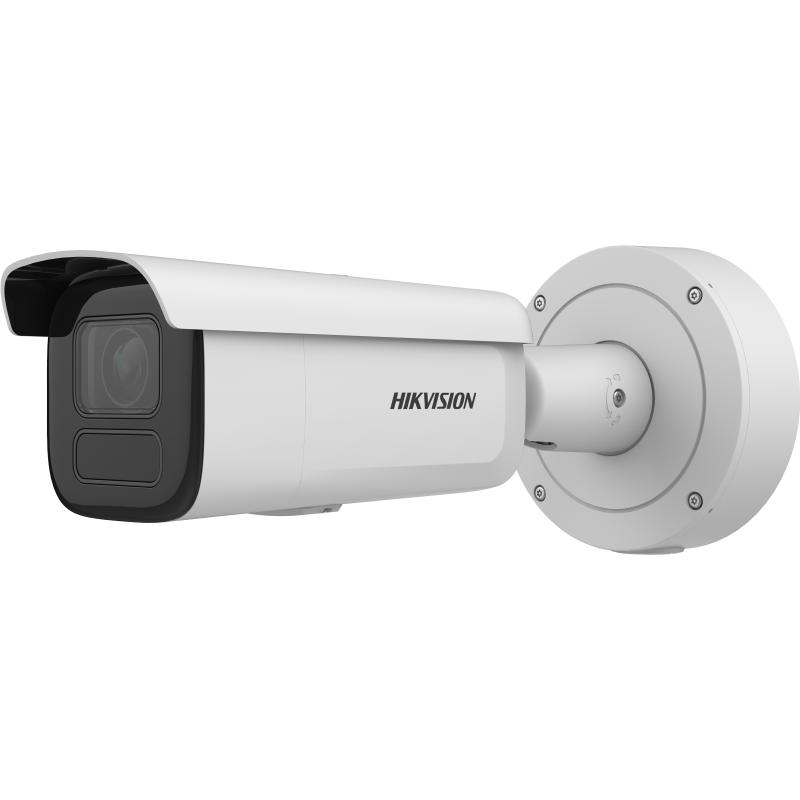

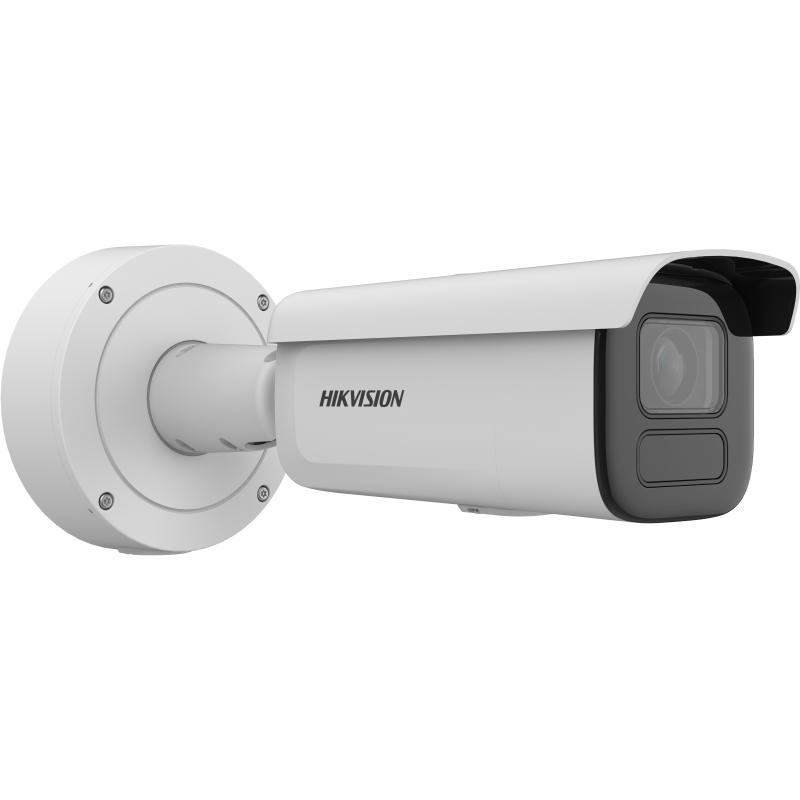

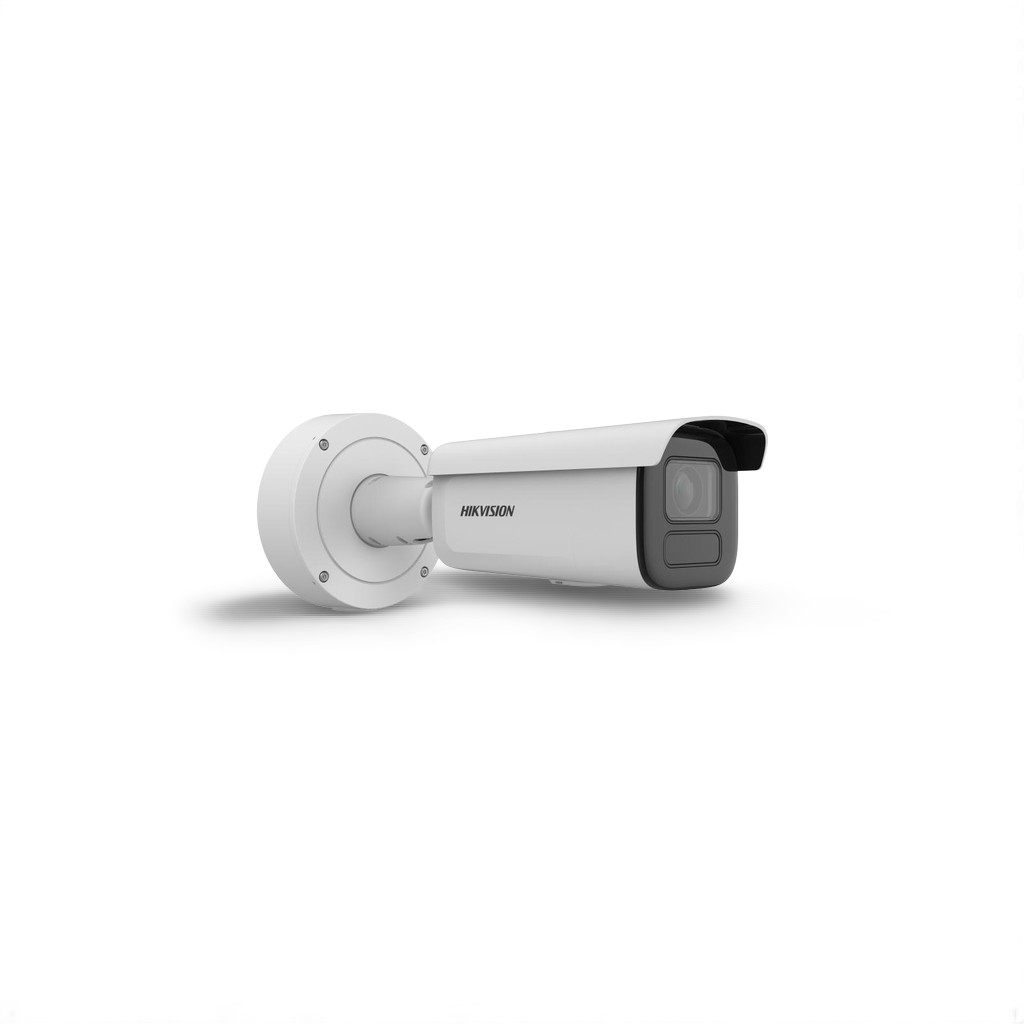

4 MP AcuSense Varifocal Bullet Network Camera

• Supports Hikvision Embedded Open Platform (HEOP) and importing third party applications
• Supports 1.5 Tops computing power, 60 MB system memory, 400 MB smart RAM, and 2 GB eMMC storage for sharing resources
• High quality imaging with 4 MP resolution
• Excellent low-light performance with powered-by-DarkFighter technology
• Efficient H.265+ compression technology
• Clear imaging against strong backlight due to 120 dB true WDR technology
• False alarm reduction through human and vehicle target classification based on deep learning
• Audio and alarm interface available
• Motorized varifocal lens for easy installation
• Water and dust resistant (IP66) and vandal-resistant (IK10)

•

• Specification

  • Camera

  • Lens

  • DORI

  • Illuminator

  • HEOP

  • Video

  • Audio

  • Network

  • Image

  • Interface

  • Event

  • Deep Learning Function

  • General

  • Approval

  • Camera
  • Image Sensor1/3″ Progressive Scan CMOS
  • Max. Resolution2688 × 1520
  • Min. IlluminationColor: 0.003 Lux @ (F1.4, AGC ON),B/W: 0 Lux with IR
  • Shutter Time1/3 s to 1/100,000 s
  • Day & NightIR cut filter
  • Angle AdjustmentPan: 0° to 355°,tilt: 0° to 90°,rotate: 0° to 360°

  • Lens
  • Lens TypeVarifocal lens, motorized lens, 2.7 to 13.5 mm and 7 to 35 mm optional
  • Focal Length & FOV

    2.7 to 13.5 mm: horizontal FOV 107.6° to 32.9°, vertical FOV56° to 18.5°, diagonal FOV 130.9° to 37.8°

    7 to 35 mm: horizontal FOV 28.7° to 10.5°, vertical FOV 16° to 6°, diagonal FOV 33.1° to 12.1°

  • Lens Mount2.7 to 13.5 mm: Ø14; 7 to 35 mm: Integrated
  • FocusAuto,Semi-auto,Manual
  • Iris TypeAuto-iris
  • Aperture2.7 to 13.5 mm: F1.4; 7 to 35 mm: F1.6

  • DORI
  • DORI

    2.7 to 13.5 mm: D: 64 to 187 m, O: 25 to 74 m, R: 12 to 37 m, I: 6 to 18 m

    7 to 35 mm: D: 218 to 580 m, O: 86 to 230 m, R: 43 to 116 m, I: 21 to 58 m

  • Illuminator
  • Supplement Light TypeIR
  • Supplement Light Range2.7 to 13.5 mm: up to 60 m; 7 to 35 mm: up to 80 m
  • Smart Supplement LightYes
  • IR Wavelength850 nm

  • HEOP
  • Open Resources

    Memory: 60 MB,

    Smart RAM: 400 MB,

    eMMC: 2 GB

  • Computing Power1.5 TOPS
  • Open CapabilityHEOP 2.0 OpendevSDK
  • Deep Learning StructureCaffe,PyTorch,TensorFlow,PaddlePaddle, ONNX
  • Programming LanguageC,C++

  • Video
  • Main Stream

    50 Hz: 25 fps (2688 × 1520, 1920 × 1080, 1280 × 720)

    60 Hz: 30 fps (2688 × 1520, 1920 × 1080, 1280 × 720)

  • Sub-Stream

    50 Hz: 25 fps (1280 × 720, 640 × 480, 640 × 360)

    60 Hz: 30 fps (1280 × 720, 640 × 480, 640 × 360)

  • Third Stream

    50 Hz: 10 fps (1920 × 1080, 1280 × 720, 640 × 480, 640 × 360)

    60 Hz: 10 fps (1920 × 1080, 1280 × 720, 640 × 480, 640 × 360)

  • Fourth Stream

    50 Hz: 10 fps (1280 × 720, 640 × 480, 640 × 360)

    60 Hz: 10 fps (1280 × 720, 640 × 480, 640 × 360)

  • Video Compression

    Main stream: H.265/H.264/H.264+/H.265+,

    Sub-stream: H.265/H.264/MJPEG,

    Third stream: H.265/H.264,

    Fourth stream: H.265/H.264/MJPEG

  • Video Bit Rate32 Kbps to 8 Mbps
  • H.264 TypeBaseline Profile,Main Profile,High Profile
  • H.265 TypeMain Profile
  • Bit Rate ControlCBR,VBR
  • Scalable Video Coding (SVC)H.264 and H.265 encoding
  • Region of Interest (ROI)5 fixed regions for main stream and sub-stream
  • Target CroppingYes
  • e-PTZSupport Patrol and Auto Tracking settings

  • Audio
  • Audio CompressionG.711/G.722.1/G.726/MP2L2/PCM/MP3/AAC-LC
  • Audio Bit Rate64 Kbps (G.711ulaw/G.711alaw)/16 Kbps (G.722.1)/16 Kbps (G.726)/32 to 192 Kbps (MP2L2)/8 to 320 Kbps (MP3)/16 to 64 Kbps (AAC-LC)
  • Audio Sampling Rate8 kHz/16 kHz/32 kHz/44.1 kHz/48 kHz
  • Environment Noise FilteringYes

  • Network
  • ProtocolsTCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, NTP, UPnP, SMTP, IGMP, 802.1X, QoS, IPv4, IPv6, UDP, Bonjour, SSL/TLS, PPPoE, SFTP, ARP, SNMP, WebSocket, WebSockets, SRTP
  • Simultaneous Live ViewUp to 6 channels
  • APIONVIF (Profile S, Profile G, Profile T),ISAPI,SDK,ISUP
  • User/Host

    Up to 32 users

    3 user levels: administrator, operator, and user

  • SecurityPassword protection, complicated password, HTTPS encryption, 802.1X authentication (EAP-TLS, EAP-LEAP, EAP-MD5), watermark, IP address filter, basic and digest authentication for HTTP/HTTPS, WSSE and digest authentication for Open Network Video Interface, RTP/RTSP over HTTPS, control timeout settings, security audit log, TLS 1.1/1.2/1.3, host authentication (MAC address)
  • Network Storage

    NAS (NFS, SMB/CIFS),Auto Network Replenishment (ANR),

    Together with high-end Hikvision memory card, memory card encryption and health detection are supported.

  • ClientiVMS-4200,Hik-Connect,Hik-Central
  • Web Browser

    Plug-in required live view: IE 10, IE 11,

    Plug-in free live view: Chrome 57.0+, Firefox 52.0+, Edge 89+,

    Local service: Chrome 57.0+, Firefox 52.0+, Edge 89+

  • Image
  • Image Parameters SwitchYes
  • Image SettingsRotate mode,saturation,brightness,contrast,sharpness,gain,white balance,adjustable by client software or web browser
  • Day/Night SwitchDay,Night,Auto,Schedule
  • Wide Dynamic Range (WDR)120 dB
  • Image EnhancementBLC,HLC,3D DNR,Defog
  • SNR≥ 52 dB
  • Privacy Mask4 programmable polygon privacy masks

  • Interface
  • Ethernet Interface1 RJ45 10 M/100 M self-adaptive Ethernet port
  • On-Board StorageBuilt-in memory card slot, support microSD/microSDHC/microSDXC card, up to 512 GB
  • Audio

    1 input (line in), 3.5 mm connector, max. input amplitude: 3.3 Vpp, input impedance: 4.7 KΩ, interface type: non-equilibrium

    1 output (line out), 3.5 mm connector, max. output amplitude: 3.3 Vpp, output impedance: 100 Ω, interface type: non-equilibrium

  • Alarm1 input, 1 output (max. 24 VDC/24 VAC, 1 A)
  • Reset KeyYes

  • Event
  • Basic EventMotion detection (support alarm triggering by specified target types (human and vehicle)),video tampering alarm,exception
  • Smart Eventscene change detection,audio exception detection,defocus detection, unattended baggage detection,object removal detection
  • LinkageUpload to FTP/NAS/memory card,notify surveillance center,send email,trigger alarm output,trigger recording,trigger capture,audible warning

  • Deep Learning Function
  • Perimeter Protection

    Line crossing, intrusion, region entrance, region exiting

    Support alarm triggering by specified target types (human and vehicle)

  • Face CaptureYes
  • People CountingYes

  • General
  • Power

    12 VDC ± 25%, 1.08 A, max. 13 W,two-core terminal block,reverse polarity protection,

    PoE: IEEE 802.3at, Class 4, max. 15 W

  • MaterialAluminum alloy body
  • DimensionØ144 mm × 332.1 mm (Ø5.7″ × 13.1″)
  • Package Dimension385 mm × 190 mm × 180 mm (15.2″ × 7.5″ × 7.1″)
  • WeightApprox. 1435 g (3.2 lb.)
  • With Package WeightApprox. 2576 g (5.7 lb.)
  • Storage Conditions-30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)
  • Startup and Operating Conditions-30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)
  • General FunctionHeartbeat,anti-banding,mirror,flash log,password reset via email,pixel counter
  • Language33 languages: English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chinese, Thai, Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil), Ukrainian

  • Approval
  • EMC

    CE-EMC: EN 55032: 2015, EN 61000-3-2:2019, EN 61000-3-3: 2013+A1:2019, EN 50130-4: 2011 +A1: 2014,

    RCM: AS/NZS CISPR 32: 2015,

    IC: ICES-003: Issue 7,

    KC: KN32: 2015, KN35: 2015

  • Safety

    UL: UL 62368-1,

    CB: IEC 62368-1: 2014+A11,

    CE-LVD: EN 62368-1: 2014/A11: 2017,

    BIS: IS 13252 (Part 1): 2010/IEC 60950-1: 2005,

    LOA: IEC/EN 60950-1

  • Environment

    CE-RoHS: 2011/65/EU,

    WEEE: 2012/19/EU,

    Reach: Regulation (EC) No 1907/2006

  • ProtectionIP66: IEC 60529-2013,IK10: IEC 62262:2002
