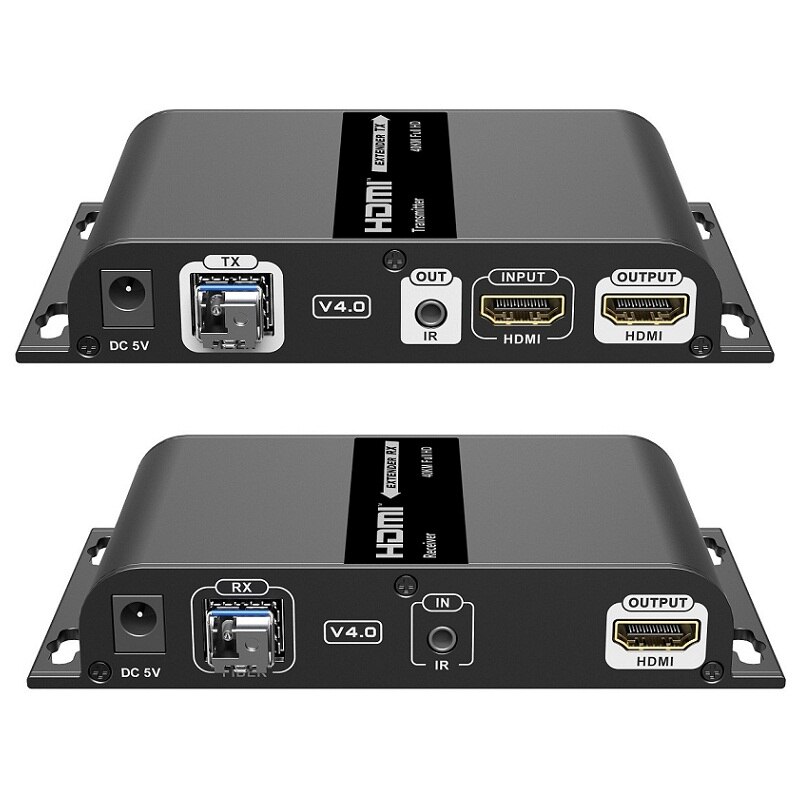

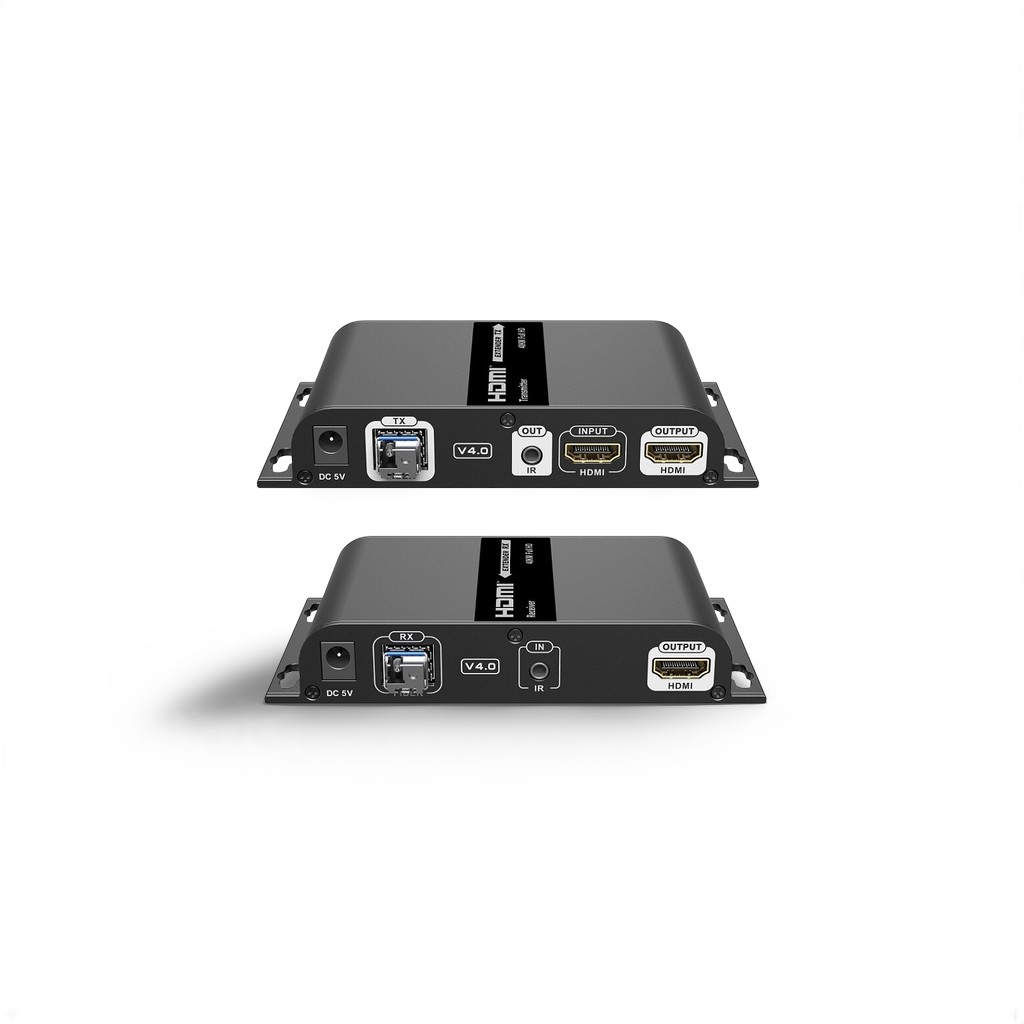

LKV378A-V4.0



40KM HDMI-compatible Optical Fiber Extender 1080p@60Hz



  Important safety notice

1) Please pay attention to all the warnings and hints on this device.

2) Do not expose this unit to rain, moisture and liquid.

3) Do not repair or open this device without professional people’s guidance.

4) Make sure good ventilation openings to avoid product overheating damage.

5) Shut off power and make sure environment is safe before installation.

6) Use DC5V only. Make sure the specification matched if using 3rdparty DC adapters.



Introduction

This fiber optic extender uses single-mode optic fiber (SMF) to transmit high-definition signals to a distance of 40km, and supports local loop-out and IR passback. It can be widely used in security monitoring, medical systems, commercial display and other fields.





Features

1. Supports 1.25Gbps single-mode optical fiber module with a maximum transmission distance of 40 km.

2. Supports resolution up to 1920×1080@60Hz.

3. Supports IR passback for remote control.

4. The transmitter supports HDMI-compatible loop-out for local monitoring.

5. Lightning Protection, Surge Protection, ESD Protection.

6. Wall Mounted design.

Package Included:





*** Only 1 Transmitter ***

1 x HDMI-compatible V4.0 Sender(Tx)

1 x power supplier

1 x IR Blaster cable

1 x SFP optical transceiver (T1550/R1310nm)

1 x User manual



*** Only 1 Receiver ***

1 x HDMI-compatible V4.0 Receiver(Rx)

1 x power supplier

1 x IR Receiver cable

1 x SFP optical transceiver (T1310/R1550nm)

1 x User manual

*** 1 Tx and 1 Rx kit ***

1 x HDMI-compatible V4.0 Sender(Tx)

1 x HDMI-compatible V4.0 Receiver(Rx)

2 x power supplier

1 x IR Blaster cable

1 x IR Receiver cable

1 x SFP optical transceiver (T1550/R1310nm)

1 x SFP optical transceiver (T1310/R1550nm)

1 x User manual
