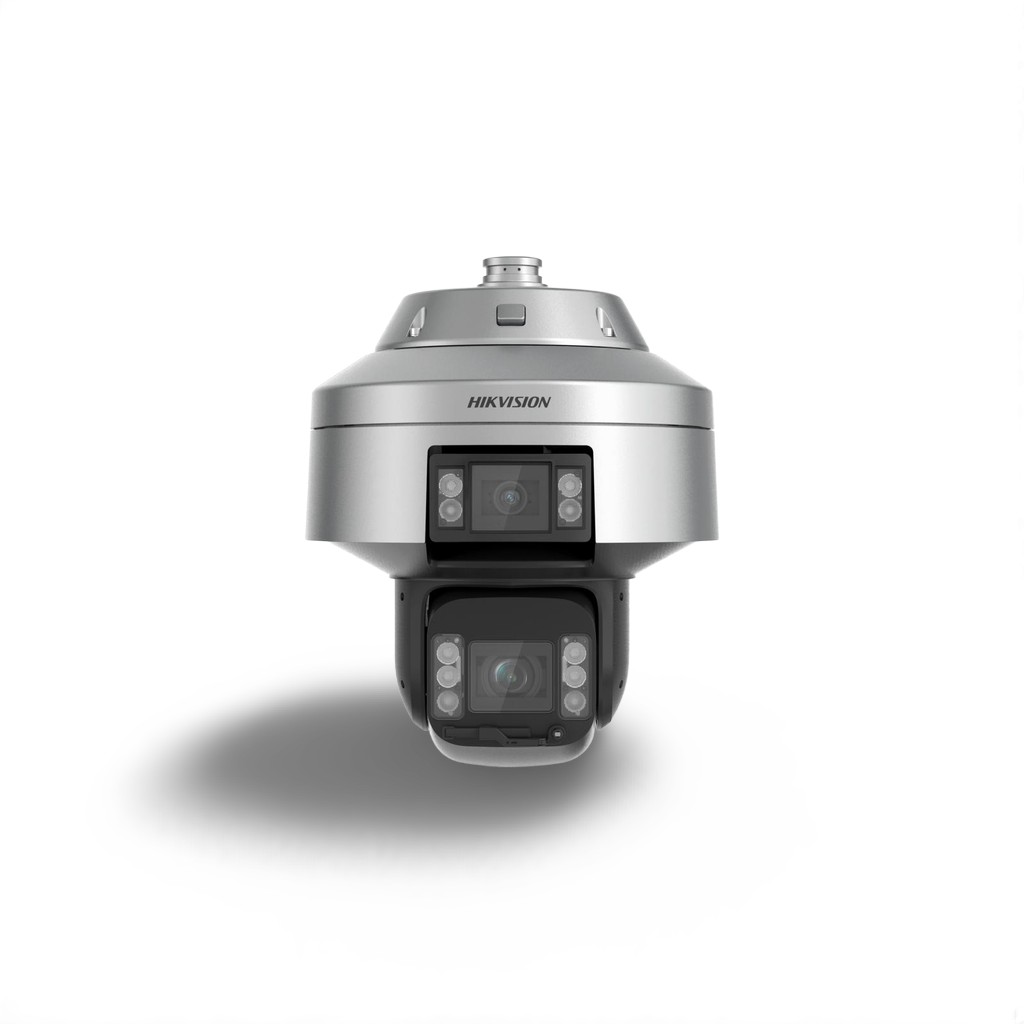

7-inch 4K 5X DarkFighter IR Network Speed
- Multi-target-type detection: support automatic person detection and quick capture for face comparison, and link face and human body
- Smart events: The panoramic channel arms the detection area and links the PTZ channel to track targets and output alarms
- Face capture: The PTZ channel locks onto and captures detected face
- Tracking takeover: In smart events, when the target moves out of the panoramic view, the PTZ channel continues to track the target in a larger area
- Support simultaneous capture, linked output, and feature abstraction of face and human body
- Adjustable pan and tilt position for both channels. Panoramic channel: pan 0 to 360° endless, tilt 0 to 30°. PTZ channel: pan 0 to 330°, tilt -10° to 90°
- Auto calibration: Once calibrated, no need for calibration at other PTZ positions
- Built-in memory card slot
- Easy-to-install all-in-one design with one IP address, one network cable, one power supply, and no server
Specification
-
Camera
-
Lens
-
Illuminator
-
PTZ
-
Video
-
Audio
-
Smart Features
-
Network
-
-
Interface
-
Event
-
Deep Learning Function
-
General
-
Approval
- Camera
- Image Sensor
[Panoramic channel]: 1/1.8″ progressive scan CMOS,
[PTZ channel]: 1/1.2 progressive scan CMOS”
- Min. Illumination
[Panoramic channel]: Color: 0.0005 Lux @(F1.0, AGC ON), B/W: 0.0001 Lux @(F1.0, AGC ON);
[PTZ channel] Color: 0.0005 Lux @(F1.6, AGC ON), B/W: 0.0001 Lux @(F1.6, AGC ON), 0 lux with IR
- Shutter Speed1 to 1/30000 s
- Slow Shutteryes
- Day & NightICR
- Zoom[panoramic channel] no; [PTZ channel] 16x
- Optical Zoom[panoramic channel] no; [PTZ channel] 5 ×
- Gain Controlauto;manual
- Max. Resolution[panoramic channel] 2560 × 1440, [PTZ channel] 3840 × 2160
- Lens
- Focussemi-auto,manual,auto
- Focal Length[Panoramic channel] 6 mm; [PTZ channel] 10 to 50 mm
- Zoom Speed[PTZ channel] Approx. 1.1 s
- FOV
[Panoramic channel]
horizontal field of view: 58.4°,
vertical field of view: 31°,
Diagonal field of view: 68.7°;
[PTZ channel]
horizontal field of view: 36° to 13.1°,
vertical field of view: 20.3° to 7.3°,
diagonal field of view: 41° to 14.85°
- Aperture[panoramic channel] F1.0; [PTZ channel] F1.6
- Illuminator
- White Light Distance
[panoramic channel] up to 50 m
[PTZ channel] up to 20 m
- Supplement Light Range[PTZ channel] up to 200 m
- Smart Supplement Lightyes
- PTZ
- Movement Range (Pan)[panoramic channel] 0 to 360°, [PTZ channel] 0 to 330°
- Movement Range (Tilt)[panoramic channel] 0 to 30°, [PTZ channel] -10° to 90°
- Pan Speed
[panoramic channel] pan speed: configurable from 0.1° to 100°/s;
[PTZ channel] pan speed: configurable from 0.1° to 210°/s
- Tilt Speed[panoramic channel] tilt speed: configurable from 0.1° to 25°/s; [PTZ channel] tilt speed: configurable from 0.1° to 150°/s
- Proportional Pan[panoramic channel]: no; [PTZ channel]: yes
- Presets300
- Patrol Scan8 patrols, up to 32 presets for each patrol
- Pattern Scan4 pattern scans
- Power-off Memoryyes
- Park Actionpreset,patrol scan,auto scan,pattern scan
- 3D Positioningyes
- PTZ Status Displayyes
- Preset Freezingyes
- Scheduled Taskdome reboot,preset,patrol scan,dome adjust,pattern scan,aux output,auto scan
- Exception DetectionIP address conflict;HDD full;illegal login;network disconnected;存储器错误
- Video
- Stream Typemain stream, sub-stream, third stream
- Main Stream
[panoramic channel]
50 Hz: 25 fps (2560 × 1440, 1920 × 1080, 1280 × 960, 1280 × 720)
60 Hz:30 fps (2560 × 1440, 1920 × 1080, 1280 × 960, 1280 × 720)
[PTZ channel]
50 Hz: 25 fps (3840 × 2160, 2560 × 1440, 1920 × 1080, 1280 × 960, 1280 × 720)
60 Hz: 30 fps (3840 × 2160, 2560 × 1440, 1920 × 1080, 1280 × 960, 1280 × 720)
- Sub-Stream
[panoramic channel]
50 Hz: 25 fps (704 × 576, 640 × 480, 352 × 288)
60 Hz: 30 fps (704 × 480, 640 × 480, 352 × 240)
[PTZ channel]
50 Hz: 25 fps (704 × 576, 640 × 480, 352 × 288)
60 Hz: 30 fps (704 × 480, 640 × 480, 352 × 240)
- Third Stream
[panoramic channel]
50 Hz: 25 fps (1920 × 1080, 1280 × 960, 1280 × 720, 704 × 576, 640 × 480, 352 × 288)
60 Hz: 30 fps (1920 × 1080, 1280 × 960, 1280 × 720, 704 × 480, 640 × 480, 352 × 240)
[PTZ channel]
50 Hz: 25 fps (1920 × 1080, 1280 × 960, 1280 × 720, 704 × 576, 640 × 480, 352 × 288)
60 Hz: 30 fps (1920 × 1080, 1280 × 960, 1280 × 720, 704 × 480, 640 × 480, 352 × 240)
- Video CompressionH.265,H.264,MJPEG
- Video Bit Rate32 to 16384 kbps
- H.264 Typebaseline profile, main profile, high profile
- H.265 Typemain profile
- Scalable Video Coding (SVC)yes
- Region of Interest (ROI)fixed region
- Target Croppingno
- Audio
- Audio CompressionG.711alaw/G.711ulaw/G.722.1/G.726/MP2L2/PCM
- Audio Bit RateMP2L2: 32 kbps, 40 kbps, 48 kbps, 56 kbps, 64 kbps, 80 kbps, 96 kbps, 112 kbps, 128 kbps, 144 kbps, 160 kbps, 192 kbps
- Audio Sampling RateMP2L2: 16 kHz, 32 kHz, 48 kHz, PCM: 8 kHz, 16 kHz, 32 kHz, 48 kHz
- Environment Noise Filteringyes
- Smart Features
- Feature Abstractionface feature abstraction, human body feature abstraction, vehicle feature abstraction
- Smart RecordANR;Dual-VCA
- Smart EncodingH.265+;H.264+;ROI;SVC
- Network
- Network StorageNAS (NFS, SMB/ CIFS),ANR
- ProtocolsTCP/IP,SMTP,RTSP,FTP,IGMP,Qos,RTCP,HTTPS,PPPoE,SNMP,NTP,RTP,UDP,DNS,HTTP,DHCP,Bonjour,802.1x,IPv4/IPv6,DDNS,ICMP,UPnP
- APIOpen-ended API,Open Network Video Interface, ISAPI,ISUP,Hik-Connect,Hikvision SDK,Third-party management platform
- Simultaneous Live ViewUp to 20 channels
- User/HostUp to 32 users. 3 levels: Administrator, Operator and User
- Security802.1X authenticated access,MAC address binding,Authenticated username and password,IP address filter,HTTPS encryption
- ClientiVMS-4200
- Web BrowserIE10+, Chrome57+, Firefox52+, Safari12+
- Image
- Day/Night Switchday,night,auto,scheduled-switch
- Image EnhancementBLC,HLC,3D DNR
- Wide Dynamic Range (WDR)120 dB WDR
- Defogyes
- Image Stabilizationyes
- Regional Exposureyes
- Regional Focusyes
- Image Settingssaturation, brightness, contrast, sharpness
- Image Parameters Switchyes
- Privacy Maskpolygon region ,mosaic mask ,up to 24 masks,mask color configurable
- SNR≥52dB
- Interface
- Ethernet Interfaceself-adaptive,1000 M Ethernet Interface,RJ45
- On-board Storagesupport microSD/microSDHC/microSDXC cards, up to 256 GB
- Alarm2 alarm inputs
- Alarm Output1 alarm output
- Audio1 audio input, 2.0 to 2.4Vp-p, 1k Ohm±10%
- Audio Output1 audio output, line level, impedance: 600 Ω
- RS-485Half duplex, HIKVISION, Pelco-P, Pelco-D, self-adaptive
- Resetyes
- Event
- Basic Eventalarm input,audio exception,exception,video tampering alarm,motion detection,alarm output
- Smart Eventregion entrance detection,line crossing detection,intrusion detection,region exiting detection
- Smart Trackingevent tracking,panorama tracking
- Linkageupload to FTP,sending email,notify surveillance center,patrol scan,preset,pattern scan,memory card video recording,alarm output
- Deep Learning Function
- Multi-Target-Type DetectionSupport face, human body, and vehicle capture, track and grade the target, and output the best capture picture; support face and human body feature analysis, modeling and comparison
- Face Comparisonyes
- General
- General Functionpassword protection,mirror,watermark,IP address filter
- Power36 VDC ± 25%
- Power Consumption and CurrentMax. 70 W
- Operating Condition-40℃ to 70℃, humidity lower than 95%RH
- Wiper[panoramic channel]: no; [PTZ channel]: yes
- Demistyes
- MaterialADC12, PC+10%GF
- DimensionØ 320 mm × 393 mm (Ø 12.6″ × 15.47″)
- WeightApprox. 10.6 kg (23.37 lb.)
- Language33 languages: English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chinese, Thai, Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil), Ukrainian
- Approval
- ProtectionIP66
