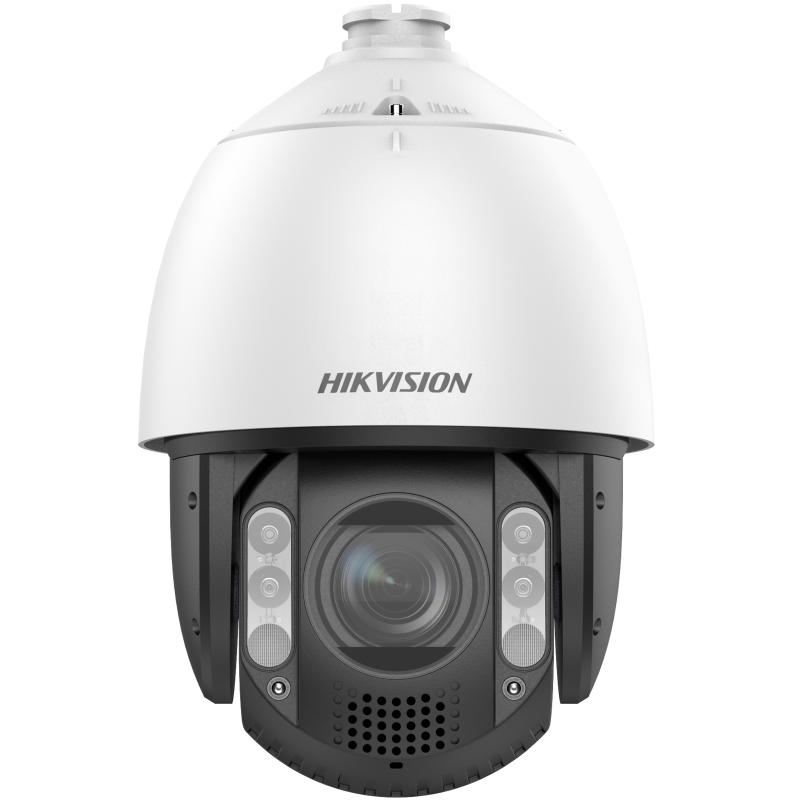

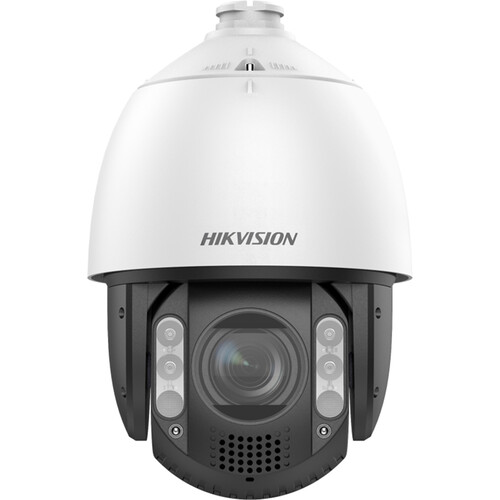

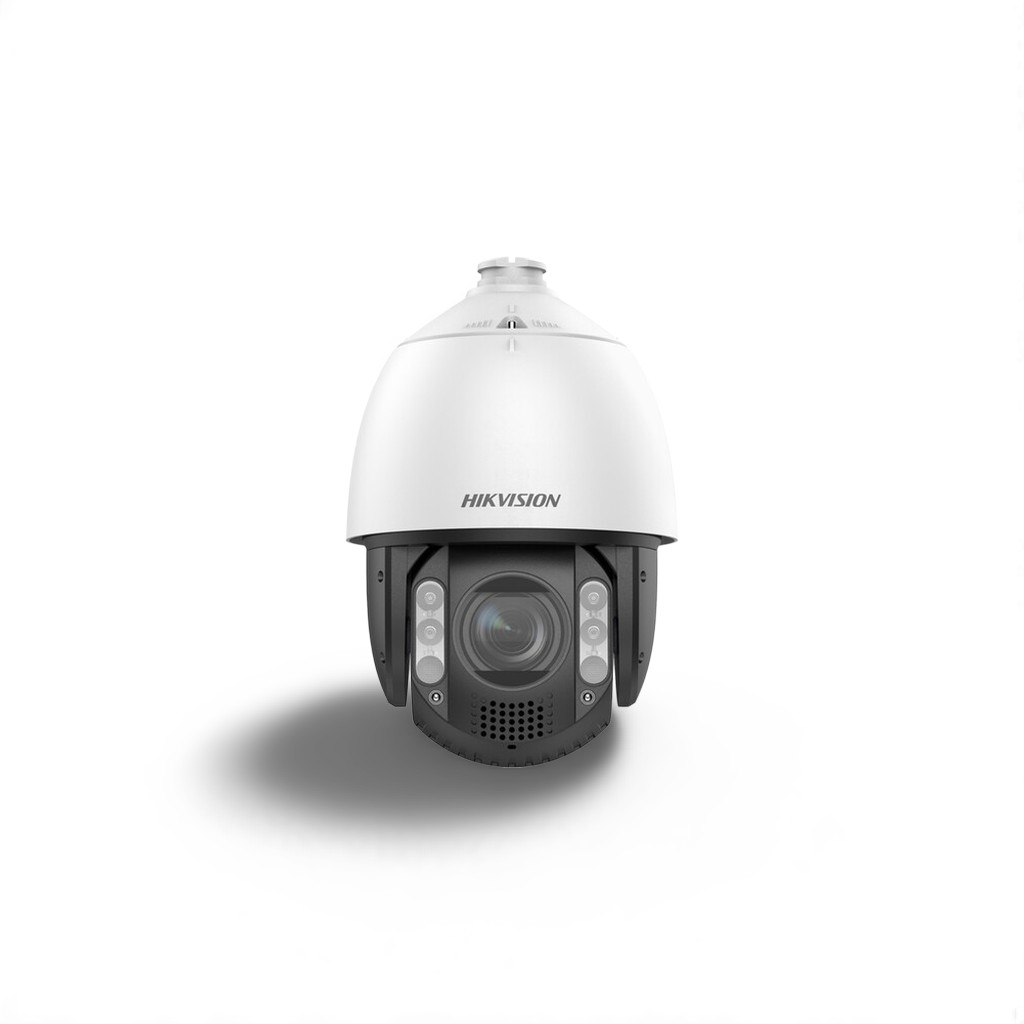

7-inch 8 MP 12X ColorVu Network Speed Dome
- 24/7 colorful imaging
- High quality imaging with 8 MP resolution
- 12× optical zoom and 64 × digital zoom provide close up views over expansive areas
- Audio visual alarm: The white flashing light and audible warning can be triggered by certain events
- Expansive night view with up to 150 m IR distance and 100 m white light
- Focuses on human and vehicle targets classification based on deep learning
- Face capture: Up to 5 faces captured at the same time
Specification
-
Camera
-
Lens
-
Illuminator
-
PTZ
-
Video
-
Audio
-
Network
-
-
Interface
-
Event
-
Deep Learning Function
-
General
-
Approval
- Camera
- Image Sensor1/1.8″ progressive scan CMOS
- Max. Resolution3840 × 2160
- Min. IlluminationColor: 0.0005Lux @ (F1.2, AGC ON), B/W:0.0001Lux @ (F1.2, AGC ON), 0 lux with light
- Shutter Speed1/1 s to 1/30000 s
- Day & NightIR cut filter
- Zoom12 × optical, 64 × digital
- Slow ShutterYes
- Lens
- Focal Length6.7 mm to 80.4 mm
- FOV
Horizontal field of view: 53° to 8.1° (wide-tele),
Vertical field of view: 31.3° to 4.6° (wide-tele),
Diagonal field of view:59.6° to 9.3° (wide-tele)
- FocusAuto, semi-auto, manual
- ApertureMax. F1.2
- Zoom SpeedApprox. 5.8 s
- Illuminator
- Supplement Light TypeHybrid (IR and White Light)
- Supplement Light Range
White light: up to 100 m
IR: up to 150 m
- PTZ
- Movement Range (Pan)360°
- Movement Range (Tilt)-15° to 90° (auto flip)
- Pan SpeedPan speed: configurable from 0.1° to 160°/s; preset speed: 240°/s
- Tilt SpeedTilt speed: configurable from 0.1° to 120°/s, preset speed 200°/s
- Proportional PanYes
- Presets300
- Preset FreezingYes
- Patrol Scan8 patrols, up to 32 presets for each patrol
- Pattern Scan4 pattern scans
- Park ActionPreset, pattern scan, auto scan, tilt scan, random scan, frame scan, panorama scan, patrol scan
- 3D PositioningYes
- PTZ Status DisplayYes
- Scheduled TaskPreset, pattern scan, patrol scan, auto scan, tilt scan, random scan, frame scan, panorama scan, dome reboot, dome adjust, aux output
- Power-off MemoryYes
- Video
- Main Stream
50 Hz: 25 fps (3840 × 2160, 2560 × 1440, 1920 × 1080, 1280 × 960, 1280 × 720);
60 Hz: 24 fps (3840 × 2160, 2560 × 1440, 1920 × 1080, 1280 × 960, 1280 × 720)
- Sub-Stream
50 Hz: 25 fps (704 × 576, 640 × 480, 352 × 288);
60 Hz: 24 fps (704 × 480, 640 × 480, 352 × 240)
- Third Stream
50 Hz: 25 fps (1920 × 1080, 1280 × 960, 1280 × 720, 704 × 576, 640 × 480, 352 × 288);
60 Hz: 24 fps (1920 × 1080, 1280 × 960, 1280 × 720, 704 × 480, 640 × 480, 352 × 240)
- Video Compression
Main stream: H.265+/H.265/H.264+/H.264
Sub-stream: H.265/H.264/MJPEG
Third stream: H.265/H.264/MJPEG
- Video Bit Rate32 kbps to 16384 kbps
- H.264 TypeBaseline Profile/Main Profile/High Profile
- H.265 TypeMain Profile
- Scalable Video Coding (SVC)H.264 and H.265 encoding
- Region of Interest (ROI)8 fixed regions for each stream
- Audio
- Audio CompressionG.711alaw, G.711ulaw, G.722.1, G.726, MP2L2, AAC-LC, PCM
- Audio Bit Rate64 Kbps (G.711),16 Kbps (G.722.1),16 Kbps (G.726),32 to 192 Kbps (MP2L2),16 to 64Kbps (AAC-LC),8 to 320 Kbps (MP3)
- Audio Sampling RateMP2L2: 16kHz, 32kHz, 48kHz,AAC-LC: 16kHz, 32kHz, 48kHz,PCM: 8kHz, 16kHz, 32kHz, 48kHz,MP3: 8kHz, 16kHz, 32kHz, 48kHz
- Environment Noise FilteringYes
- Network
- ProtocolsIPv4/IPv6, HTTP, HTTPS, 802.1x, QoS, FTP, SMTP, UPnP, SNMP, DNS, DDNS, NTP, RTSP, RTCP, RTP, TCP/IP, UDP, IGMP, ICMP, DHCP, PPPoE, Bonjour, WebSocket, WebSockets
- Simultaneous Live ViewUp to 20 channels
- APIONVIF (Profile S, Profile G, Profile T),ISAPI,SDK,ISUP
- User/HostUp to 32 users, 3 user levels: administrator, operator, and user
- SecurityPassword protection, complicated password, HTTPS encryption, 802.1X authentication (EAP-TLS, EAP-LEAP, EAP-MD5), watermark, IP address filter, basic and digest authentication for HTTP/HTTPS, RTP/RTSP over HTTPS, control timeout settings, security audit log, TLS 1.2, TLS 1.3, host authentication (MAC address)
- Network StorageNAS (NFS, SMB/CIFS), auto network replenishment (ANR)
- ClientiVMS-4200, HikCentral Pro, Hik-Connect
- Web BrowserIE11, Chrome 80+, Firefox 80+, Safari 13+, Edge 89+
- Image
- Image SettingsSaturation, brightness, contrast, sharpness, gain, and white balance adjustable by client software or web browser
- Day/Night SwitchDay, Night, Auto, Schedule
- Wide Dynamic Range (WDR)120 dB
- SNR> 52 dB
- DefogDigital defog
- Image StabilizationEIS
- Image EnhancementBLC, HLC, 3D DNR
- Privacy Mask24 programmable polygon privacy masks, mask color or mosaic configurable
- Regional FocusYes
- Regional ExposureYes
- Interface
- Ethernet Interface1 RJ45 10M/100M self-adaptive Ethernet port
- On-board StorageBuilt-in memory card slot, support microSD/microSDHC/microSDXC card, up to 512 GB
- Built-in Speaker1 built-in speaker with effective distance reaching max. 30 meters
- Audio1 input (line in), max. input amplitude: 2-2.4 vpp, input impedance: 1 kΩ ± 10%; 1 output (line out), line level, output impedance: 600 Ω
- Alarm2 inputs, 1 output
- ResetYes
- Event
- Basic EventMotion detection, video tampering alarm, exception, alarm input and output
- Smart EventLine crossing detection, intrusion detection, region entrance detection, region exiting detection, unattended baggage detection, object removal detection, audio exception detection
- LinkageUpload to FTP/NAS/memory card, notify surveillance center, send email, trigger alarm output, trigger recording, audible warning, white light flashing, and PTZ actions (such as preset, patrol scan, pattern scan)
- Smart TrackingManual tracking, auto-tracking
- Deep Learning Function
- Face Capture
Detects up to 5 faces simultaneously.
Supports detecting, capturing, grading, selecting of face in motion, and output the best face picture of the face
- General
- Power
24 VAC, max. 42 W (including max. 12 W for IR and max. 2 W for heater)
Hi-PoE
- DimensionØ 220 mm × 357.3 mm (Ø8.66″ × 14.07″)
- WeightApprox. 5.5 kg (12.13 lb.)
- MaterialADC12
- Operating Condition-30 °C to 65 °C (-22 °F to 149 °F). Humidity 90% or less (non-condensing)
- DemistYes
- Approval
- EMCCE-EMC (EN 55032: 2015, EN 61000-3-2: 2019, EN 61000-3-3: 2013 + A1: 2019, EN 50130-4: 2011 + A1: 2014),RCM (AS/NZS CISPR 32: 2015),IC (ICES-003: Issue 7),KC (KN 32: 2015, KN 35: 2015)
- SafetyUL (UL 62368-1); CB (IEC 60950-1:2005 + Am 1:2009 + Am 2:2013); CE-LVD (EN 62368-1:2014+A11:2017); BIS (IS 13252 (Part 1):2010+A1:2013+A2:2015); LOA (IEC/EN 60950-1)
- EnvironmentCE-RoHS (2011/65/EU); WEEE (2012/19/EU); Reach (Regulation (EC) No 1907/2006)
- ProtectionIP66 (IEC 60529-2013), IK10 (excluding glass window), TVS 6000V lightning protection, surge protection and voltage transient protection
