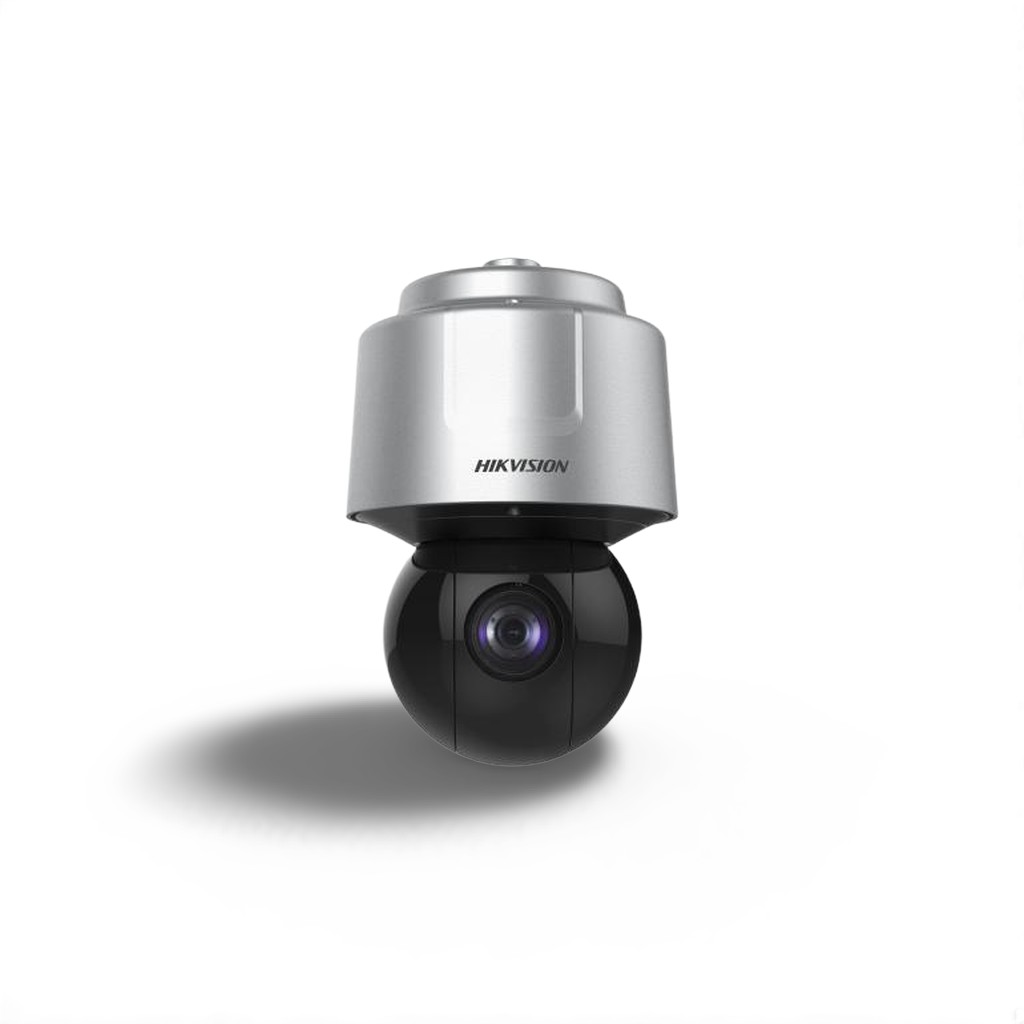

Hikvision DS-2DF6A836X-AEL(T5) 6-inch 4K 36X Powered by DarkFighter Network Speed Dome

GatewayPrice
PayPal$1,915.65
Add to wishlist
Compare

PTZ delivery 14/20 working days

د.إ7,095.00

Compare

6 Series 4K 36X Powered by DarkFighter Network Speed Dome

  • 1/1.8″ Progressive Scan CMOS
  • High quality imaging with 8 MP resolution
  • Excellent low-light performance with powered-by-DarkFighter technology
  • 36× optical zoom and 16× digital zoom provide close up views over expansive areas
  • Supports rapid focus
  • Water and dust resistant (IP67) and vandal proof (IK10)
  • Supports face capture to detect, capture, grade, and select faces in motion
  • Supports road traffic to detect vehicles

Specification

  • Camera

  • Lens

  • PTZ

  • Video

  • Audio

  • Network

  • Interface

  • General

  • Approval

  • Smart Features

  • Camera
  • Image Sensor1/1.8＂ progressive scan CMOS
  • Min. Illuminationcolor: 0.005Lux @ (F1.2，AGC ON),B/W: 0.0005Lux @ (F1.2，AGC ON)
  • Shutter Speed1/1 s to 1/30,000 s
  • Slow Shutteryes
  • Focusauto;semi-auto;manual
  • Day & NightICR
  • Day/Night Switchday, night, auto, scheduled-switch
  • BLCyes
  • WDR140 dB WDR
  • HLCyes
  • 3D DNRyes
  • Defogyes
  • EISYes. Built-in gyroscope to improve EIS performance.
  • Regional Exposureyes
  • Regional Focusyes
  • White Balanceauto;ATW;sodium lamp;fluorescent lamp;indoor;outdoor;MWB;Locked WB
  • Digital Zoom16x
  • Optical Zoom36x
  • Privacy Maskup to 24 masks;polygon region ;mosaic mask ;mask color configurable
  • DORI

    Detect (25px/m): 4300 m

    Observe (63px/m): 1706.3 m

    Recognize (125px/m): 860 m

    Identify (250px/m): 430 m

  • SNR≥52dB
  • General Functionmirror, password protection, watermark, IP address filter
  • Optical Defogyes
  • Lens
  • Focal Length6.0 mm to 216 mm, 36× Optical
  • Zoom Speedapprox. 4.5 s
  • FOV

    Horizontal field of view: 56.6° to 1.7° (wide-tele),

    Vertical field of view: 33.7° to 0.9° (wide-tele),

    Diagonal field of view: 63.4° to 1.9° (wide-tele)

  • ApertureF1.2
  • PTZ
  • Movement Range (Pan)360°
  • Movement Range (Tilt)-20° to 90° (auto flip)
  • Pan Speedpan speed: configurable from 0.1° to 300°/s; preset speed: 540°/s
  • Tilt Speedtilt speed: configurable from 0.1° to 240°/s, preset speed 400°/s
  • Proportional Zoomyes
  • Presets300
  • Patrol Scan8 patrols, up to 32 presets for each patrol
  • Pattern Scan4 pattern scans, record time over 10 minutes for each scan
  • Power-off Memoryyes
  • Park Actionpreset;pattern scan;patrol scan;auto scan;tilt scan;random scan;frame scan;panorama scan
  • 3D Positioningyes
  • PTZ Status Displayyes
  • Preset Freezingyes
  • Scheduled Taskpreset;pattern scan;patrol scan;auto scan;tilt scan;random scan;frame scan;panorama scan;dome reboot;dome adjust;aux output
  • Video
  • Max. Resolution3840 × 2160
  • Main Stream

    50 Hz: 25 fps (3840 × 2160, 2560×1440, 1920×1080, 1280×960, 1280×720)

    60 Hz: 24 fps (3840 × 2160, 2560×1440, 1920×1080, 1280×960, 1280×720)

  • Sub-Stream

    50 Hz: 25 fps (704 × 576, 640 × 480, 352 × 288)

    60 Hz: 24 fps (704 × 480, 640 × 480, 352 × 240)

  • Third Stream

    50 Hz: 25 fps (1920 × 1080, 1280 × 960, 1280 × 720, 704 × 576, 640 × 480, 352 × 288)

    60 Hz: 24 fps (1920 × 1080, 1280 × 960, 1280 × 720, 704 × 480, 640 × 480, 352 × 240)

  • Video CompressionH.265;H.264;MJPEG
  • Video Bit Rate32 Kbps to 16384 Kbps
  • H.264 Typebaseline profile;main profile;high profile
  • H.265 Typemain profile
  • H.264+yes
  • H.265+yes
  • SVCyes
  • ROIfixed region
  • Audio
  • Audio CompressionG.722.1;G.711alaw;G.711ulaw;MP2L2;G.726;PCM
  • Audio Bit rate64 Kbps(G.711)/16 Kbps(G.722.1)/16 Kbps(G.726)/32~192 Kbps(MP2L2)
  • Network
  • Network StorageNAS (NFS, SMB/ CIFS);ANR
  • ProtocolsIPv4/IPv6, HTTP, HTTPS, 802.1x, Qos, FTP, SMTP, UPnP, SNMP, DNS, DDNS, NTP, RTSP, RTCP, RTP, TCP/IP, DHCP, PPPoE, UDP, IGMP, ICMP, Bonjour
  • APIISAPI;Hikvision SDK;ONVIF (Profile S, Profile G, Profile T);Open-ended API;Third-party management platform;ISUP;Ehome
  • Simultaneous Live ViewUp to 20 channels
  • User/HostUp to 32 users. 3 levels: Administrator, Operator and User
  • Smooth Streamingyes
  • Security MeasuresUser authentication (ID and PW), Host authentication (MAC address); HTTPS encryption; IEEE 802.1x port-based network access control; IP address filtering
  • ClientHikcentral;iVMS-4200;Hik-Connect
  • Web BrowserIE11, Chrome 57.0+, Firefox 52.0+, Safari 11+
  • Interface
  • Communication InterfaceRJ45, self-adaptive 10M/100M Ethernet port
  • On-board StorageBuilt-in memory card slot, support Micro SD/Micro SDHC/Micro SDXC, up to 256 GB; NAS (NFS, SMB/ CIFS), ANR
  • Alarm Input7 alarm inputs
  • Alarm Output2 alarm outputs
  • Audio Input1 audio input, 2.0 to 2.4Vp-p, 1k Ohm±10%
  • Audio Output1 audio output, line level, impedance: 600 Ω
  • Video OutputNTSC;PAL;1.0V[p-p]/75Ω;BNC connector
  • RS-485HIKVISION, Pelco-P, Pelco-D, self-adaptive
  • General
  • Power24 VAC±25% (Max. 45 W, including max. 6 W for heater), Hi-PoE (Max. 50 W, including max. 6 W for heater)
  • Operating ConditionsTemperature: -40°C to 70°C (-40°F to 158°F)，Humidity: ≤ 95%
  • Dimensions⌀ 231.1 mm × 355.6 mm (⌀ 9.10″ × 14″)
  • WeightApprox. 6 kg (13.23 lb.)
  • Web Client Language33 languages: English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chinese, Thai, Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil), Ukrainian
  • Approval
  • EMC

    FCC SDoC (47 CFR Part 15, Subpart B);

    CE-EMC (EN 55032: 2015, EN 61000-3-2: 2019, EN 61000-3-3: 2013, EN 50130-4: 2011 +A1: 2014);

    RCM (AS/NZS CISPR 32: 2015);

    IC VoC (ICES-003: Issue 6, 2019);

    KC (KN 32: 2015, KN 35: 2015)

  • Safety

    UL (UL 62368-1)

    CB (IEC 60950-1:2005 + Am 1:2009 + Am 2:2013, IEC 62368-1:2014);

    CE-LVD (EN 62368-1:2014+A11:2017),

    BIS (IS 13252(Part 1):2010+A1:2013+A2:2015);

    LOA (SANS IEC60950-1)

  • Environment

    CE-RoHS (2011/65/EU); WEEE (2012/19/EU);

    Reach (Regulation (EC) No 1907/2006)

  • ProtectionIP67 Standard;IK10;Lightning Protection, Surge Protection and Voltage Transient Protection,±6kV Line to Gnd, ±3kV Line to Line,IEC61000-4-5
  • Smart Features
  • Perimeter Protection

    Line crossing, intrusion, region entrance, region exiting

    Support alarm triggering by specified target types (human and vehicle)

  • Face CaptureSupport detecting up to 30 faces at the same time. Support detecting, tracking, capturing, grading, selecting of face in motion, and output the best face picture of the face.
  • Road TrafficSupport vehicle detection (license plate number,vehicle model, and vehicle color recognition)
  • Basic Eventalarm input and output;motion detection;video tampering alarm;exception
  • Smart Eventobject removal detection;unattended baggage detection;vandal-proof alarm;parking detection;region entrance detection;region exiting detection;line crossing detection;intrusion detection;audio exception detection
  • Smart Trackingmanual tracking;auto-tracking;event tracking
  • Smart RecordANR;Dual-VCA
  • Alarm LinkageAlarm actions, such as Preset, Patrol Scan, Pattern Scan, Memory Card Video Record, Trigger Recording, Notify Surveillance Center, Upload to FTP/Memory Card/NAS, Send Email, etc.
