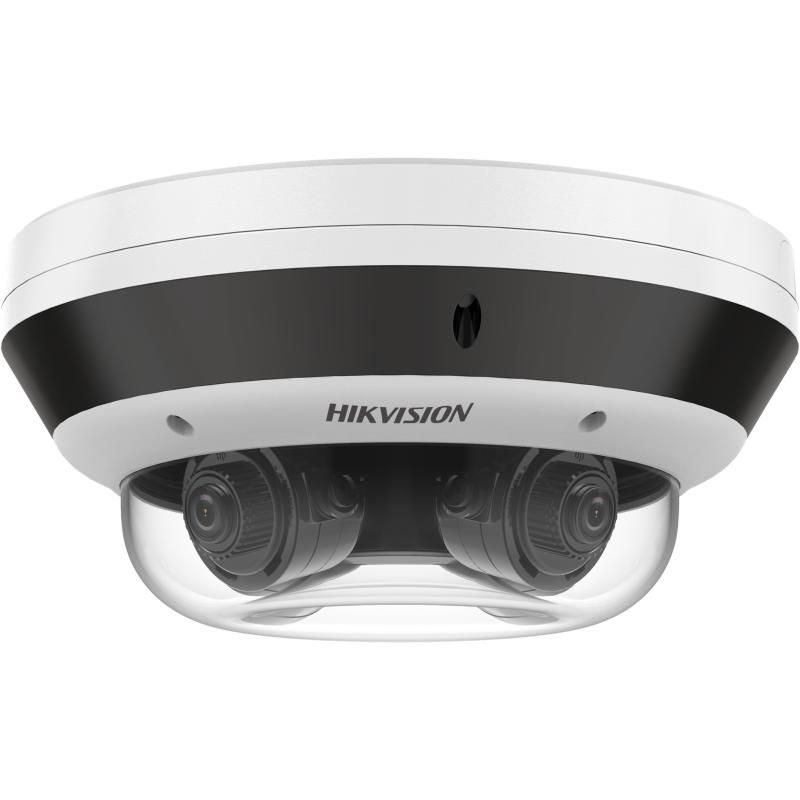

HIKVISION DS-2CD6D54G1-IZ(S) 4-Directional Multisensor Network Camera

EOL

4-Directional Multisensor Network Camera

• 4 adjustable lenses in one camera cover up to 360° field of view, ensuring no blind area monitoring and the monitoring tilt angle can be adjusted
• Each lens up to 5 MP, capturing clear images, and more details can be displayed on video wall
• Clear imaging against strong back light due to 120 dB true WDR technology
• Water and dust resistant (IP67) and vandal proof (IK10)
• 3D DNR technology delivers clean and sharp images
• -S: audio and alarm interface available

•

• Specification

  • Camera

  • Lens

  • Illuminator

  • Video

  • Audio

  • Network

  • Image

  • Interface

  • Event

  • General

  • Approval

  • Camera
  • Image Sensor1/2.7″ Progressive Scan CMOS
  • Max. Resolution2560 × 1920
  • Min. Illumination

    Color: 0.0125 Lux @(F1.9, AGC ON)

    B/W: 0.0025 Lux @(F1.9, AGC ON), 0 Lux with IR

  • Shutter Time1 s to 1/100,000 s
  • Day & NightIR cut filter
  • Angle AdjustmentPan: -60° to 60°, tilt: 10° to 90°, rotate: 0° to 350°

  • Lens
  • Lens TypeVarifocal lens, 2.8 to 8 mm
  • Focal Length & FOV2.8 to 8 mm, horizontal FOV 100° to 49°, vertical FOV 72° to 36.4°, diagonal FOV 134.4° to 61.4°
  • Lens MountØ14
  • FocusManual, semi-auto
  • ApertureF1.9

  • Illuminator
  • Supplement Light TypeIR
  • Supplement Light RangeUp to 30 m
  • IR Wavelength850 nm

  • Video
  • Main Stream

    50 Hz: 25 fps (2560 × 1920, 2048 × 1536, 1920 × 1080, 1280 × 720)

    60 Hz: 24 fps (2560 × 1920, 2048 × 1536, 1920 × 1080, 1280 × 720)

  • Sub-Stream

    50 Hz: 25 fps (704 × 576, 640 × 480)

    60 Hz: 24 fps (704 × 480, 640 × 480)

  • Third Stream

    50 Hz: 6 fps (1920 × 1080, 1280 × 720, 704 × 576, 640 × 480)

    60 Hz: 8 fps (1920 × 1080, 1280 × 720, 704 × 480, 640 × 480)

  • Video Compression

    Main stream: H.265+/H.265/H.264+/H.264

    Sub-stream: H.265/H.264/MJPEG

    Third stream: H.265/H.264

  • Video Bit Rate32 Kbps to 16 Mbps
  • H.264 TypeBaseline Profile/Main Profile/High Profile
  • H.265 TypeMain Profile
  • Scalable Video Coding (SVC)H.264 encoding
  • Region of Interest (ROI)4 fixed regions for each stream
  • Target CroppingYes

  • Audio
  • Audio CompressionWith -S model: G.711/G.722.1/G.726/MP2L2/PCM
  • Audio Bit RateWith -S model: 64Kbps(G.711)/16Kbps(G.722.1)/16Kbps(G.726)/32-192Kbps(MP2L2)/32Kbps(PCM)
  • Audio Sampling RateWith -S model: 8 kHz/16 kHz/32 kHz/44.1 kHz/48 kHz
  • Environment Noise FilteringWith -S model: Yes

  • Network
  • ProtocolsTCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP, UPnP, SMTP, SNMP, IGMP, 802.1X, QoS, IPv6, UDP, Bonjour
  • Simultaneous Live ViewUp to 20 channels
  • APIOpen Network Video Interface (PROFILE S, PROFILE G, PROFILE T), ISAPI, SDK, Ehome
  • User/HostUp to 32 users. 3 user levels: administrator, operator and user
  • SecurityPassword protection, complicated password, HTTPS encryption, 802.1X authentication (EAP-MD5), watermark, IP address filter, basic and digest authentication for HTTP/HTTPS, WSSE and digest authentication for Open Network Video Interface
  • Network StoragemicroSD/SDHC/SDXC card (128 GB), local storage and NAS (NFS,SMB/CIFS), ANR
  • ClientiVMS-4200, Hik-Connect, Hik-Central
  • Web BrowserIE8+, Chrome41.0-44, Firefox30.0-51, Safari8.0-11

  • Image
  • Image SettingsRotate mode, saturation, brightness, contrast, sharpness, AGC, and white balance are adjustable by client software or web browser
  • Day/Night SwitchDay/Night/Auto/Schedule/Triggered by Alarm In (-S)
  • Wide Dynamic Range (WDR)120 dB
  • SNR≥ 52 dB
  • Image EnhancementBLC, HLC, 3D DNR, Defog, EIS
  • Picture OverlayLOGO picture can be overlaid on video with 128 × 128 24 bit bmp format

  • Interface
  • Ethernet Interface1 RJ45 10M/100M/1000M Ethernet port; built-in RS-232
  • On-Board StorageBuilt-in microSD/SDHC/SDXC slot, up to 128 GB
  • AudioWith -S model: 1 input (line in), 1 output (line out), 3.5 mm three-contact
  • AlarmWith -S model: 2 inputs, 2 outputs (max. 24 VDC, 1 A)
  • RS-485

    With -S model:

    1 RS-485 interface (half duplex, HIKVISION, Pelco-P, Pelco-D, self- adaptive)

  • Reset KeyYes

  • Event
  • Basic EventMotion detection, video tampering alarm, exception (network disconnected, IP address conflict, illegal login, HDD full, HDD error)
  • Smart Event

    Line crossing detection, up to 4 lines configurable

    Intrusion detection, up to 4 regions configurable

    Region entrance detection, up to 4 regions configurable

    Region exiting detection, up to 4 regions configurable

    Unattended baggage detection, up to 4 regions configurable

    Object removal detection, up to 4 regions configurable

    Scene change detection, audio exception detection(-S), defocus detection

  • LinkageUpload to FTP/NAS/memory card, notify surveillance center, send email, trigger alarm output, trigger recording, trigger capture

  • General
  • Power

    12 VDC± 20%, 1.8 A, 22 W, reverse polarity protection, three-core terminal block

    24 VAC ± 20%, 1.4 A, 22 W

    PoE: 802.3at, Class 4, 42.5 to 57 VDC, 0.44 to 0.33 A, 19 W

  • DimensionØ250 × 114.9 mm (9.8″ × 4.5″)
  • Package Dimension336 × 261 × 293 mm (13.2″ × 10.3″ × 11.5″)
  • WeightApprox. 2.2 kg (4.9 lb.)
  • With Package WeightApprox. 3.9 kg (8.6 lb.)
  • Storage Conditions-30 °C to 60 °C (-22 °F to 140 °F), humidity 95% or less (non-condensing)
  • Startup and Operating Conditions-30 °C to 60 °C (-22 °F to 140 °F), humidity 95% or less (non-condensing)
  • Language

    32 languages

    English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak,

    French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian,

    Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chinese, Thai,

    Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil)

  • General FunctionAnti-flicker, 3 streams, heartbeat, mirror, privacy masks

  • Approval
  • EMC

    FCC (47 CFR Part 15, Subpart B);

    CE-EMC (EN 55032: 2015, EN 61000-3-2: 2014, EN 61000-3-3: 2013, EN 50130-4: 2011 +A1: 2014);

    RCM (AS/NZS CISPR 32: 2015);

    IC (ICES-003: Issue 6, 2016);

    KV (KN 32:2015, KN 35: 2015)

  • Safety

    UL (UL 60950-1);

    CB (IEC 60950-1:2005 + Am 1:2009 + Am 2:2013, EN 60950-1:2005 + Am1:2009 + Am 2:2013);

    BIS (IS 13252(Part 1):2010+A1:2013+A2:2015)

  • Environment

    CE-RoHS (2011/65/EU);

    WEEE (2012/19/EU)

    Reach (Regulation (EC) No 1907/2006)

  • ProtectionIK10 (IEC 62262:2002), IP67 (IEC 60529-2013)
