LCD Parameter | |
Panel Size | 32″,43, 49″,55″, 65″ Optional |
Panel | LCD screen and led light |
Panel Brand | LG/Innolux/AUO/BOE etc. |
Resolution | 1920*1080, 3840*2160 optional |
Aspect Ratio | 16:9 |
Brightness | 500cd/m2 (Standard) support higher brightness customized. |
View Angle | 89°/89°89°/89°(Typical) |
Operation System 1: USB Version | |
CPU | V59 |
Memory | NO |
Wifi | NO |
Bluetooth | NO |
External Interfaces | USB 2.0 x 1, SD Card Slot x 1, HDMI Input x 1 |
Operation System 2: Android Version | |
OS | Android |
CPU | RK3188,RK3288,RK3399 Optional |
Memory | RAM 2GB+ ROM 8GB (Standard) |
Wifi | YES |
Bluetooth | YES |
External Interfaces | USB 2.0 x 2, RJ45 x 1, HDMI Output x 1,TF Card Slot x 1, Audio Output x 1, DC Input x 1 |
Operation System 3: Windows Version | |
OS | Windows |
CPU | i3/i5/i7 Optional |
Memory | RAM 4GB+ SSD 128GB (Standard) |
Wifi | YES |
Bluetooth | Optional |
External Interfaces | USB 2.0 x 2, USB 3.0 x 2, RJ45 x 1, Audio Input x 1, Audio Output x 1,VGA Output x 1, HDMI Output x 1, DC Input x 1 |
Material | |
Frame Material | Metal case, aluminum alloy frame |
Glass | 4mm tempered glass |
Touch Function Options | |
Capacitive Touch | 10 points |
Infrared Touch | 10 points |
Additional Fuction Options | |
Logo Print | Contact Sales for more info. |
RFID/Mifare Reader | |
USB Charging | |
PoE | |
Phone Charging Locker |

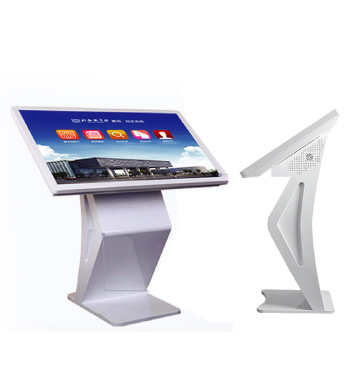

Detailed Photos
