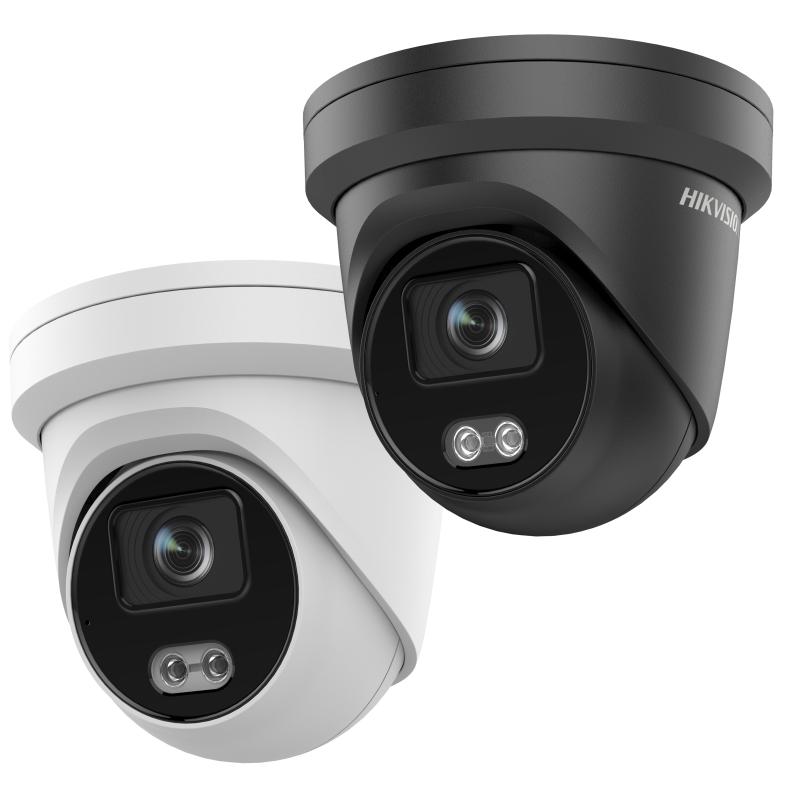

DS-2CD2347G2-LU(2.8MM)(C) Hikvision DS-2CD2347G2-LU(2.8mm)(C) 4 MP ColorVu Fixed Turret Network Camera

4 MP ColorVu Fixed Turret Network Camera

• High quality imaging with 4 MP resolution
• Efficient H.265+ compression technology
• Clear imaging against strong backlight due to 130 dB WDR technology
• Built-in microphone for real-time audio security(-U)
• Focus on human and vehicle targets classification based on deep learning
• 24/7 colorful imaging
• Water and dust resistant (IP67)

•

  Specification

  • Camera

  • Lens

  • DORI

  • Illuminator

  • Video

  • Audio

  • Network

  • Image

  • Interface

  • Event

  • Deep Learning Function

  • General

  • Approval

  • Camera
  • Image Sensor1/1.8″ Progressive Scan CMOS
  • Max. Resolution2688 × 1520
  • Min. IlluminationColor: 0.0005 Lux @ (F1.0, AGC ON), 0 Lux with white light
  • Shutter Time1/3 s to 1/100,000 s
  • Angle AdjustmentPan: 0° to 360°, tilt: 0° to 75°, rotate: 0° to 360°

  • Lens
  • Lens TypeFixed focal lens, 2.8, 4, and 6 mm optional
  • Focal Length & FOV

    2.8 mm, horizontal FOV 112°, vertical FOV 61°, diagonal FOV 134°

    4 mm, horizontal FOV 95°, vertical FOV 51°, diagonal FOV 115°

    6 mm, horizontal FOV 58°, vertical FOV 31°, diagonal FOV 69°

  • Lens MountM16
  • Iris TypeFixed
  • ApertureF1.0
  • Depth of Field

    2.8 mm, 2.5 m to ∞

    4 mm, 3.5 m to ∞

    6 mm, 7.5 m to ∞

  • DORI
  • DORI

    2.8 mm, D: 58 m, O: 23 m, R: 11 m, I: 6 m

    4 mm, D: 77 m, O: 30 m, R: 15 m, I: 7 m

    6 mm, D: 115 m, O: 45 m, R: 23 m, I: 11 m

  • Illuminator
  • Supplement Light TypeWhite Light
  • Supplement Light RangeUp to 30 m
  • Smart Supplement LightYes

  • Video
  • Main Stream

    50 Hz: 25 fps (2688 × 1520, 1920 × 1080, 1280 × 720)

    60 Hz: 30 fps (2688 × 1520, 1920 × 1080, 1280 × 720)

  • Sub-Stream

    50 Hz: 25 fps (1280 × 720, 640 × 480, 640 × 360)

    60 Hz: 30 fps (1280 × 720, 640 × 480, 640 × 360)

  • Third Stream

    50 Hz: 10 fps (1920 × 1080, 1280 × 720, 640 × 480, 640 × 360)

    60 Hz: 10 fps (1920 × 1080, 1280 × 720, 640 × 480, 640 × 360)

    *Third stream is supported under certain settings.

  • Video Compression

    Main stream: H.265/H.264/H.265+/H.264+

    Sub-stream: H.265/H.264/MJPEG

    Third stream: H.265/H.264

    *Third stream is supported under certain settings.

  • Video Bit Rate32 Kbps to 8 Mbps
  • H.264 TypeBaseline Profile/Main Profile/High Profile
  • H.265 TypeMain Profile
  • Bit Rate ControlCBR/VBR
  • Scalable Video Coding (SVC)H.264 and H.265 encoding
  • Region of Interest (ROI)1 fixed region for main stream and sub-stream

  • Audio
  • Audio Compression-U: G.711ulaw/G.711alaw/G.722.1/G.726/MP2L2/PCM/MP3/AAC-LC
  • Audio Bit Rate-U: 64 Kbps (G.711ulaw/G.711alaw)/16 Kbps (G.722.1)/16 Kbps (G.726)/32 to 192 Kbps (MP2L2)/8 to 320 Kbps (MP3)/16 to 64 Kbps (AAC-LC)
  • Audio Sampling Rate-U: 8 kHz/16 kHz/32 kHz/44.1 kHz/48 kHz
  • Environment Noise Filtering-U: Yes

  • Network
  • ProtocolsTCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, NTP, UPnP, SMTP, IGMP, 802.1X, QoS, IPv4, IPv6, UDP, Bonjour, SSL/TLS, PPPoE, SNMP, ARP, WebSocket, WebSockets
  • Simultaneous Live ViewUp to 6 channels
  • APIOpen Network Video Interface (PROFILE S, PROFILE G, PROFILE T), ISAPI, SDK
  • User/HostUp to 32 users. 3 user levels: administrator, operator and user
  • SecurityPassword protection, complicated password, HTTPS encryption, IP address filter, Security Audit Log, basic and digest authentication for HTTP/HTTPS, TLS 1.1/1.2, WSSE and digest authentication for Open Network Video Interface
  • Network Storage

    MicroSD/microSDHC/microSDXC card (512 GB) local storage, and NAS (NFS, SMB/CIFS), auto network replenishment (ANR)

    Together with high-end Hikvision memory card, memory card encryption and health detection are supported

  • ClientiVMS-4200, Hik-Connect, Hik-Central
  • Web Browser

    Plug-in required live view: IE 10, IE 11

    Plug-in free live view: Chrome 57.0+, Firefox 52.0+, Edge 89+

    Local service: Chrome 57.0+, Firefox 52.0+, Edge 89+

  • Image
  • Image Parameters SwitchYes
  • Image SettingsRotate mode, saturation, brightness, contrast, sharpness, gain, white balance adjustable by client software or web browser
  • Day/Night SwitchAuto, Schedule
  • Wide Dynamic Range (WDR)130 dB
  • SNR≥ 52 dB
  • Image EnhancementBLC, HLC, 3D DNR

  • Interface
  • Ethernet Interface1 RJ45 10 M/100 M self-adaptive Ethernet port
  • On-Board StorageBuilt-in memory card slot, support microSD/microSDHC/microSDXC card, up to 512 GB
  • Built-in Microphone-U: Yes
  • Reset KeyYes

  • Event
  • Basic EventMotion detection (human and vehicle targets classification), video tampering alarm, exception
  • Smart Event

    Line crossing detection, intrusion detection, region entrance detection, region exiting detection

    Scene change detection

  • LinkageUpload to NAS/memory card/FTP, notify surveillance center, trigger recording, trigger capture, send email

  • Deep Learning Function
  • Face CaptureYes

  • General
  • Power

    12 VDC ± 25%, 0.55 A, max. 6.6 W, Ø5.5 mm coaxial power plug, reverse polarity protection

    PoE: 802.3af, Class 3, 36 V to 57 V, 0.22 A to 0.13 A, max. 7.6 W

  • DimensionØ138.3 mm × 125.2 mm (Ø5.4″ × 4.9″)
  • Package Dimension170 mm × 170 mm × 150 mm (7″ × 7″ × 5.9″)
  • WeightApprox. 750 g (1.7 lb.)
  • With Package WeightApprox. 1055 g (2.3 lb.)
  • Storage Conditions-30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)
  • Startup and Operating Conditions-30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)
  • Language

    33 languages

    English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chinese, Thai, Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil), Ukrainian

  • General FunctionAnti-flicker, heartbeat, mirror, privacy mask, flash log, password reset via email, pixel counter

  • Approval
  • EMC

    FCC SDoC (47 CFR Part 15, Subpart B);

    CE-EMC (EN 55032: 2015, EN 61000-3-2: 2014, EN 61000-3-3: 2013, EN 50130-4: 2011 +A1: 2014);

    RCM (AS/NZS CISPR 32: 2015);

    IC VoC (ICES-003: Issue 6, 2016);

    KC (KN 32: 2015, KN 35: 2015)

  • Safety

    UL (UL 60950-1);

    CB (IEC 60950-1:2005 + Am 1:2009 + Am 2:2013, IEC 62368-1:2014);

    CE-LVD (EN 60950-1:2005 + Am 1:2009 + Am 2:2013, IEC 62368-1:2014);

    BIS (IS 13252(Part 1):2010+A1:2013+A2:2015);

    LOA (IEC/EN 60950-1)

  • EnvironmentCE-RoHS (2011/65/EU); WEEE (2012/19/EU); Reach (Regulation (EC) No 1907/2006)
  • ProtectionIP67 (IEC 60529-2013)
