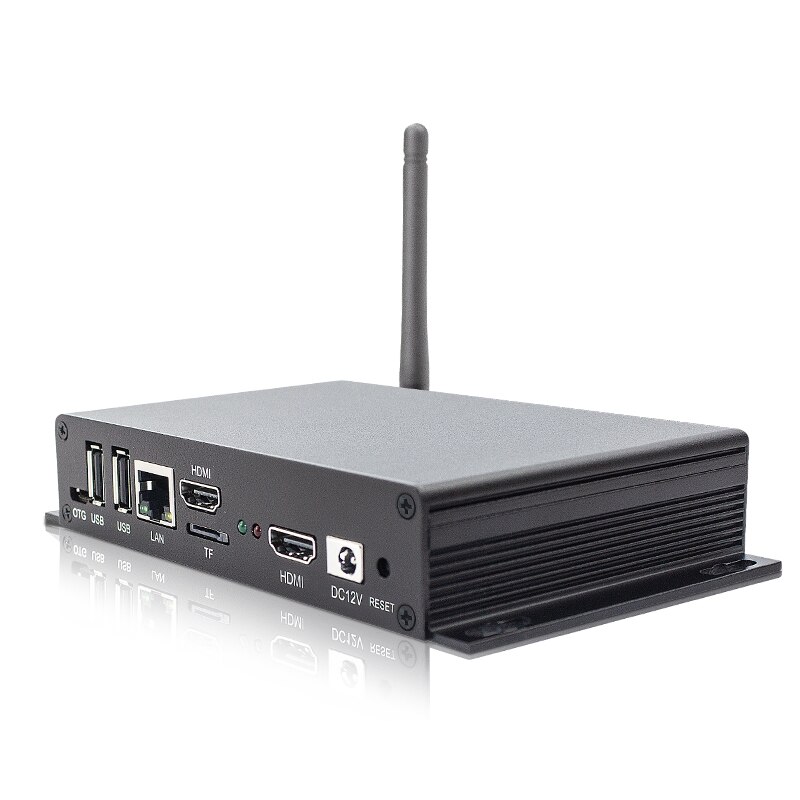

HD 4K(4096*2160)Androidadvertising media player box
Display Effect–XTA3368T
·Real-time data like Time / Date / Weather / Traffic / News / Social Media;
·Texts – Static/Scrolling texts, or texts dynamically updated via external feed sources; ·Images – Static/Scrolling images, usually digital advertisement posters;
·Videos – Usually commercial advertisements, also can be live TV programs.
·Interactive Interfaces – With touch screens and peripheral devices, allowing communication with your audience in many ways.
Systemcomposition
Sinten Networking Information Release System consists of information collection, control center (B / S center server, workstation), display terminal and transmission network.
1) Information collection: Information collection is stored on the publishing software server in the form of data upload to achieve the collection of various unstructured data such as text, pictures, audio and video.
2) Control Center: It consists of B / S server and workstation equipment, manages the user login information, content and equipment of the entire system, arranges various information sources, monitors and manages terminal equipment. The centralized remote control mode is used to control the display terminals in each area. The display terminal IP can be managed, and group or single-point control can be realized.
3) Terminal display: The terminal display mainly includes controllers, transmitters and various display devices. It receives and executes multimedia information and controls controlled by the center. It is automatically broadcast according to the schedule through terminal software. The terminal display can build a unified information publishing platform based on different display devices such as CRT displays, liquid crystal displays, plasma display screens, projectors, touch inquiry machines and all-in-ones.
4) Transmission network: It can use the integrated wiring system and the internal network data network for transmission. It is not limited to the local area network, but also can be used for wide area network.
CPU | RK3368 Coretex-A53 8-core 1.6GHz | |
DDR | DDR-3 1GB | |
NAND | 16GB NAND Flash | |
HDMI | HDMI 2.0,MAX SUPPORT 4K(4096*2160) | |
VGA | NONE | |
HDMI | HDMI stereo | |
Audio interface | standard 3.5mm stereo interface | |
MIC | NONE | |
Earphone | NONE | |
Ethernet | 10/100Mbps Ethernet | |
WIFI | Wireless protocol802.11b/g/n | |
TF CARD | TF CARD PORT*1,MAX SUPPOR 128G | |
USB2.0 | USB 2.0×2 Host port | |
HDMI input | HDMI1.4 input Max support 1080P | |
Bluetooth | bluetooth | |
Android | 5.1 | |
FORMATE | All supported video formats decode: | MPEG-1/2,MPEG-4,DIVX,REAL MEDIA,H.264,MVC,GOOGLE VP8,WMV9/VC1,H.263,SORENSON SPARK,ON2 VP6, MJPEG,H.265/HEVC_ 4K2K@60fps 10Bit,H.264/AVC _ 4K2K@25fps |
Machine (LxWxH) mm | 156mm*91mm-*28mm | |
Packaging (LxWxH) mm | 200mm*140mm*40mm | |
Machine weight | 0.3(KG) | |
Packaging weight | 0.38(KG) |
