Product Description

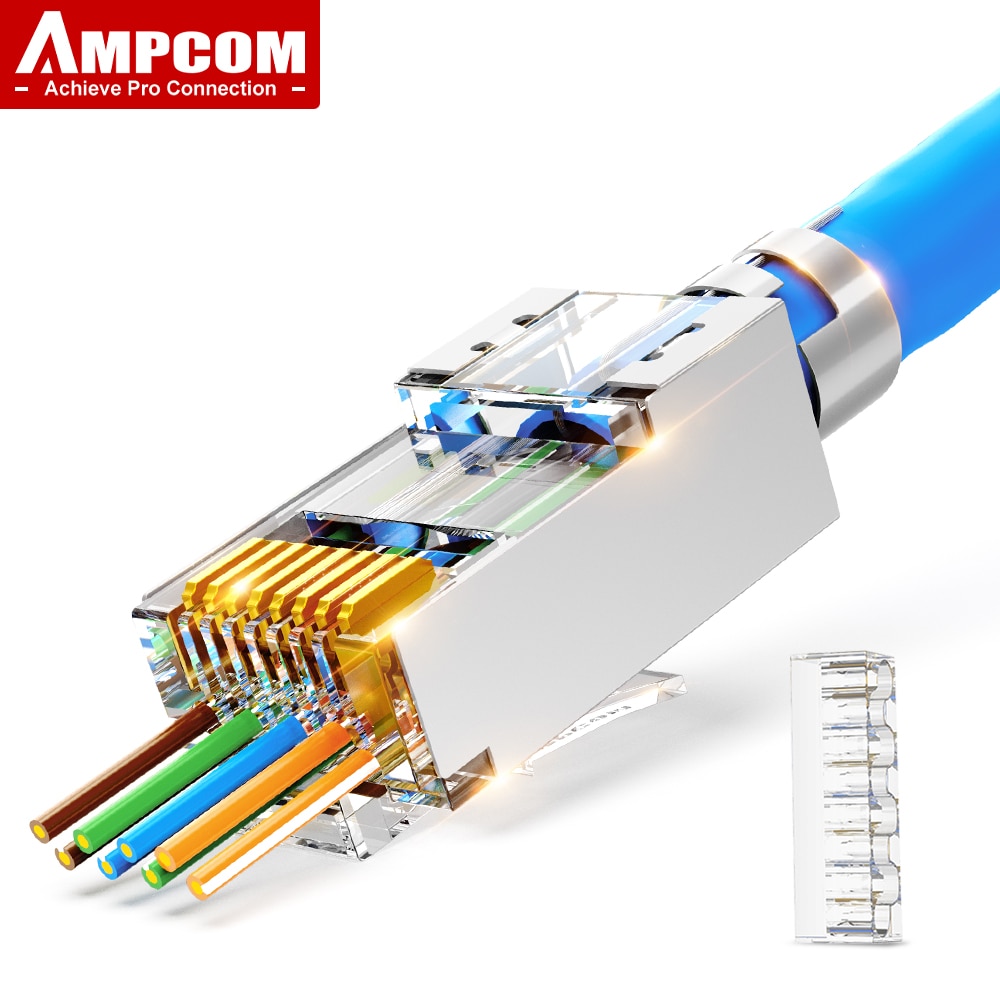

These RJ45 modular connectors are designed to work specifically with CAT6A and CAT7 cables.Max conductor hole is ⌀1.5MM, supporting individual twisted pair conductor wire sizes up to 1.3mm~1.45mm.
Perfect Shielded Shell-The shell of the connector is made of anti-interference pure copper material, and the surface is completely nickel-plated, which perfectly protects your network from signal loss and electromagnetic interference. In addition, swallowtail clip design can facilitate the connection of the ground wire, ensure high stability of network transmission, and maximize the opening of the shielding function.
50 Micron Gold Plated Contacts provides a fully contact with wire conductor and ensure excellent conductivity ,Maintaining a Superior and Reliable Data Transmission,supporting up to 10 Gigabit transmission speed.
2 Piece Pass Through Design Save Your Time–It is generally difficult to install network cables with thick diameters. These crystal heads are equipped with transparent load bars. You can confirm the wire sequence before the insert them into the connector. This can greatly simplify serial authentication and shorten installation time.
100% 50U gold plated -compared to other “fake 50U gold plated” on the market, AMPCOM connectors can pass the equipment testing to ensure the best quality to the user
Engineering Project Wiring
CAT6A/CAT7/CAT8 Compatible STP RJ45 Plug
Strict Quality Control System
Tested by Willeke/ CTTL Lab Testing & Certification Lad
Pass-through Type STP RJ45 Plug
Nickel-plated Copper Shell Case
Nickle Plated Case/ Precision Machining/ Thickened STP Case
3/50U THicker Gold Plated
1.5mm Enlarged Aperture
High-toughness Retaining Clip
Complimentary Load Bar
High Quality PC Material
LG Eco-friendly Flame Retardant Case
Tri-point Pins Increasing the Contact Area
Thickened STP Shell Precision Manufacturing
Rust-resistant Case Passing a 24-hour Salt Spray Test
Note:the data is sourced from Ampcom Lab
Tail with a Cable Clip
Easy and Convenient Installation
Load Bar
Exclusive Strain Relief Boots ( Note: Strain Relief Boots are not included)
Offers an Easy, Convenient, and Simple Way
The Appearance is More Outstanding
Exquisite Packaging
This packaging is intended for product display purposes only. Please refer to the actual product packaging and its contents as received.
Steps to Crimp Connector
1.Use a tool to remove the outer jacket and trim it to approximately 3 cm in length.
2.Put SR and load bar into the cable in advance and arrange the wire cores according to the 568B.
3.Insert the wire cores into the plug and make sure the wire cores pass through the top wire slots.
4.Place the plug into the crimping tool and then trim off the excess wire cores.
5.Crimp the tail into the port for crimping.
6.Complete.
Multiple Certifications More Confidence In Use
