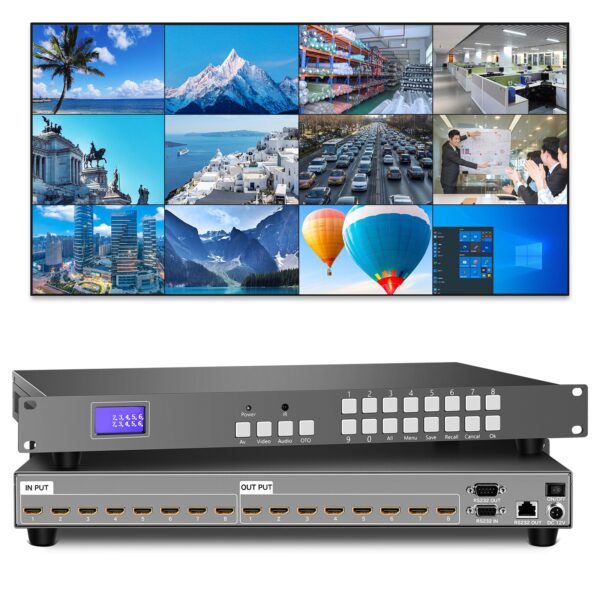

Product display Supports 8 HDMI inputs, 8 HDMI outputs, the entire hardware architecture has no CPU and operating system, supports hot swapping, industrial-grade quality, and the system is stable and reliable. |
HDMI Matrix Switcher 8×8 input and output connection reference diagramSupports Multiple HDMI device inputs for your Multiple uses Support a Variety of Control Methods, Plug-and-play Operation is Simple Professional switching matrix High technology leads a new generation |
Application scenarios A new generation of HDMI high-definition matrix, supports HDMI1.4a standard, resolution up to 1920*1080@60HZ, supports audio and video synchronous switching, suitable for conference rooms, command centers, multimedia rooms and other application scenarios. |
Features 1. Full hardware architecture without CPU and operating system; 2. All boards are modular in design, support hot swap, the system is stable and reliable; 3. Adopt 6.5GHz high-bandwidth chip; 4. Support HDCP decryption, Blu-ray, 3D; 5. Support signal timing reorganization, CEC, 36-bit true color technology; 6. Support HDMI 1.4a protocol version support: 1080P@120Hz, 1080P 3D@60Hz, and the following resolution; 7. Support multiple control methods such as button, infrared remote control, RS232 serial port, TCP/IP, etc.; 8. Support EDID self-adaptation function, better adapt to the diversified display equipment on site, improve compatibility; 9. Long-term drive capability: The input is equipped with automatic equalization, which effectively reduces the deterministic jitter caused by line transmission; 10. The output has a pre-emphasis function so that the receiver can still receive signals after long-term transmission. The high-quality HDMI 2.0 cable is used, and the input and output distance can reach 25 meters; 11. The input supports receiving delay, effectively responding to time compensation when the differential pairs are not equal in length; 12. On-site protection function of power-down memory; 13. The HDMI video matrix adopts external power supply and aviation spiral power supply interface to protect the stability of the power supply. |
HD output real effect HDMI HD video signal truly reproduces the effect of the video scene |
HD 3d video effect 3D image frequency doubling repair, adjacent pixel repeat processing and 3D de-interlacing processing functions for image repair. |
Audio and video synchronization transmission Support hdmi signal audio and video synchronous transmission to achieve lossless distribution switching |
System topology System connection diagram,Help you troubleshoot how to connect |
Product display |
