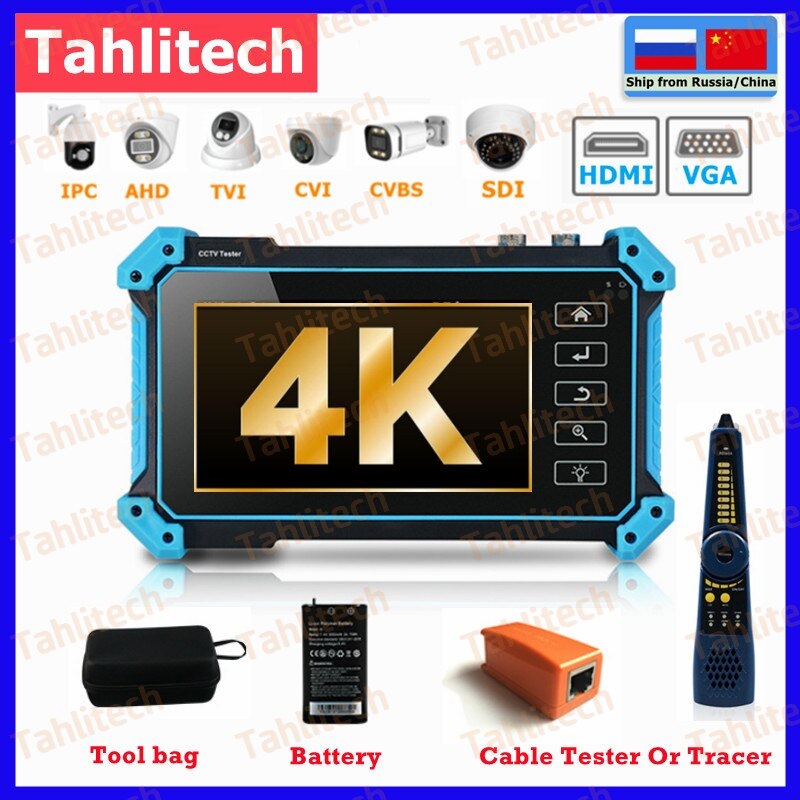

5.4″ CCTV Tester IP Tester IPC5200C IPC5100 Tester 4K Monitor Testers HDMI VGA CCTV for IPC POE AHD CVI TVI SDI Cable Testing

Key Features:

● 5-inch IPS touch screen, 1920×1080 resolution

● Support up to 8MP CVI/ TVI/ AHD camera test

● Support up to 8MP EX-SDI, HD-SDI, 3G-SDI test

● H.265/H.264, 4K video display via mainstream

● VGA input, support 1920 x 1200P 60FPS

● HDMI Input, support 4K 30FPS

● DC12V 3A, 48V POE power output

● Rapid ONVIF, Create the test report and modify IP address, etc

● Auto HD, auto recognize HD coax camera type

and resolution

● RJ45 TDR cable test, cable quality test

● UTP cable test, detect the near-end, mid-end and far-end fault point of the RJ45 cable plug

● Multil-Languages Supported: English, Chinese, Korean, Russian, Italian, French, Polish, Spanish, Japanese, Deutsch, Turkish, Portuguese, Czech

Applications:

The 5 inch IPS touch screen IP camera tester is designed for maintenance and installation of IP analog, HD coaxial cameras as well as other security equipment. The 1920*1080 resolution enables it to display network HD cameras and analog cameras in high resolution. The unit supports many ONVIF PTZ and analog PTZ control, and cable test functions. CCTV installers often need to carry a variety of testing tools to complete their work. If take the all in one camera tester, making working conditions safer and increasing productivity.



TT-IPC5100 Plus:

Support 8MP TVI+8MP CVI+8MP AHD+4K H.265 IP +Analog+HDMI IN+VGA IN test

TT-IPC5100C Plus:

Support 8MP TVI+8MP CVI+8MP AHD+4K H.265 IP +Analog+HDMI IN+VGA IN test + Cable Tracer

TT-IPC5200 Plus:

Support 8MP TVI+8MP CVI+8MP AHD+4K H.265 IP +Analog+EX-SDI/HD-SDI+HDMI IN+VGA IN test

TT-IPC5200C Plus:

Support 8MP TVI+8MP CVI+8MP AHD+4K H.265 IP +Analog+EX-SDI/HD-SDI+HDMI IN+VGA IN test + Cable Tracer



Interface of TT-IPC5100 & 5100C Plus:

Interface of TT-IPC5200 & 5200C Plus:

Key Functions:

Auto HD app, auto recognize HD coax camera type and resolution, support snapshot, video record & playback, coaxial PTZ & call OSD menu.

● VGA input, up to 2048 x 1152 60FPS, support snapshot, video record & playback*

● HDMI Input, up to 4K 30FPS, support snapshot, video record & playback*
