4K 60hz 8×8 HDMI Matrix 1080p Audio Video Converter HDMI Switch Splitter for PS4 Laptop PC To TV HDTV Multi Monitors 8 In 8 Out



V2.0 HDMI Matrix 8×8 4K@60Hz(RGB/YUV 4:4:4)EDID switch Splitter 8 in 8out True Matrix

Brand new and high quality,buy with confidence!

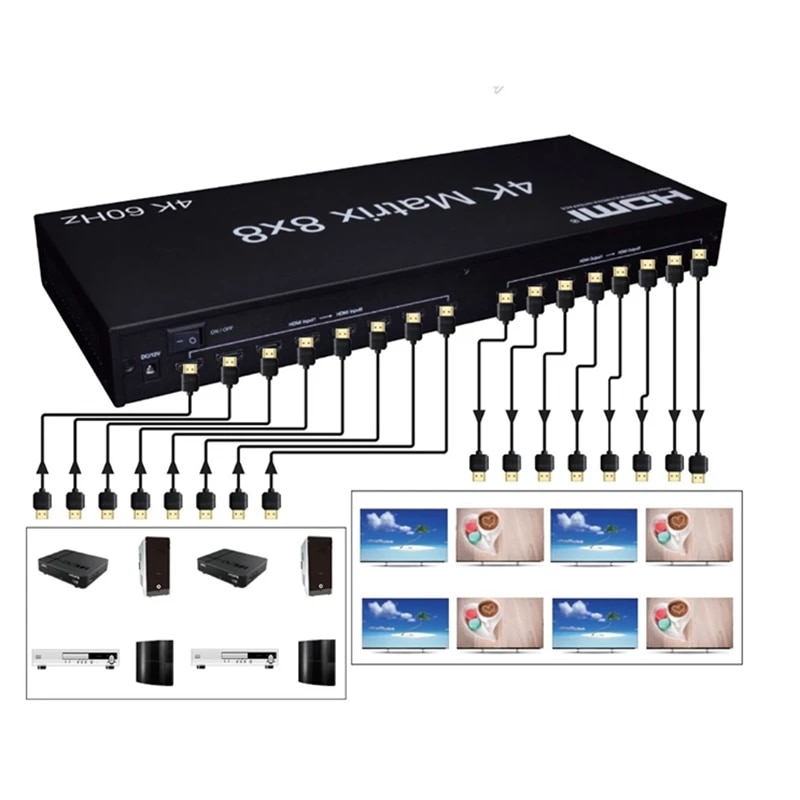

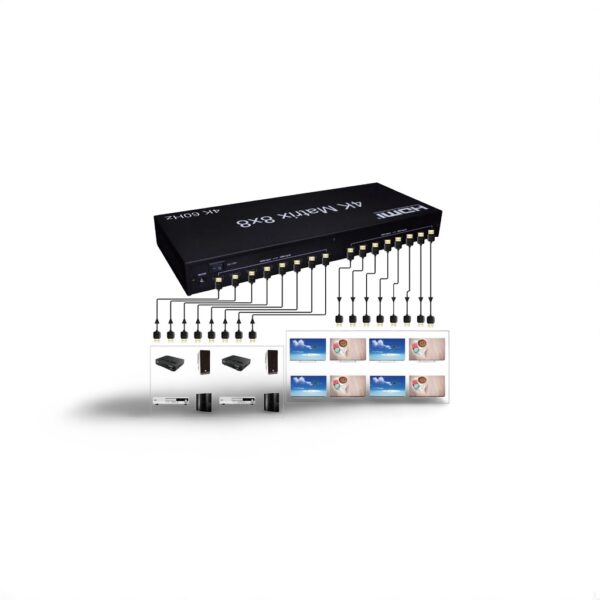

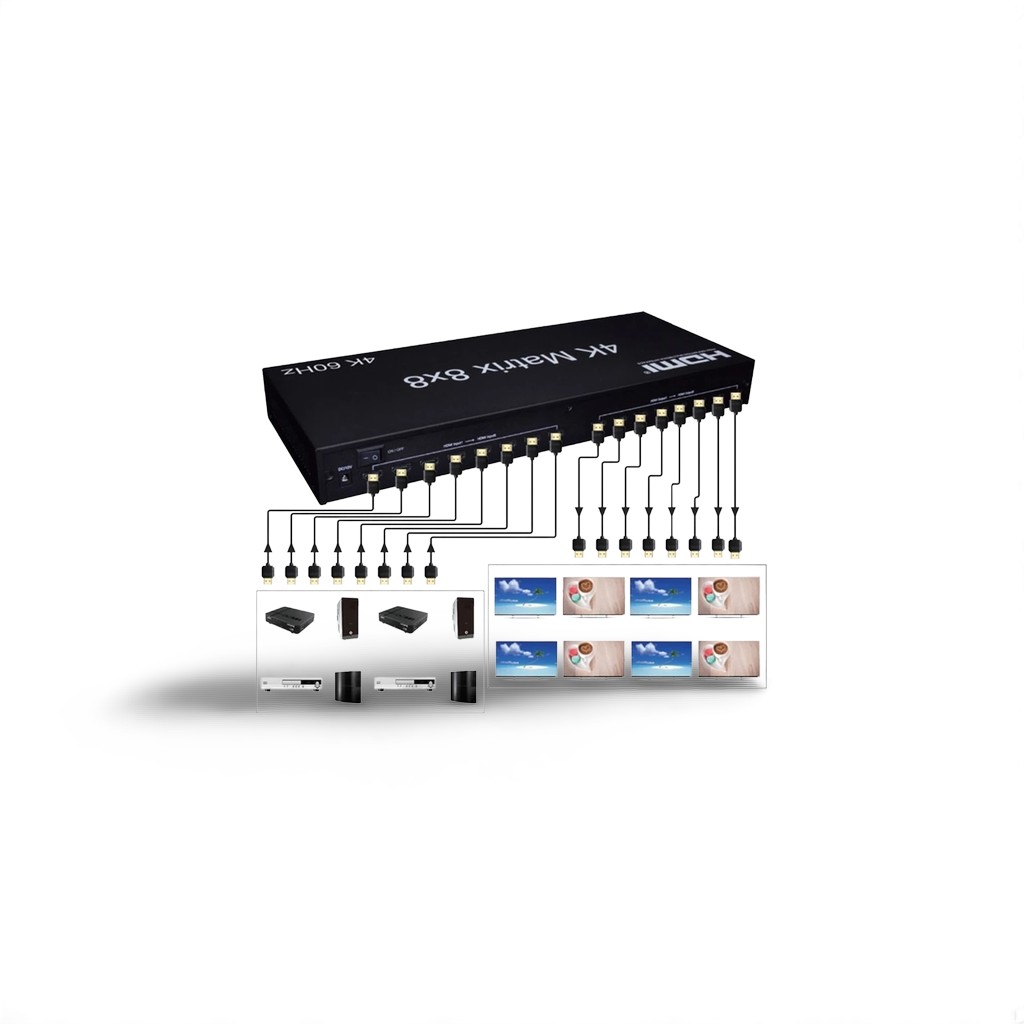

The HDMI Matrix 8×8 can connect eight HDMI signal sources with the eight displays at the same time.

It can easily and freely split or switch eight hdmi signals on eight displays or projectors which

compatible with hdmi signal.

Extra infrared receiver extension, IR emitter, RS232 are supplied for remote control.

HDMI matrix 8×8 has the ability of equalization and amplification to ensure HDMI signal’s

transmission through long cable without quality loss.

This HDMI matrix offers solutions for digital entertainment center, HDTV,retail and show site,

HDTV, STB, DVD and projector factory, noise, space and security concerns, data center control,

information distribution, conference r ntation, school and corporate training environments.





Features :

* Brand new and high quality !

* Stable and reliable

* Economical and cost-effective



* Support 3D;

* Support IR Remote Control;

* Support RS232 Control;

* The eight outputs could show the same or different source simultaneously;

* Support 4K (input) resolution 2K (output) (Downscaling);



Specifications :



HDMI resolution ………………………………………………………………………… up to 4K/60Hz

Support video format …………………………………………………………….8/10/12 bit deep color

Support audio format ……………………… DTS-HD/Dolby-trueHD/LPCM7.1/DTS/Dolby-AC3

Max baud rate ………………………………………………………………………………. 18Gbps

Input cable distance …………………. ≤5m HDMI AWG26(4K);≤20m HDMI AWG26(1080P)

Output cable distance ……………….. ≤5m HDMI AWG26(4K);≤20m HDMI AWG26(1080P)

HDMI Input …………………………………………………………………………………………… 8

HDMI Output …………………………………………………………………………………………. 8

Max working current …………………………………………………………………………… 2.6A

Power adapter format ……………… Input: AC (50HZ, 60HZ) 100V-240V; Output: DC12V/3A

Operating Temperature range …………………………………………………….. (-15 to +45℃)

Operating Humidity range …………………………………….. 5 to 90%RH (No Condensation)

Dimension (L x W x H) ……………………………………………………..Approx. 276x143x26 (mm)

Weight ………………………………………………………………………………………….. Approx. 1950g



Package Accessories :

1. HDMI Matrix 8×8 1PCS

2. IR Remote Control without Battery 1PCS

3. IR Receiver cable 1PCS

4. 12V DC power adapter 1PCS

5. User Manual 1PCS

Without retail box,if need,pls contact us first
