2023 4×2 HDMI Matrix Switch Splitter 4 In 2 Out 2 In 2 Out with SPDIF L/R 3.5mm HDR HDMI-compatible Switch ARC 4K@60Hz for PS5

GatewayPrice
PayPal$85.05
Add to wishlist
Compare

Delivery to Dubai Africa 7 working days

د.إ315.00

Compare

Description

Report Item

If you like our products please you add to cart or add to Favorites,Surprise coupons is waiting for you to extract,
more refined small gifts free to send, please contact customer service.
If you follow our store and become our fans, you can get extra 5% discount.

ugreen vention baseus

2023 4K@60Hz HDMI Matrix 4×2 Switch Splitter Support HDCP 2.2 2 in 2 out HDMI Switch 2×2 Spdif 4K HDMI Matrix Switch

Description:

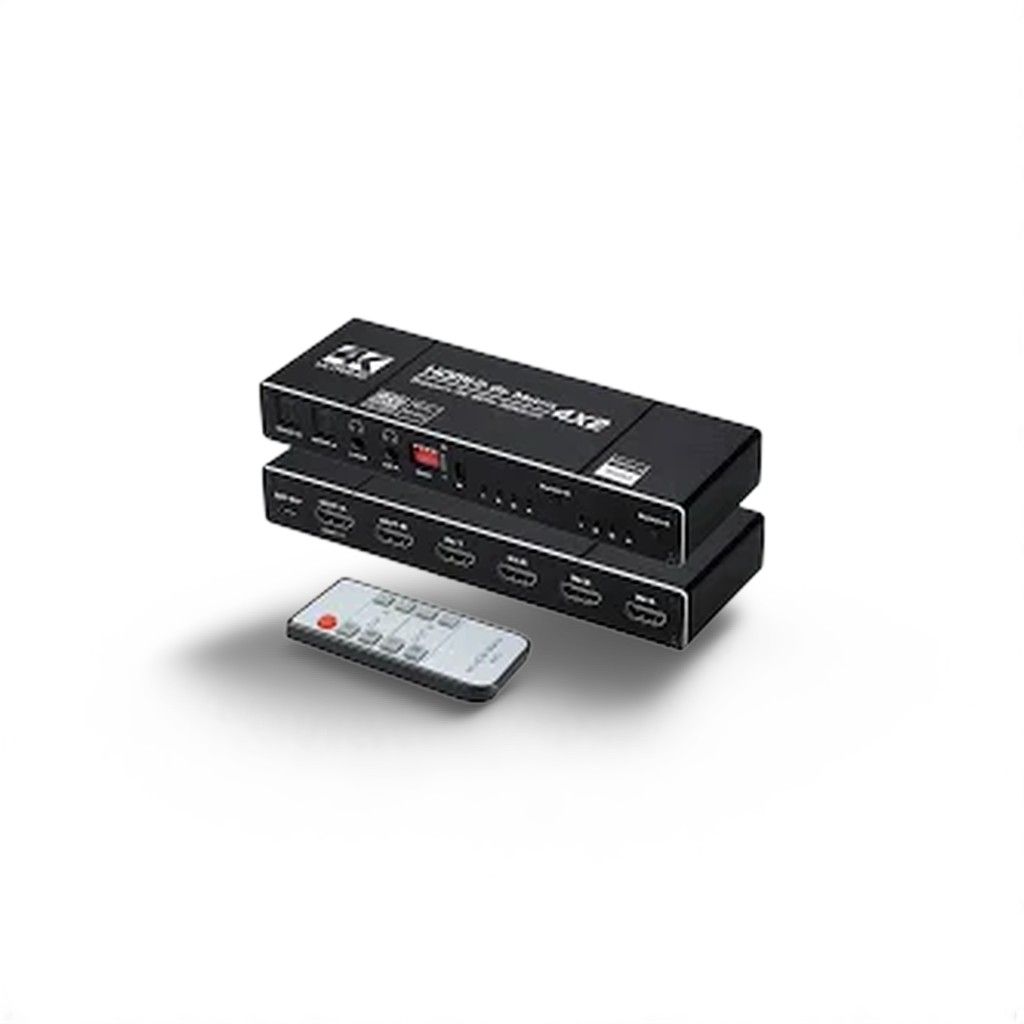

ZY-HM42,Navceker 4×2 HDMI Matrix Switch is with 4 HDMI inputs and 2 HDMI outputs. It is a true matrix and can distribute any one of 4 sources to either of 2 displays, and can work as a splitter to show the same source on 2 displays simultaneously. It  supports input and output resolutions up to 4Kx2K/60HZ

There are 4 models optional, different model has different interface and appearance, please choose suitable model before purchase:

(1) The Black color is ZY-HM22A,HDMI 2.0b and HDCP 2.2,4K@60Hz  HDMI Matrix switch 2×2 with HDR10,2xSPDIF Audio, 2×3.5mm L/R Audio,Downscaler 4K to 1080P and RGB 4：4:4/8:8:8(Dolby ATMOS).
(2) The White color is ZY-HM42,HDMI 2.0b and HDCP 2.2,4K@60Hz  HDMI Matrix switch 4×2 with HDR10,2xSPDIF Audio, 2×3.5mm L/R Audio,Downscaler 4K to 1080P, RGB 4：4:4/8:8:8(Dolby ATMOS) and 16 kinds of EDID mode.
(3) The Blue color is ZY-HM44,HDMI 2.0b and HDCP 2.2,4K@60Hz  HDMI Matrix switch 4×4 with HDR10,RGB 4:4:4/8:8:8(Dolby ATMOS) and 16 kinds of EDID mode.

Features:

Excellent Quality

  • [4 In 2 Out HDMI Matrix] HDMI matrix allows you to connect four 4K HDR signal sources to two HD displays or projectors at the same time. It is the combination of HDMI splitter and switch. Any output port can realize independent audio output by SPDIF/optical fiber or L/R stereo headphone. Aluminum alloy shell provides durability and helps heat dissipation. Convenient for work and home using, information distribution, conference room presentation, school, and corporate training environments.
  • [4K 60Hz High Resolution] 4 inputs and 2 outputs HDMI matrix supports highest resolution up to 3840*2160 60Hz, also Ultra HD, 4K 30Hz, 2K@144Hz, 1440p, 1080p, 3D, RGB 4:4:4 and RGB 8:8:8. Data rate reaches 18.5Gbps and tmds clock up to 600Mhz. 4 in 2 out HDMI matrix supports 8/10/12/24/32/48bit deep color and HDCP 2.2, HDMI2.0b. Remember to set EDID correctly and embrace your stunning visual experience!
  • [Audio Extraction & EDID] 4K HDMI matrix supports LPCM/Dolby/DTS 5.1 channel/2CH audio and smart EDID management. 4×2 HDMI matrix supports HDMI audio output, 3.5mm L/R earphone or headphone stereo analog audio, and SPDIF/optical digital audio output(soundbar, etc) at the same time or separately.
  • [Wide Compatibility] HDMI matrix switcher splitter supports computer, game console, PS3, PS4, PS4 Pro, Xbox, Xbox One, HD player, Fire TV, IPTV-STB, Apple TV, etc to be the signal sources, supports projector, HDTV, display, etc to be the outputs and supports amplifier, speaker, earphone and headphone to extract sound.
  • [100% Satisfaction Customer Service] We offer HDMI matrix x 1, IR Remote Control x 1, DC5V Power Adaptor x 1, and User Manual x 1. We strive to be a premium manufacturer of electronic accessories so we trust our products and each product comes with tech support and a 24-month warranty.
Specifications
– Product Type:HDMI Splitter 1×4.
– Interface Type: 4 HDMI in, 2 HDMI out
– Color: Black
– Power Supply: DC 5V.
– Max working current: 600mA
– Operating Temperature range -15°C to+45°C
– Dimension (LxWxH): 170*56*24mm
– Weight: 0.175kg
Features
– Support HDMI 2.0b HDCP 2.2
– Support 3D video format
– Support highest resolution up to 3840×2160/60Hz
– Support 18.5Gbps 3 data rate and tmds clock up to 600Mhz
– Support deep color 8/10/12/24/32/48bit
– Support HDMI audio outputs ,3.5 mm earphone jack and optical output at same time
– HDMI resolution: up to 3840*2160/60 Hz, RGB 4:4:4
– 4 HDMI inputs switch and split to 2 HDMI displays
– Support LPCM/Dolby/DTS 5 1 audio
Package contents
1x HDMI Matrix 4X2
1x 5V power adapter
1x IR Remote Control(Battery is not included)
1x User Manual
Note:
EDID the dial switch to dial downward is 1, dial upward is 0.
1. The Remote Control instruction:
(1) The four buttons on OUT A is the corresponding input source IN1-IN4from OUT AJN1-IN4 can be switched freely.
(2) The four buttons on OUT B is the corresponding input source IN1-IN4 from OUT B, IN1-IN4 can be switched freely.
2. Instruction of Buttons and LED:
(1) Instruction of LED: W1-IN4 indicator is the corresponding input sources out from OUT A or OUT B,
(2) Operation of Buttons: SWITCH A or SWITCH B is used to switch the corresponding inpul source out from OUT A or OUT B.

Buyer Questions & Answers (4)

  • What are the highlights of it?

    • The highlights include its 4K resolution, HDMI 2.0 and HDCP 2.2 compatibility, and Dolby vision support.

  • What are the benefits of using it?

    • The benefits include easy switching between multiple HDMI devices, high-quality 4K resolution, and compatibility with various audio and video standards.

  • What is the function of the wire?

    • It is a 4 port HDMI 2.0 4K HDMI switcher with IR control.
