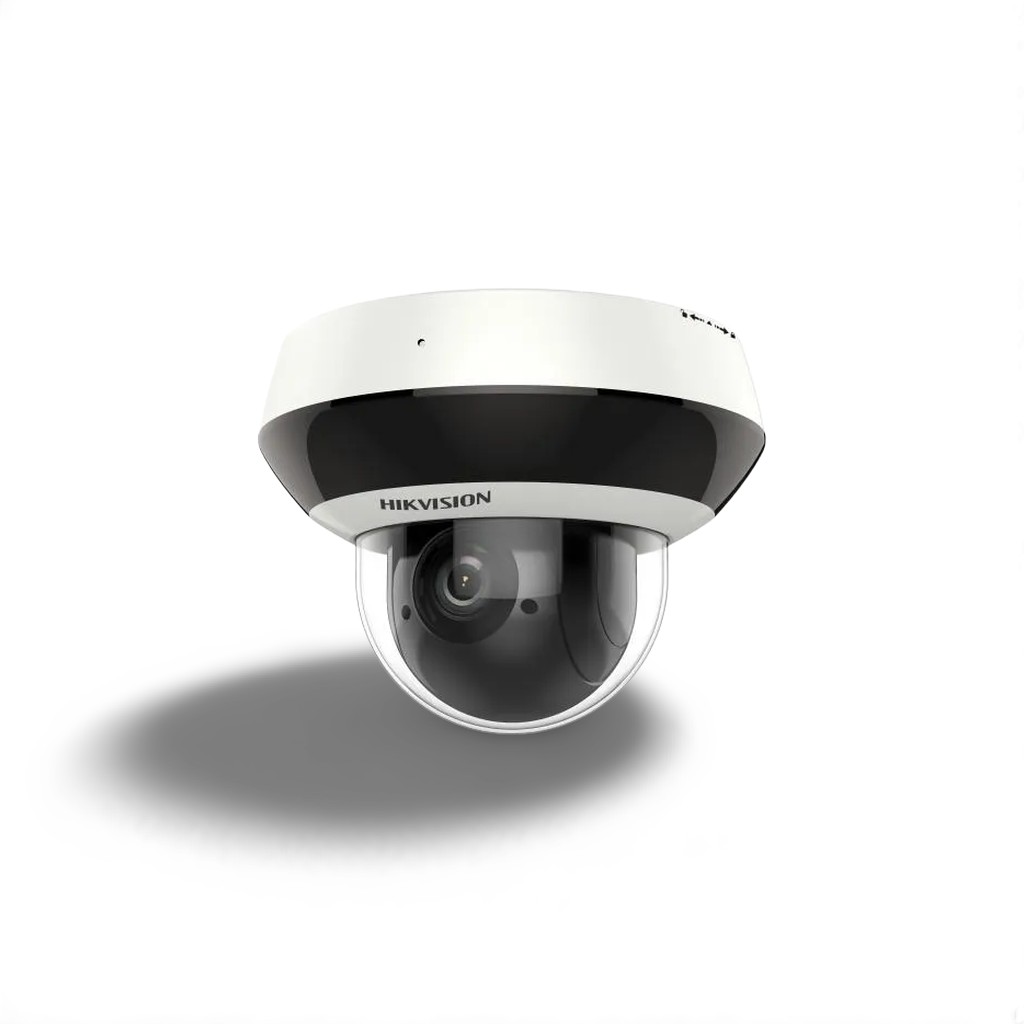

HIKVISION, 2-inch 4 MP 4x Zoom IR Mini PT Dome Network Camera | DS-2DE2A404IW-DE3

2 MP 4X Outdoor IR Mini Dome PTZ Network Camera

• High quality imaging with 2 MP resolution
• Excellent low-light performance via powered-by-DarkFighter technology
• Clear imaging against strong back lighting due to 120 dB WDR technology
• Pan and tilt ability enables camera to monitor zones of interest
• 4x optical zoom allows for closer viewing of subjects in expansive areas
• Up to 20 m IR range ensures safety at night
• Water and dust resistant (IP66) and vandal proof (IK10)

•

  • Camera
  • Image Sensor1/2.8″ Progressive Scan CMOS
  • Max. Resolution1920 × 1080
  • Min. IlluminationColor: 0.005 Lux @ (F1.5, AGC ON), B/W: 0.001 Lux @ (F1.5, AGC ON), 0 Lux with IR
  • Shutter Speed1/1 s to 1/30,000 s
  • Day & NightIR cut filter
  • Zoom4x optical, 16x digital
  • Slow ShutterYes

  • Lens
  • Focal Length2.8 to 12 mm, 4 × Optical
  • FOVHorizontal FOV 100.5° to 32.66°, vertical FOV 52.84° to 18.356°, diagonal FOV 120.26° to 37.5°
  • FocusAuto, semi-auto, manual
  • ApertureMax. F1.5
  • Zoom SpeedApprox. 2 s

  • Illuminator
  • Supplement Light TypeIR
  • Supplement Light RangeIR Distance: up to 20 m
  • Smart Supplement LightYes
  • IR Wavelength850 nm

  • PTZ
  • Movement Range (Pan)0° to 355°
  • Movement Range (Tilt)0° to 90°
  • Pan SpeedPan speed: configurable from 0.1° to 100°/s; preset speed: 100°/s
  • Tilt SpeedTilt speed: configurable from 0.1° to 100°/s, preset speed 100°/s
  • Proportional PanYes
  • Presets300
  • Preset FreezingYes
  • Park ActionPreset
  • 3D PositioningYes
  • PTZ Status DisplayYes
  • Scheduled TaskPreset, dome reboot, dome adjust
  • Power-off MemoryYes

  • Video
  • Main Stream

    50 Hz: 25 fps (1920 × 1080, 1280 × 960, 1280 × 720);

    60 Hz: 30 fps (1920 × 1080, 1280 × 960, 1280 × 720)

  • Sub-Stream

    50 Hz: 25 fps (704 × 576, 640 × 480, 352 × 288);

    60 Hz: 30 fps (704 × 480, 640 × 480, 352 × 240)

  • Third Stream

    50 Hz: 25 fps (704 × 576, 640 × 480, 352 × 288);

    60 Hz: 30 fps (704 × 480, 640 × 480, 352 × 240)

  • Video Compression

    Main stream: H.265+/H.265/H.264+/H.264

    Sub-stream: H.265/H.264/MJPEG

    Third stream: H.265/H.264/MJPEG

  • H.264 TypeBaseline Profile/Main Profile/High Profile
  • H.265 TypeMain profile
  • Scalable Video Coding (SVC)H.264 and H.265 encoding
  • Region of Interest (ROI)8 fixed regions for each stream

  • Audio
  • Audio CompressionG.711alaw/G.711ulaw/G.722.1/G.726/MP2L2/PCM/AAC
  • Audio Bit Rate64Kbps(G.711)/16Kbps(G.722.1)/16Kbps(G.726)/32-192Kbps(MP2L2)/32Kbps(PCM)/16-64Kbps(AAC)
  • Audio Sampling RateAAC: 16 kHz, 32 kHz, 48 kHz; MP2L2: 16 kHz, 32 kHz, 48 kHz; PCM: 8 kHz, 16 kHz, 32 kHz, 64 kHz
  • Environment Noise FilteringYes

  • Network
  • ProtocolsIPv4/IPv6, HTTP, HTTPS, 802.1x, Qos, FTP, SMTP, UPnP, SNMP, DNS, DDNS, NTP, RTSP, RTCP, RTP, TCP/IP, UDP, IGMP, ICMP, DHCP, PPPoE, Bonjour
  • Simultaneous Live ViewUp to 20 channels
  • APIOpen Network Video Interface (Version 18.12, Profile S, Profile G, Profile T), ISAPI, SDK, ISUP
  • User/HostUp to 32 users; 3 user levels: administrator, operator, and user
  • SecurityPassword protection, complicated password, HTTPS encryption, 802.1X authentication (EAP-TLS, EAP-LEAP, EAP-MD5), watermark, IP address filter, basic and digest authentication for HTTP/HTTPS, control timeout settings, security audit log, TLS 1.2, host authentication (MAC address)
  • Network StorageNAS (NFS, SMB/CIFS), auto network replenishment (ANR)
  • ClientiVMS-4200, HikCentral Pro, Hik-Connect
  • Web BrowserIE 10-11, Chrome 57+, Firefox 52+, Safari 11+

  • Image
  • Image Parameters SwitchYes
  • Image SettingsSaturation, brightness, contrast, sharpness, gain, and white balance adjustable by client software or web browser
  • Day/Night SwitchDay, Night, Auto, Schedule
  • Wide Dynamic Range (WDR)120 dB
  • SNR＞52dB
  • DefogDigital Defog
  • Image EnhancementBLC, HLC, 3D DNR
  • Privacy Mask24 programmable polygon privacy masks, mask color or mosaic configurable
  • Regional FocusYes
  • Regional ExposureYes

  • Interface
  • Ethernet Interface1 RJ45 10M/100M self-adaptive Ethernet port
  • On-board StorageBuilt-in memory card slot, support microSD/SDHC/SDXC card, up to 256 GB
  • Built-in Microphone1 built-in microphone, picking up sounds in the radius up to 5 meters
  • Audio

    1 input (line in), max. input amplitude: 2-2.4 vpp, input impedance: 1 KΩ ± 10%;

    1 output (line out), line level, output impedance: 600 Ω

  • ResetYes
  • Power Output12 VDC, max. 60 mA

  • Event
  • Basic EventMotion detection, video tampering alarm, exception
  • Smart EventFace detection, line crossing detection, intrusion detection, region entrance detection, region exiting detection, unattended baggage detection, object removal detection, audio exception detection
  • LinkageUpload to FTP/NAS/memory card, notify surveillance center, send email, trigger recording, and PTZ actions (such as preset)

  • General
  • Power12 VDC, Max. 9.2 W; PoE (802.3af)
  • DimensionØ 130.7 mm ×101.7 mm (Ø 5.15″ × 4.00″)
  • WeightApprox. 530 g (1.17 lb.)
  • Operating Condition-20 °C to 60 °C (-4 °F to 140 °F). Humidity 90% or less (non-condensing)
  • General FunctionMirror, password protection

  • Approval
  • ProtectionIP66 (IEC 60529-2013), IK10, TVS 4000V lightning protection, surge protection and voltage transient protection
